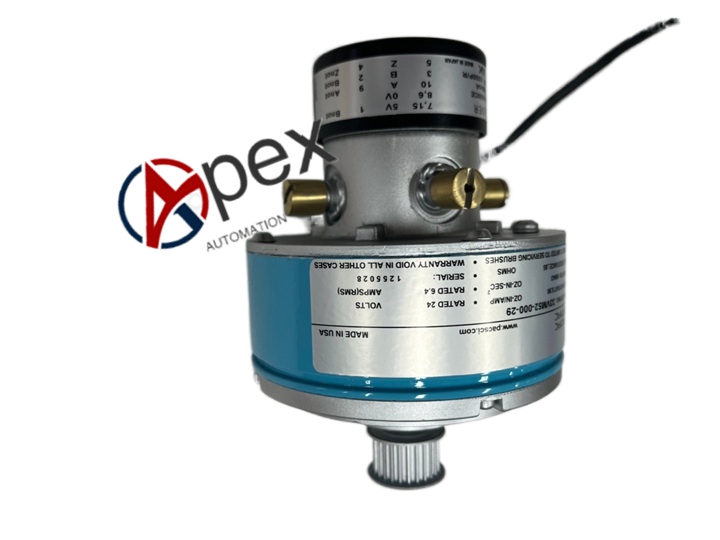

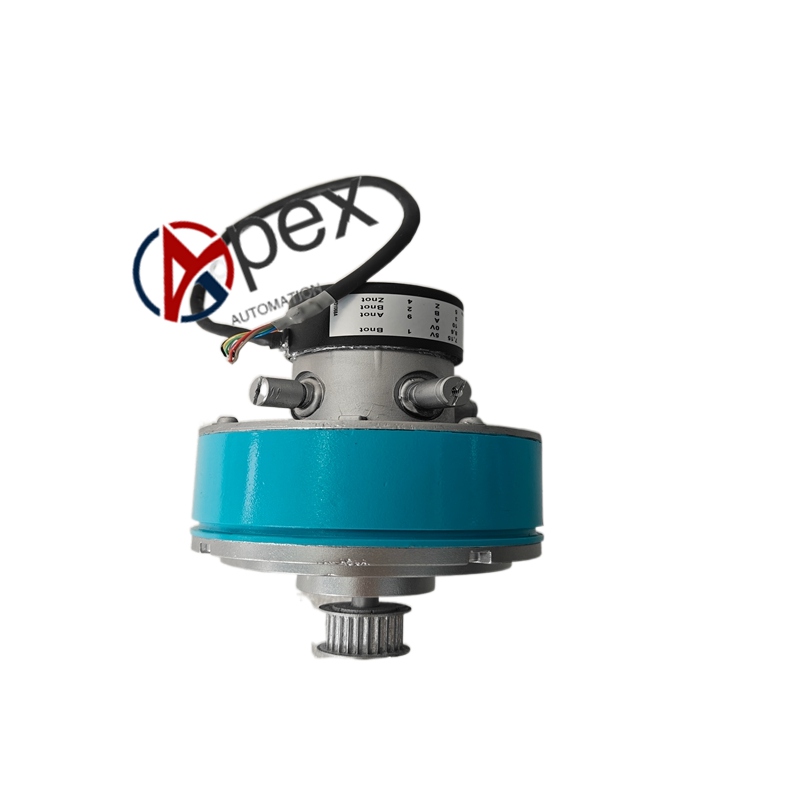

Pacific Scientific 33VM52-000-29 DC Servo Motor with LDA-196-1000CE Encoder

Technical Specifications DC power input, built-in LDA-196-1000CE incremental encoder, high resolution position feedback, flange mounting.

Functional Features Smooth speed regulation, high torque output, precise position feedback, support closed-loop motion control.

Application Scenarios Semiconductor equipment, packaging machinery, printing machine, automated precision positioning platform.

Performance Parameters Low speed ripple, high positioning repeatability, strong overload capacity, stable continuous operation.

Material Composition Cast aluminum housing, silicon steel stator, permanent magnet rotor, stainless steel shaft, metal encoder housing.

Structural Characteristics Cylindrical motor body, rear end mounted encoder, standard flange mounting, power and encoder connectors.

Working Principle DC motor converts electrical energy into mechanical rotation. The LDA-196-1000CE encoder measures rotation angle and sends position signal back to servo drive to form closed-loop control.

Installation Requirements Fix motor by flange, align coupling coaxiality, use shielded cable for encoder and power wiring, reliable grounding.

Usage Notes Prevent dust and moisture entering encoder. Do not apply excessive radial force on motor shaft.
