Technical Specifications Shielded multi-channel screw terminals, low noise design, compatible with high-speed SCXI analog modules.
Functional Features Low noise signal wiring, shield connection, convenient field termination, reduce signal interference.
Application Scenarios Precision sensor measurement, low level signal acquisition, vibration test, high speed data acquisition system.
Performance Parameters Low crosstalk between channels, good noise suppression, stable signal transmission.
Material Composition Flame retardant insulating plastic, copper alloy terminals, metal shielding shell, insulated wire separator.

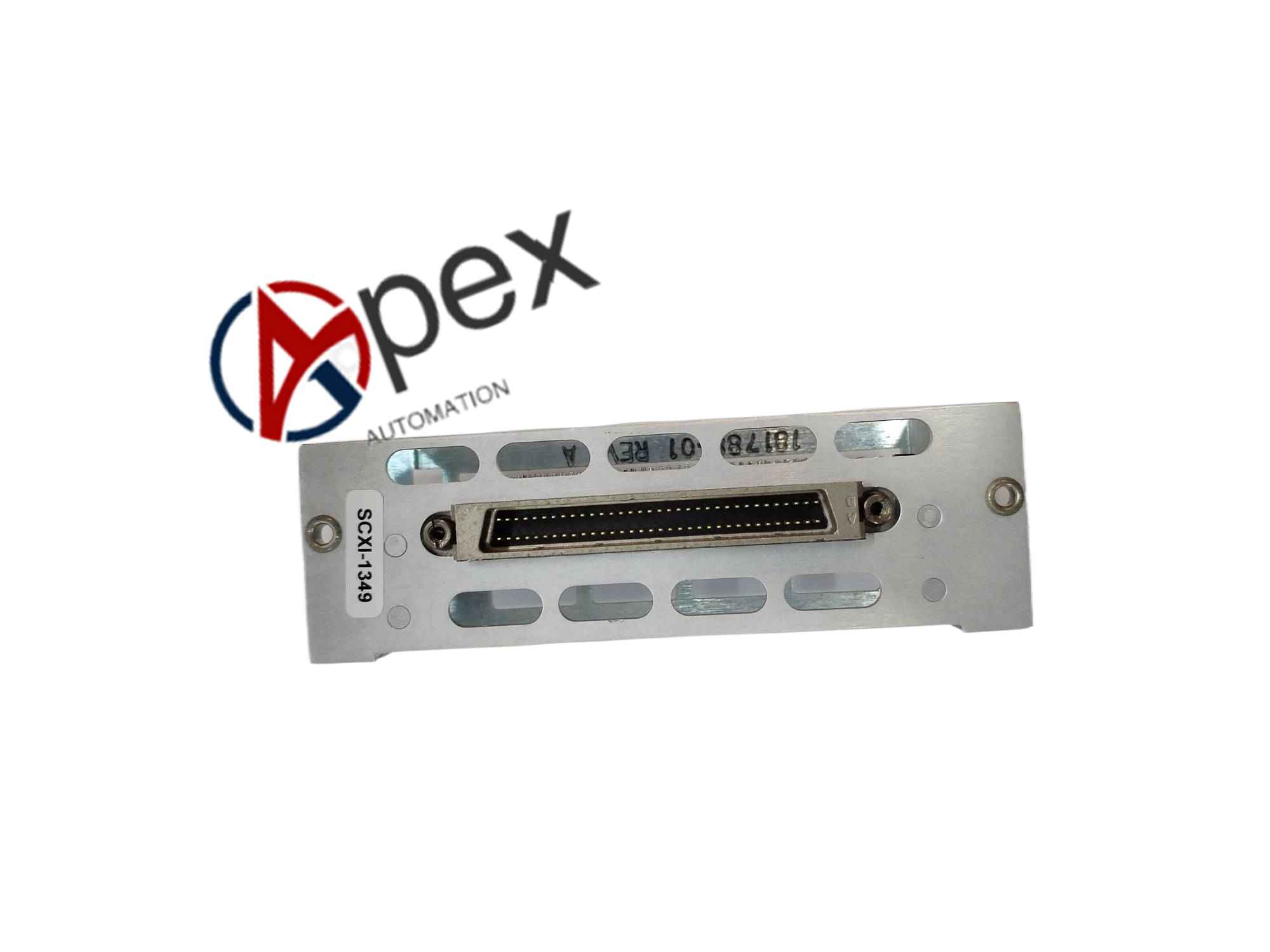

Structural Characteristics Shielded terminal block, front screw terminals, rear connector for SCXI module.
Working Principle Transmits weak high-speed analog signals from field sensors to SCXI module, reduces external electromagnetic interference through shielding structure.
Installation Requirements Install on matched SCXI module, connect shield cable to shield terminal, tighten wire screws.
Usage Notes Use shielded twisted pair cables. Keep signal cables away from high power cables to reduce noise.
