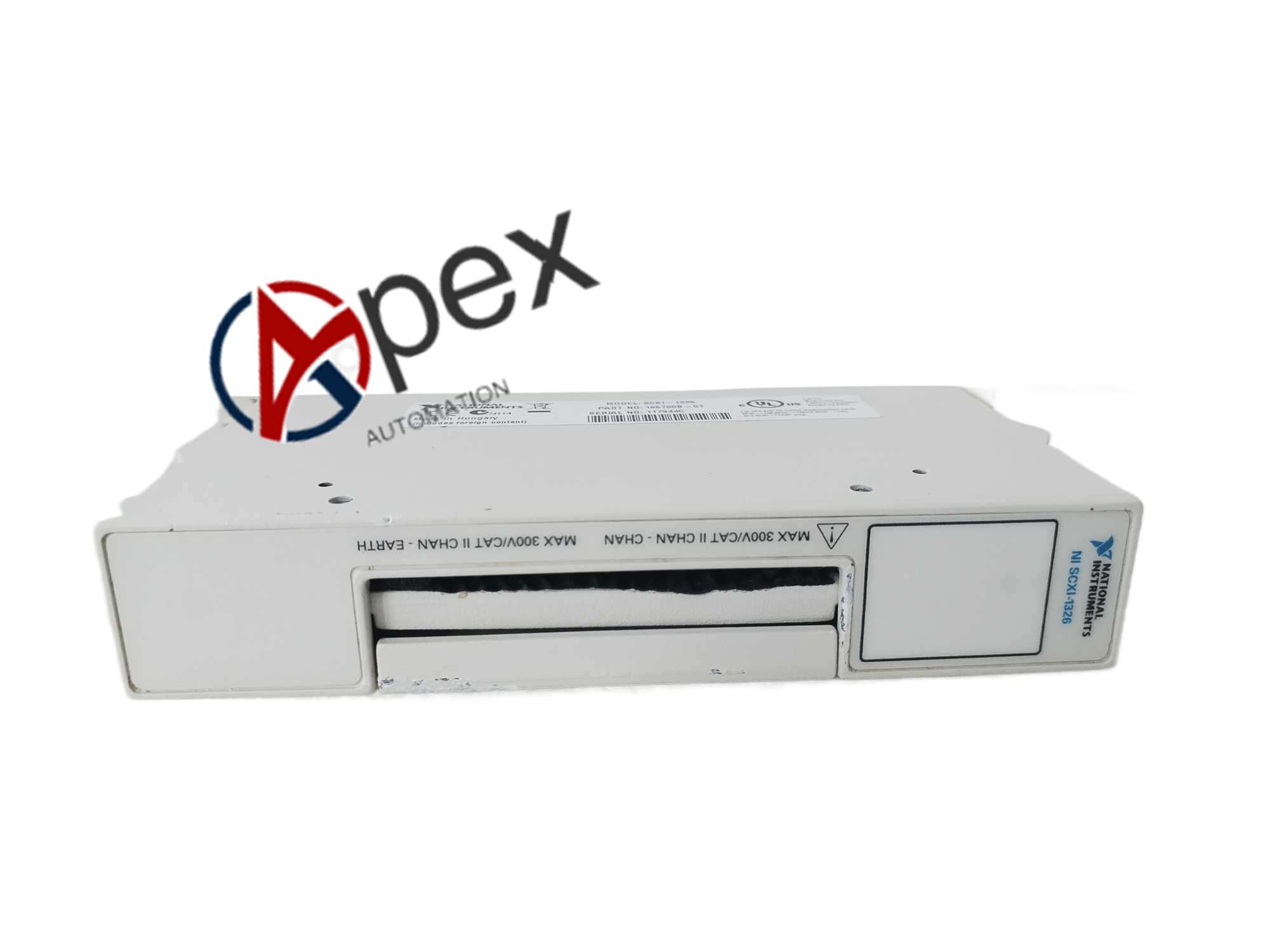

Technical Specifications High voltage rated screw terminals, multi-channel, compatible with SCXI high voltage input modules, shield terminal.
Functional Features High voltage signal termination, field wiring, shielding connection, overvoltage insulation protection.
Application Scenarios High voltage signal measurement, industrial power monitoring, high voltage sensor signal acquisition.
Performance Parameters High insulation strength, stable wiring connection, high voltage safety rating.
Material Composition High insulation plastic housing, copper alloy screw terminals, insulating separator, metal shielding.

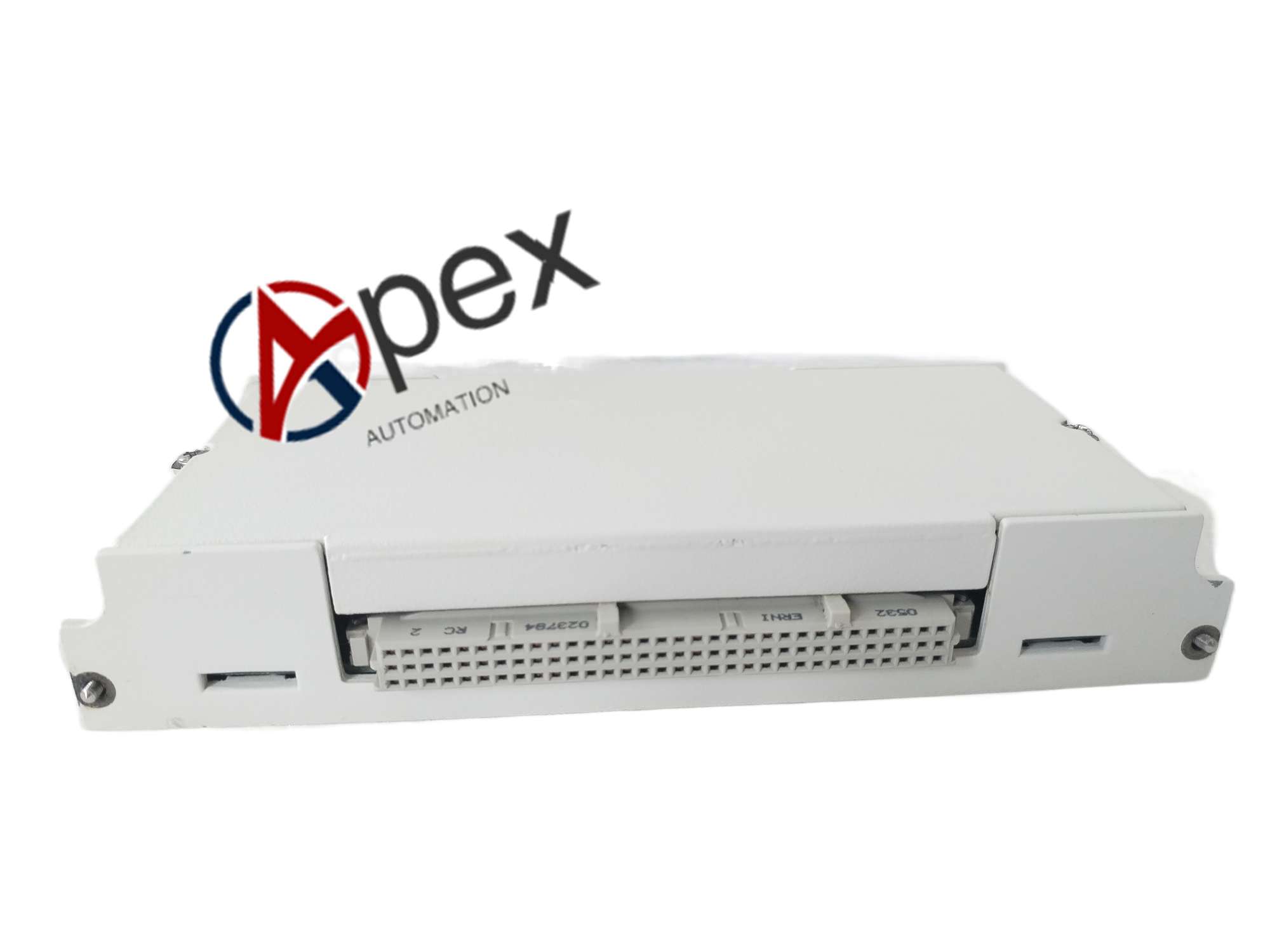

Structural Characteristics Terminal block assembly, multi-channel separated terminals, mounting structure for SCXI module front.
Working Principle Provides insulated wiring terminals for high voltage signals, transfers high voltage analog signals to SCXI measurement module safely.
Installation Requirements Mount on matched SCXI module, fix wires tightly, ensure insulation between channels, connect protective ground.
Usage Notes Strictly follow high voltage operation safety rules. Do not touch terminals when circuit is energized.
