Technical Specifications Screw terminal type, compatible with SCXI analog input modules, multi-channel wiring terminals, shield connection terminal.
Functional Features Field signal wiring, convenient screw connection, signal shielding connection, wire termination.
Application Scenarios Sensor wiring for SCXI analog input modules, laboratory measurement, industrial data acquisition system.
Performance Parameters Stable wire connection, good shielding performance, support long-term wiring use.
Material Composition Plastic housing, copper alloy screw terminals, metal shielding plate, insulation material.

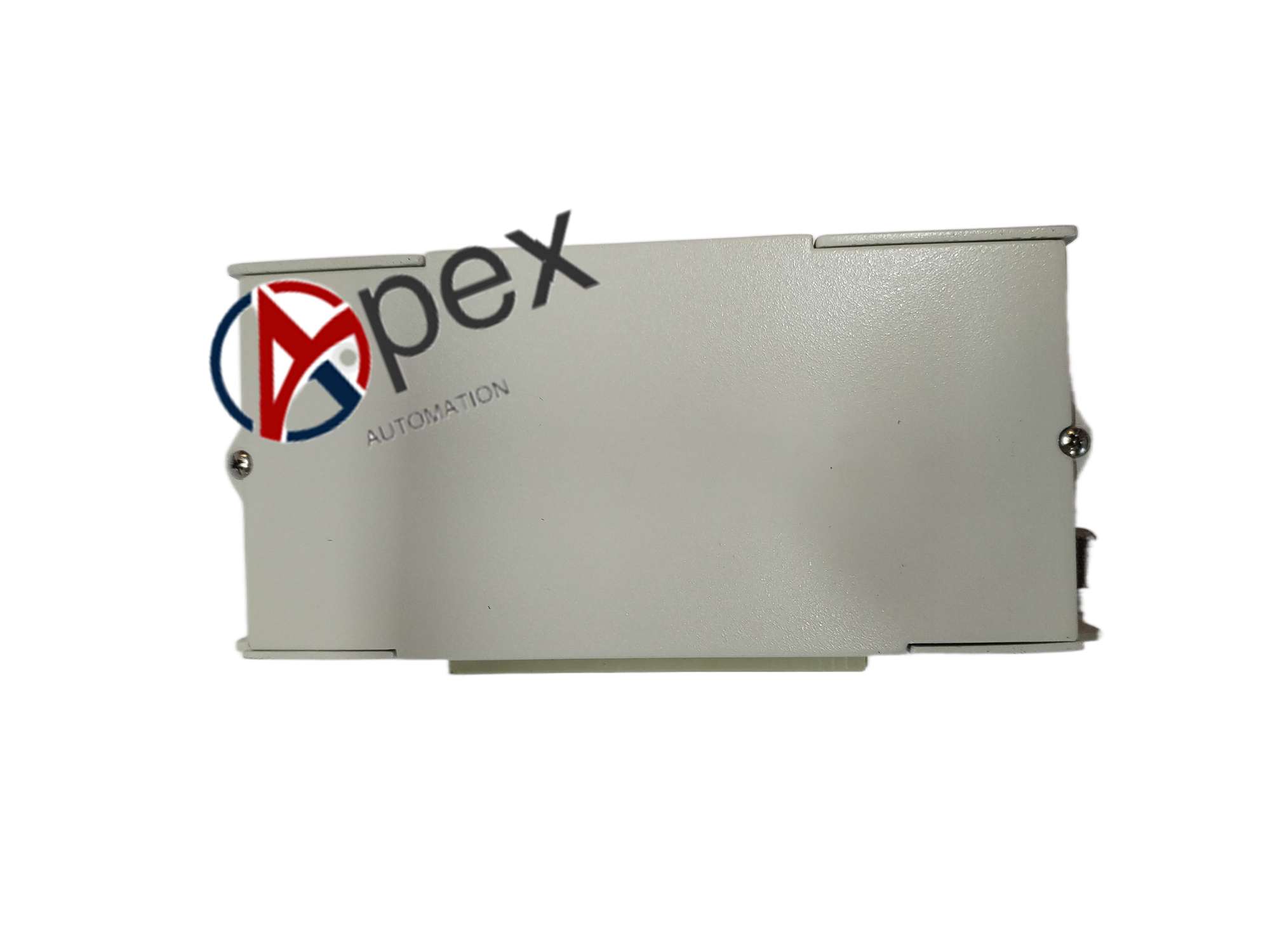

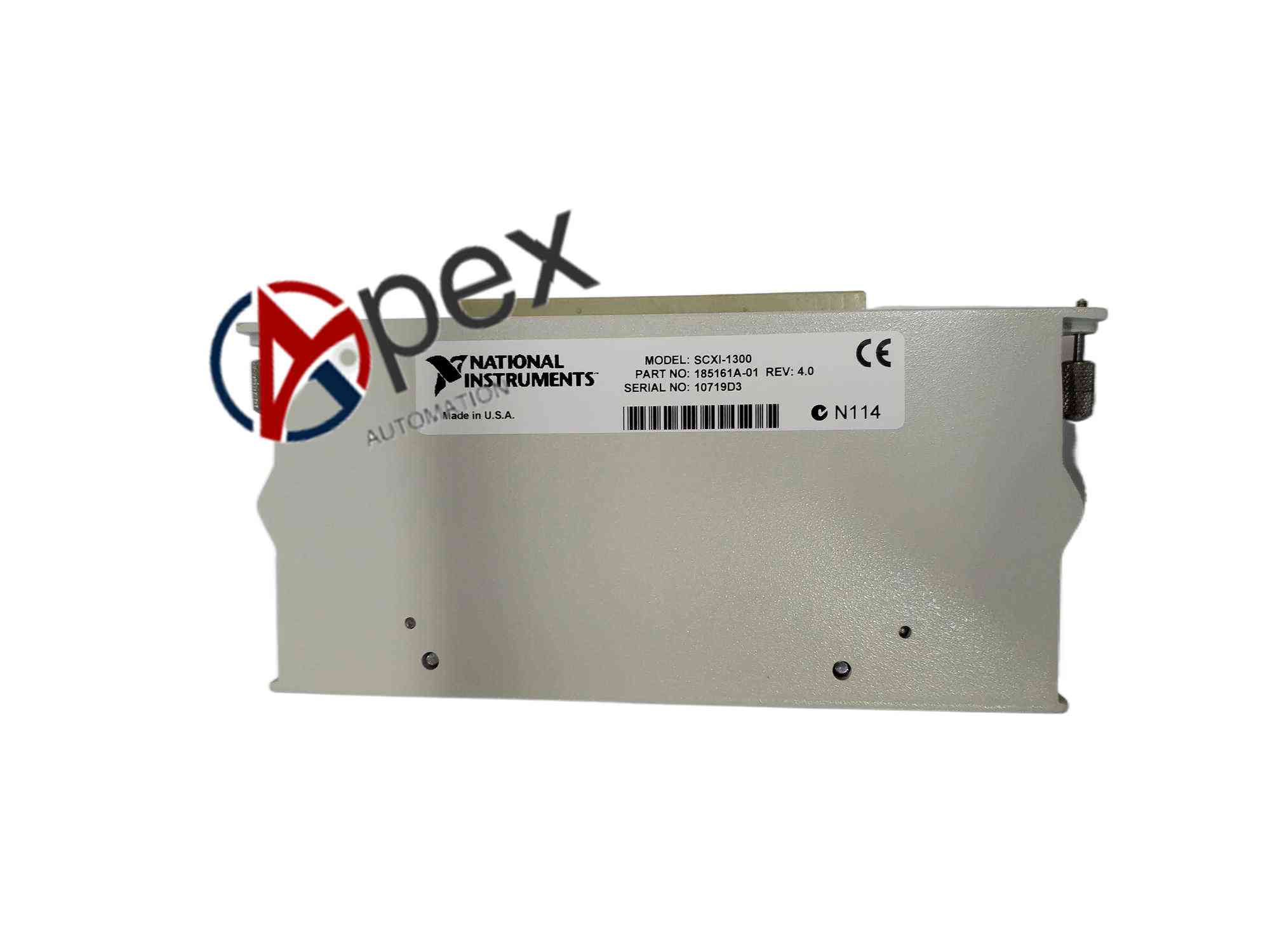

Structural Characteristics Front panel terminal block, multi-channel screw terminals, fixed mounting structure, cable connection port.
Working Principle Provides physical wiring interface between field sensors and SCXI module, transmits analog signals to module through internal wiring.
Installation Requirements Install on front of SCXI analog module, strip wire ends, fix wires with screw terminals, connect shield wire.
Usage Notes Tighten screws properly to prevent loose contact. Avoid short circuit between adjacent channels.
