Technical Specifications 32 isolated digital output channels, relay isolation, compatible with SCXI bus, external load power supply.
Functional Features Isolated digital signal output, relay on-off control, load switching, channel status feedback.
Application Scenarios Industrial relay control, test fixture switching, equipment on-off control, automated test system.
Performance Parameters High isolation voltage, reliable relay action, long service life, overcurrent protection for each channel.
Material Composition Plastic module housing, fiberglass PCB, signal relays, copper alloy terminal connectors, metal shielding.

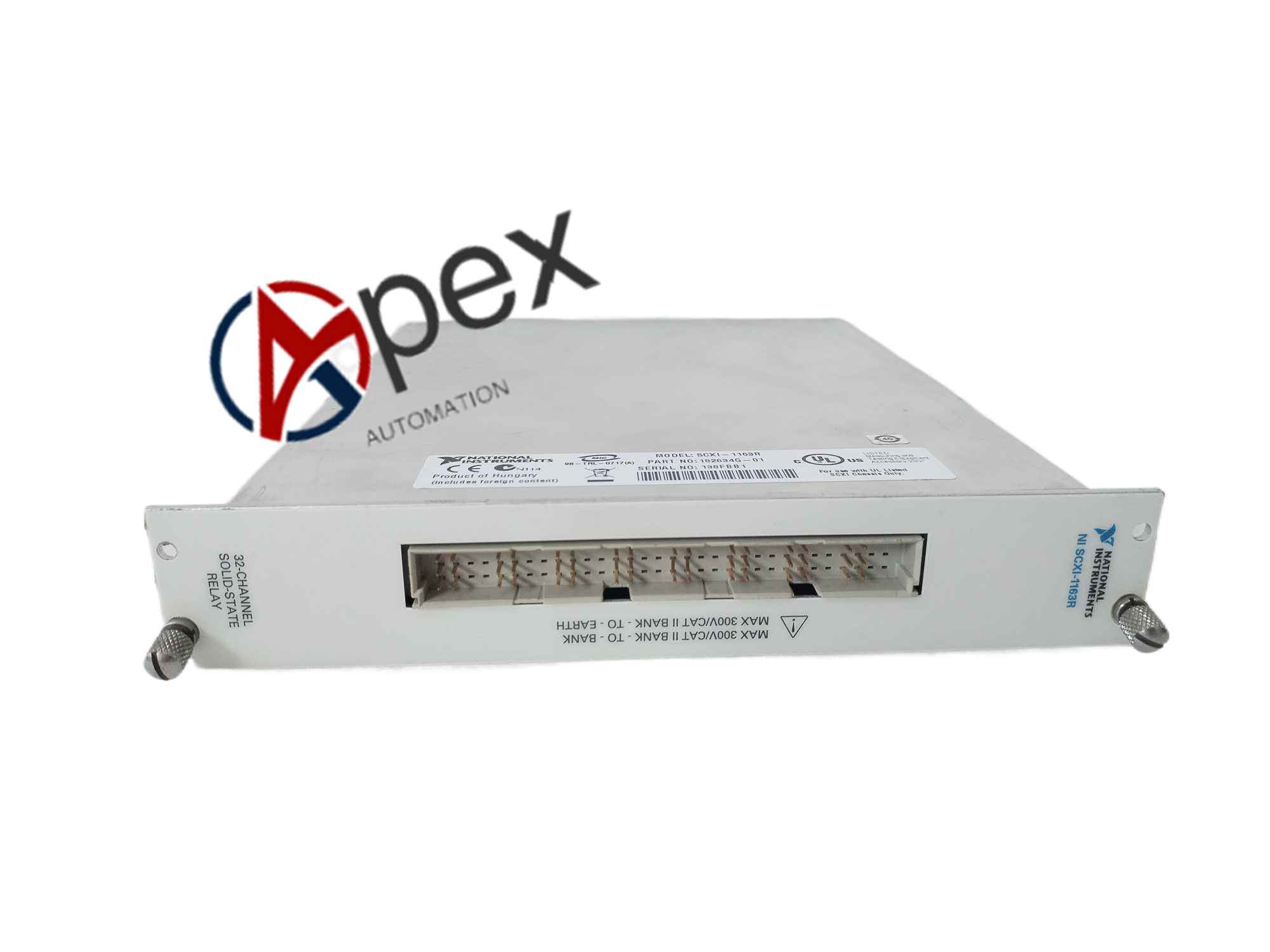

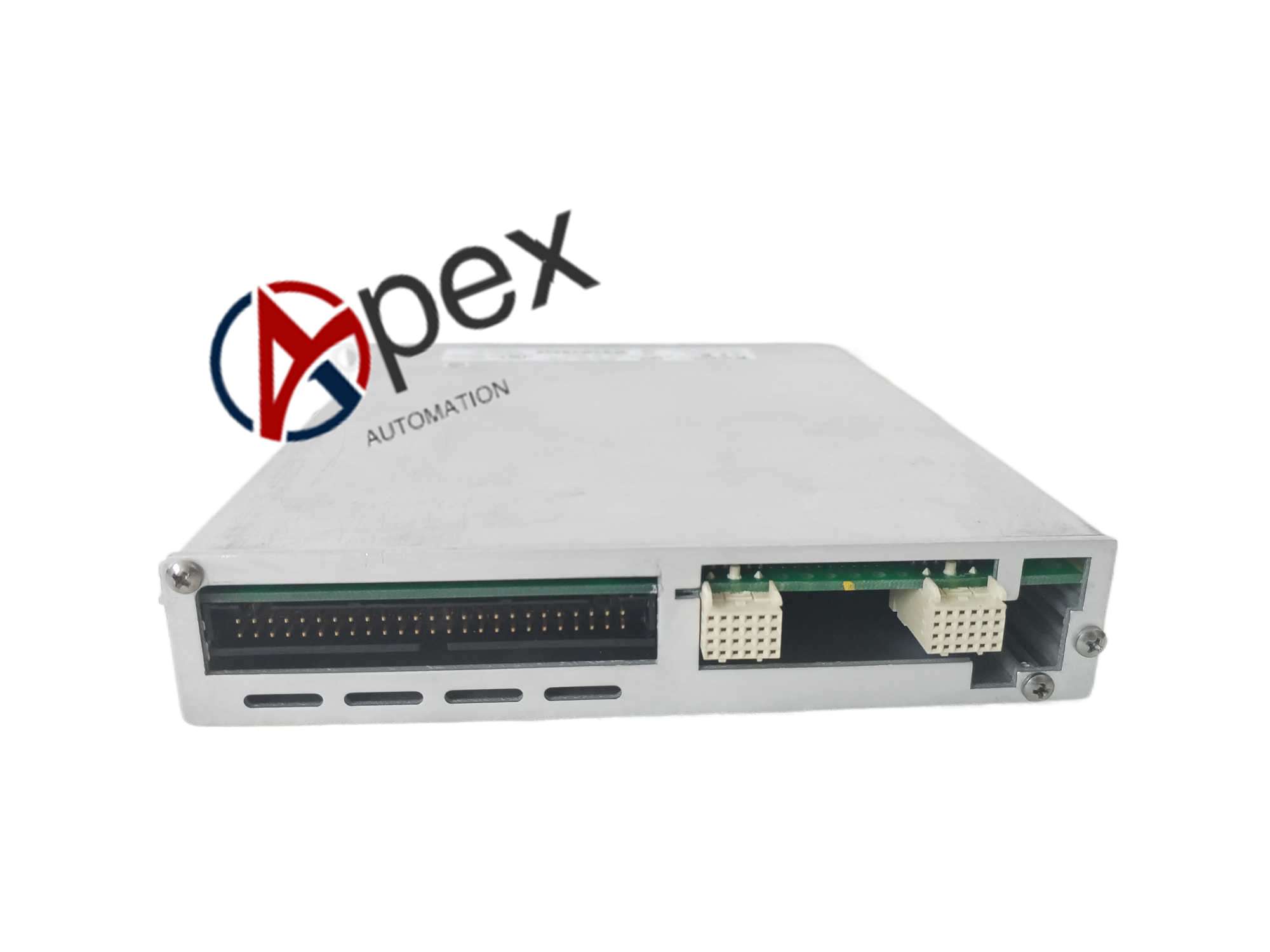

Structural Characteristics SCXI plug-in module, front wiring terminal block, rear gold finger for chassis backplane connection.
Working Principle Receives digital commands from DAQ system, drives internal relays to switch external load circuits, realizes isolated on-off control.
Installation Requirements Install into SCXI chassis, connect external load power and field wiring to terminal block, ensure grounding.
Usage Notes Do not exceed rated load voltage and current of relay. Avoid frequent rapid switching to extend relay life.
