Technical Specifications 32 differential voltage input channels, high input impedance, programmable gain, compatible with SCXI chassis bus.
Functional Features Multi-channel analog voltage collection, signal amplification, noise filtering, channel multiplexing.
Application Scenarios Industrial voltage monitoring, strain measurement, temperature transmitter signal acquisition, laboratory multi-point test.
Performance Parameters High input impedance, low measurement error, high channel isolation, stable signal sampling.
Material Composition Flame retardant plastic housing, fiberglass circuit board, copper alloy terminal block, metal shielding plate.

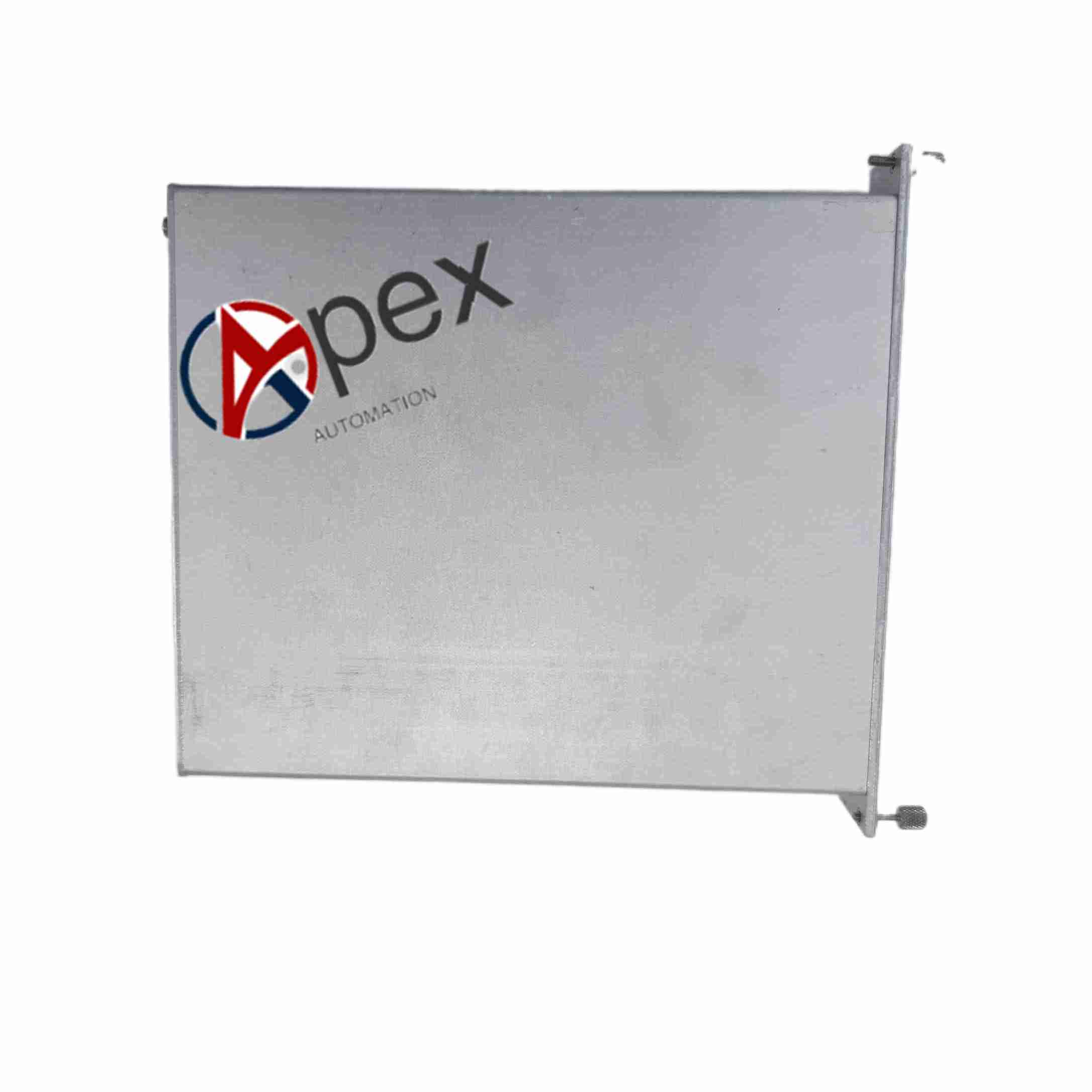

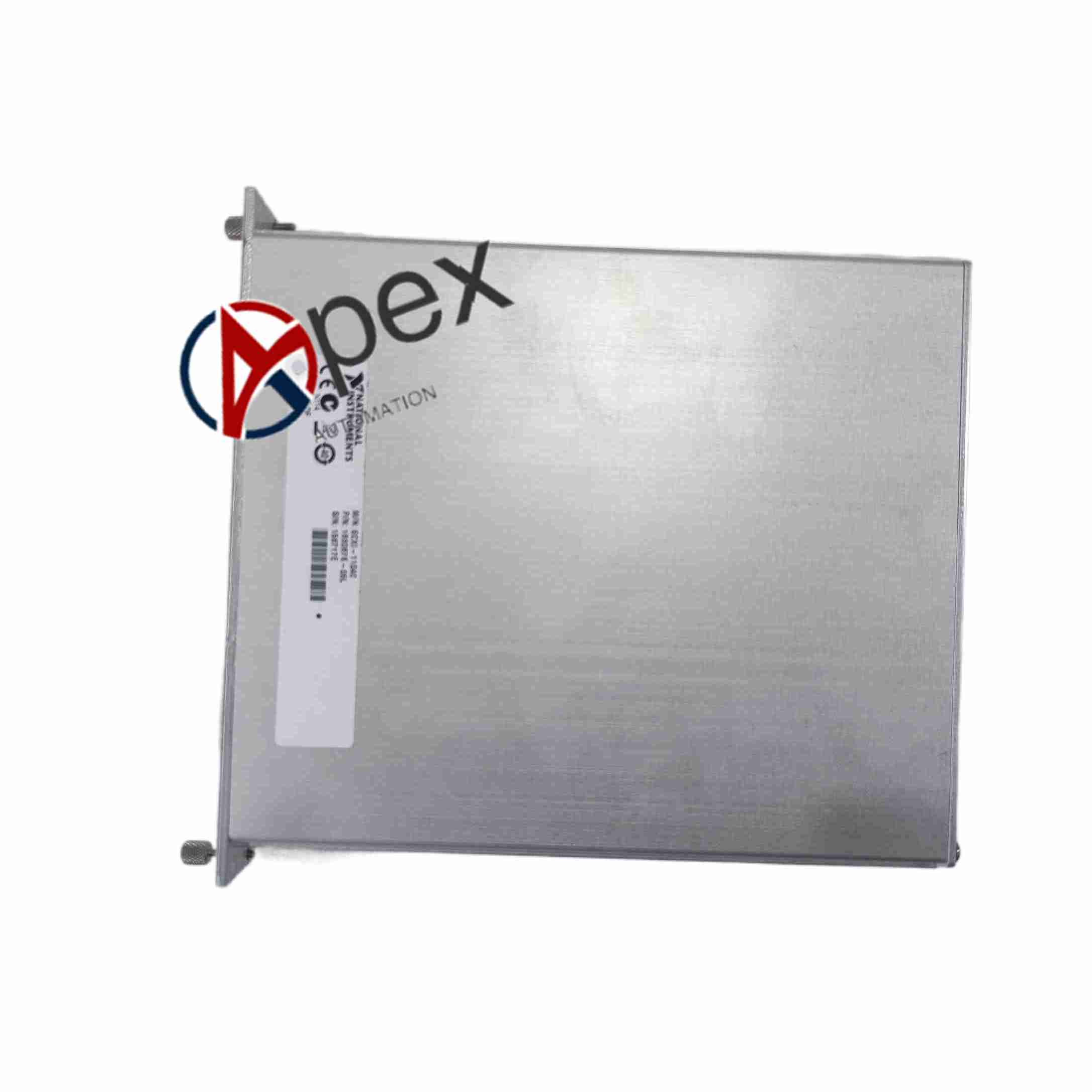

Structural Characteristics Plug-in SCXI module structure, front terminal block for field wiring, back gold finger for chassis backplane connection.
Working Principle Collects analog voltage signals from field sensors, amplifies and filters signals, multiplexes multi-channel data and transmits to DAQ system via backplane.
Installation Requirements Insert module into SCXI chassis slot, lock module, connect sensor wires to terminal block, use shielded cable.
Usage Notes Do not exceed maximum input voltage range. Separate low-level signal wires from power cables.
