Technical Specifications 4 module slots, built-in power supply, 110/220V AC input, backplane bus for module communication, metal rack housing.
Functional Features Provides power and bus communication for SCXI modules, signal conditioning, noise suppression, multi-channel signal switching.
Application Scenarios Industrial data acquisition, laboratory measurement, sensor signal collection, vibration and temperature testing.
Performance Parameters Stable internal power output, good electromagnetic shielding, support continuous long-time measurement.
Material Composition Steel metal chassis, aluminum front panel, fiberglass backplane, plastic module locking mechanism.

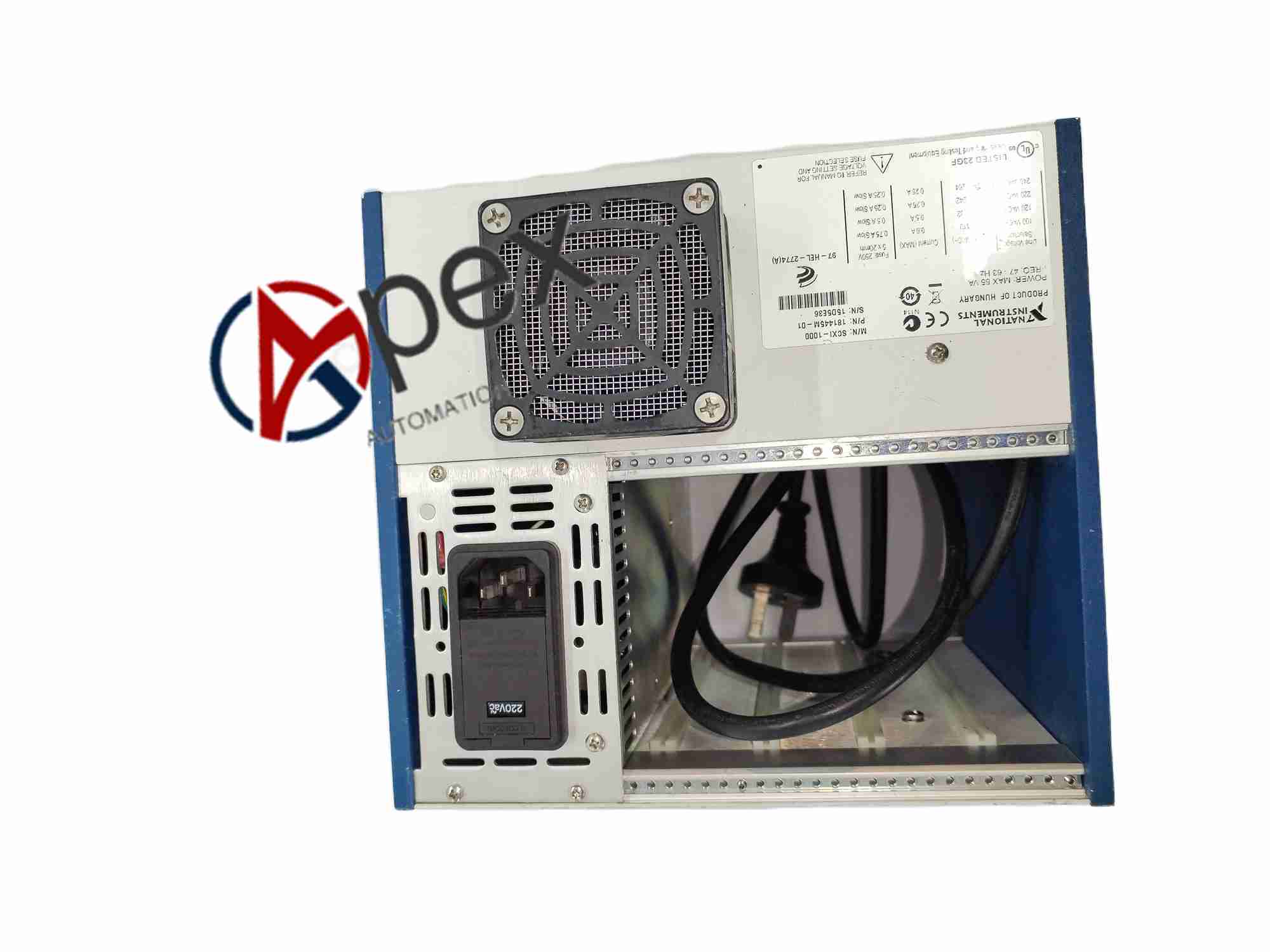

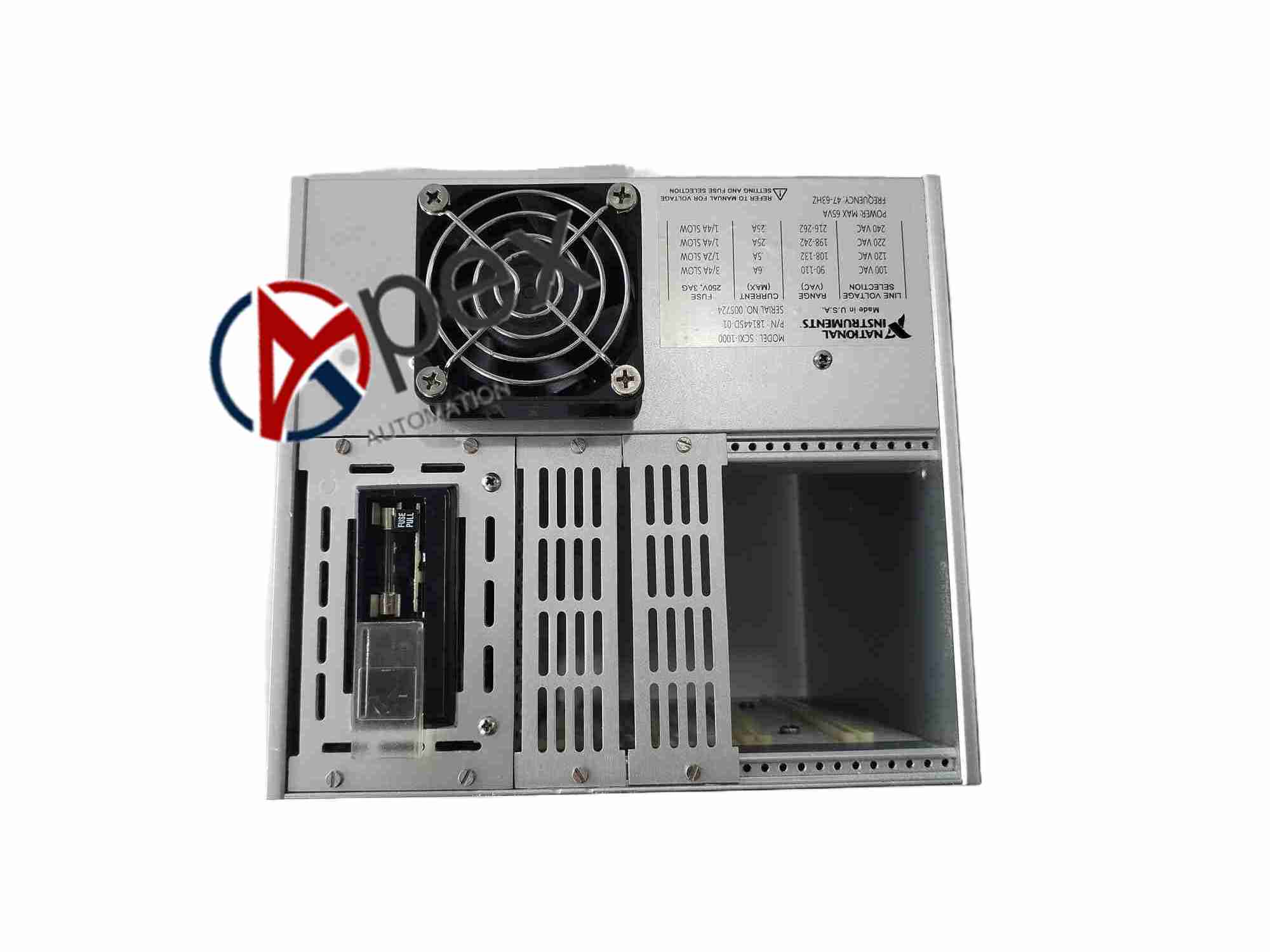

Structural Characteristics Desktop or rack mount metal cabinet, 4 front loading module slots, rear power inlet and communication port.
Working Principle The chassis supplies power and bus communication channel to each SCXI module. It transmits conditioned sensor signals to NI DAQ card through bus.
Installation Requirements Place on stable platform or mount on rack, connect AC power, install SCXI modules and communication cable.
Usage Notes Do not open chassis cover during power on. Keep ventilation openings unblocked to avoid overheating.
