Technical Specifications 16 single-ended / 8 differential analog input; 16-bit ADC; 500 kS/s; 2 analog output; 24 digital I/O; 2 counter/timers; PCIe bus; Operating temperature 0~55°C.
Functional Features High speed multi-channel analog acquisition. Analog waveform generation. Digital I/O for logic control. Counter/timer for pulse and encoder measurement. Hardware trigger and synchronization.
Application Scenarios Automated product test, laboratory measurement, sensor data acquisition, precision control and validation test systems.
Performance Parameters 16-bit resolution; 500 kS/s sampling rate; Low latency hardware triggering; High speed PCIe data transfer.

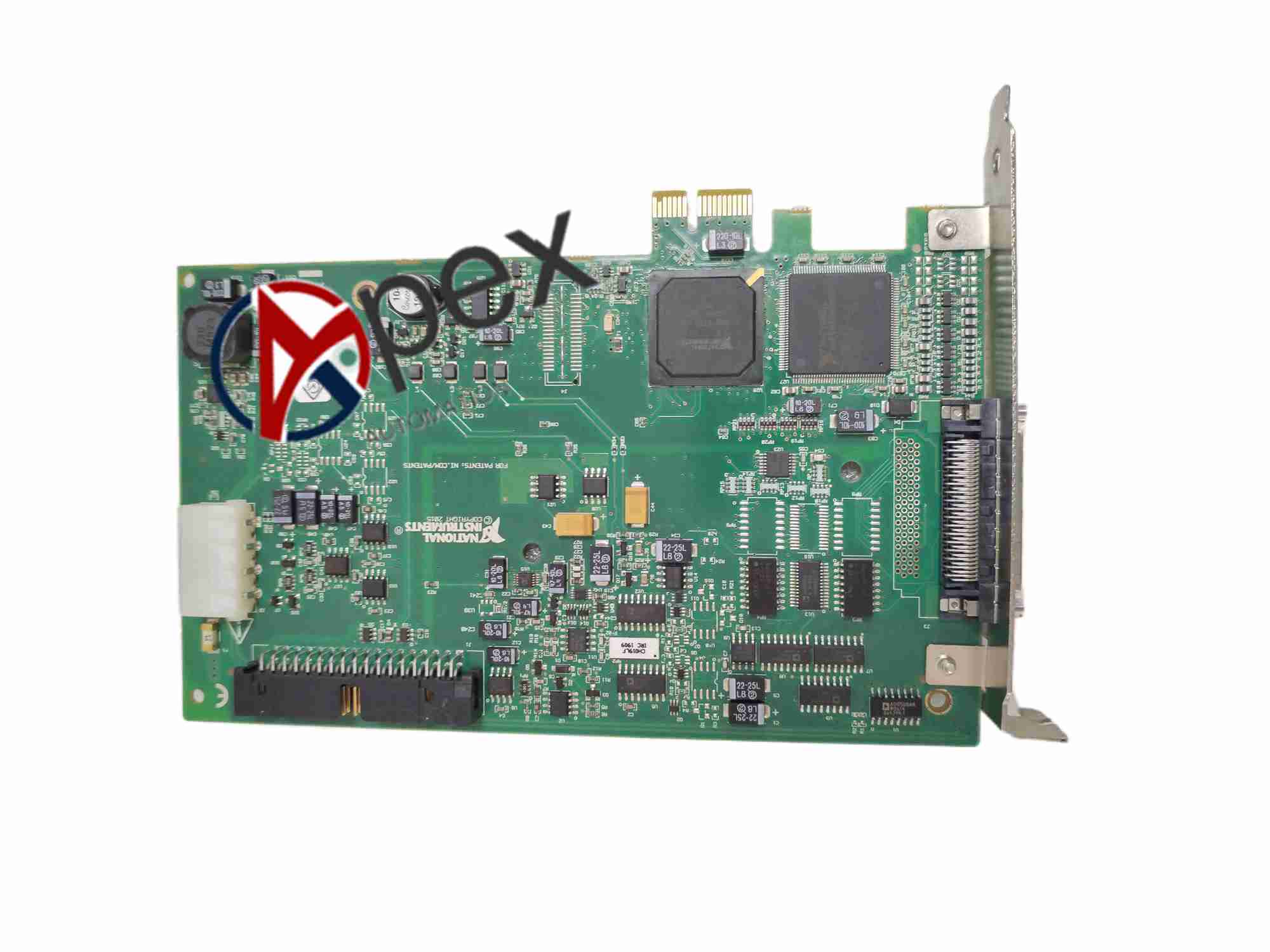

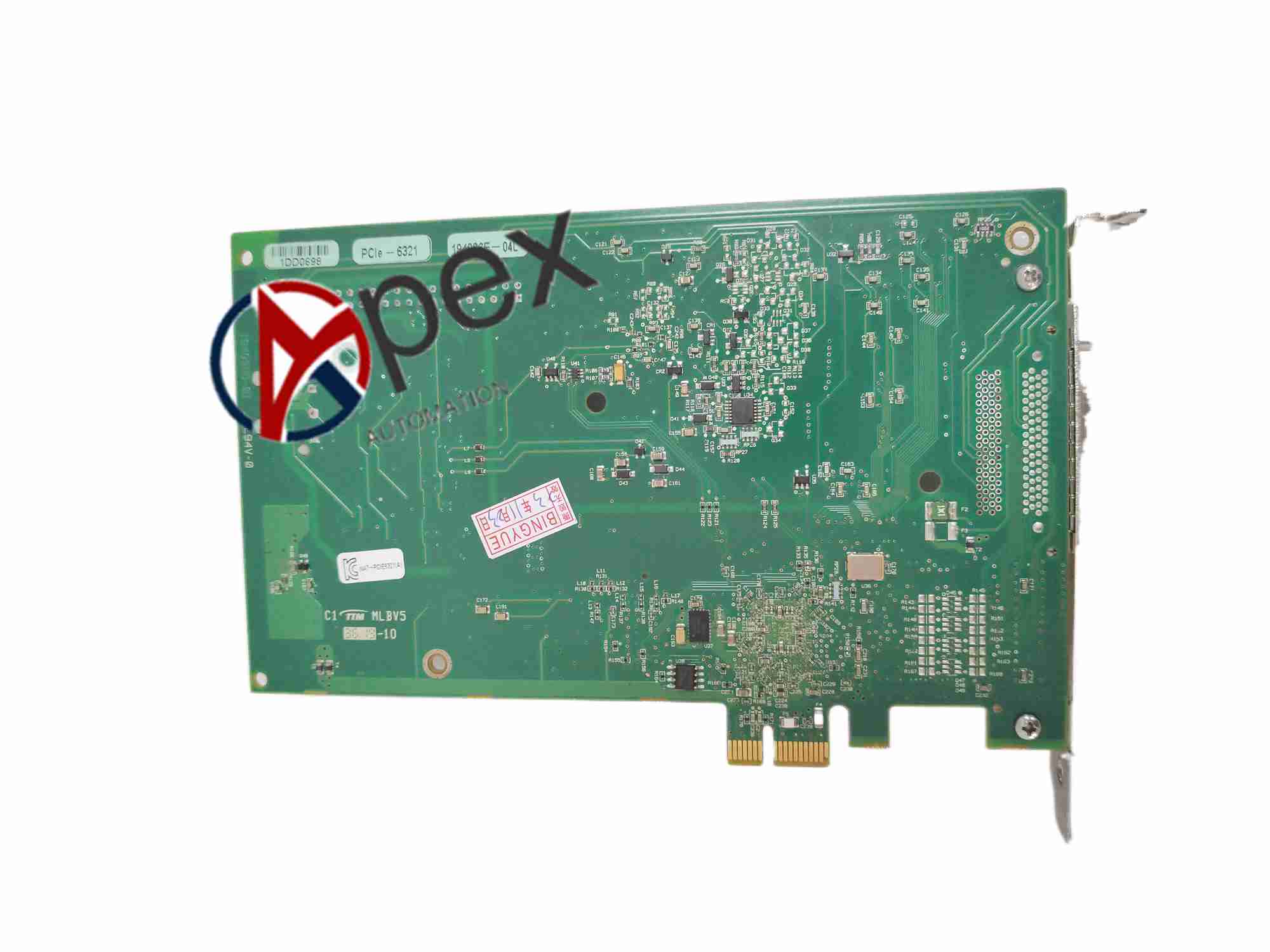

Structural Characteristics PCI Express board, front panel terminal connector, status LED indicators.
Working Principle The board acquires analog input signals through ADC, generates analog output via DAC, reads and writes digital logic signals, and transfers data to PC memory over PCI Express bus.
Installation Requirements Power off PC, insert PCIe card into PCIe slot. Install NI DAQmx driver. Connect signal wiring to terminal connector.
Usage Notes Do not exceed input voltage range. Use differential input mode for low-level noisy signals. Configure trigger and timing in DAQmx software.
