Technical Specifications 4 analog input channels, independent ADC per channel; 12-bit resolution; 5 MS/s per channel sampling rate; 2 analog output; 8 digital I/O; PCI bus; Operating temperature 0~55°C.
Functional Features Simultaneous sampling on all analog input channels. High speed waveform capture. Analog output generation. Digital I/O for trigger and logic control.
Application Scenarios High speed transient capture, power electronics test, ultrasonic measurement, multi-channel synchronous vibration test.
Performance Parameters Independent ADC for each channel; No phase skew between channels; High sampling speed for fast transient signals.

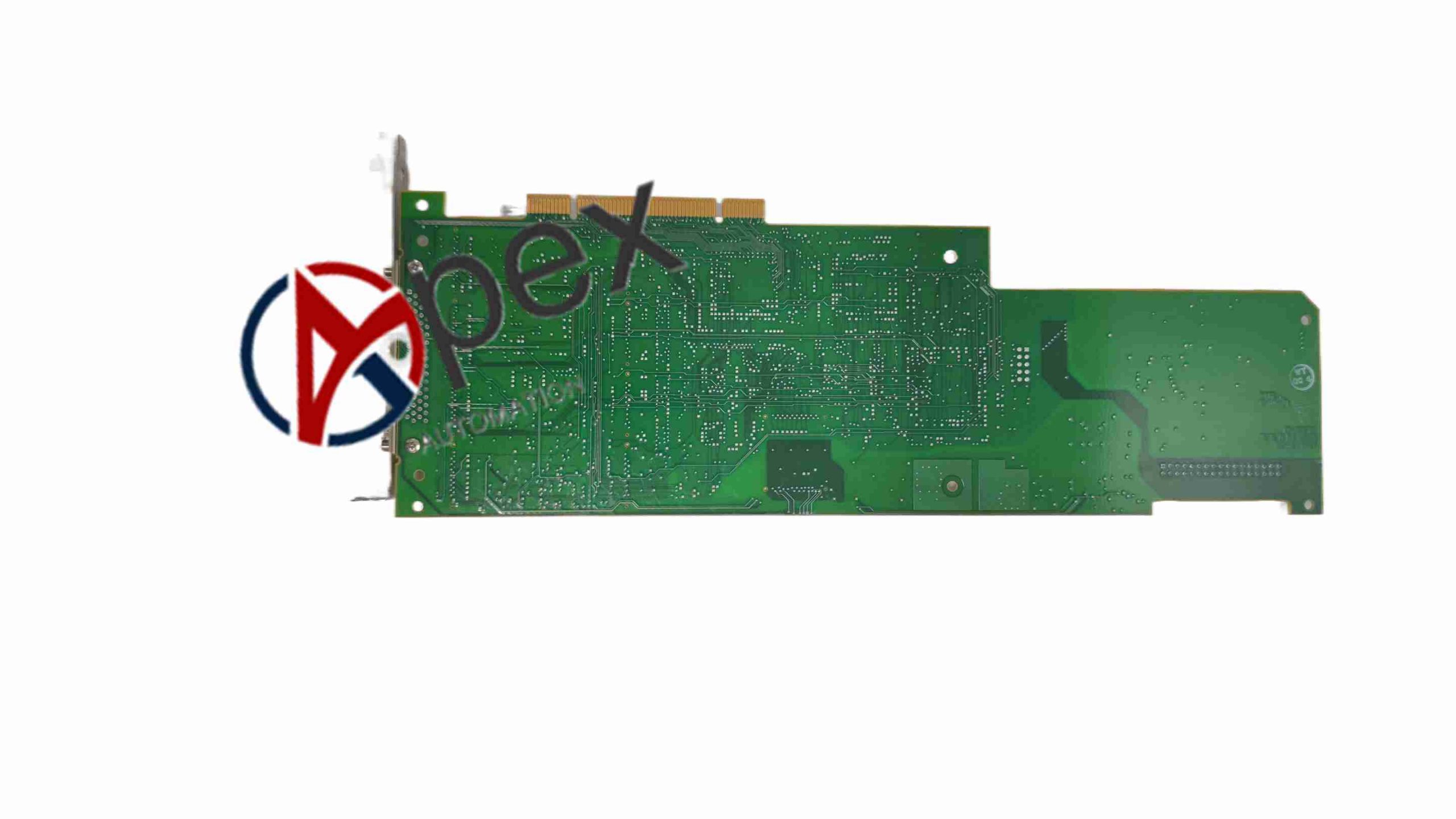

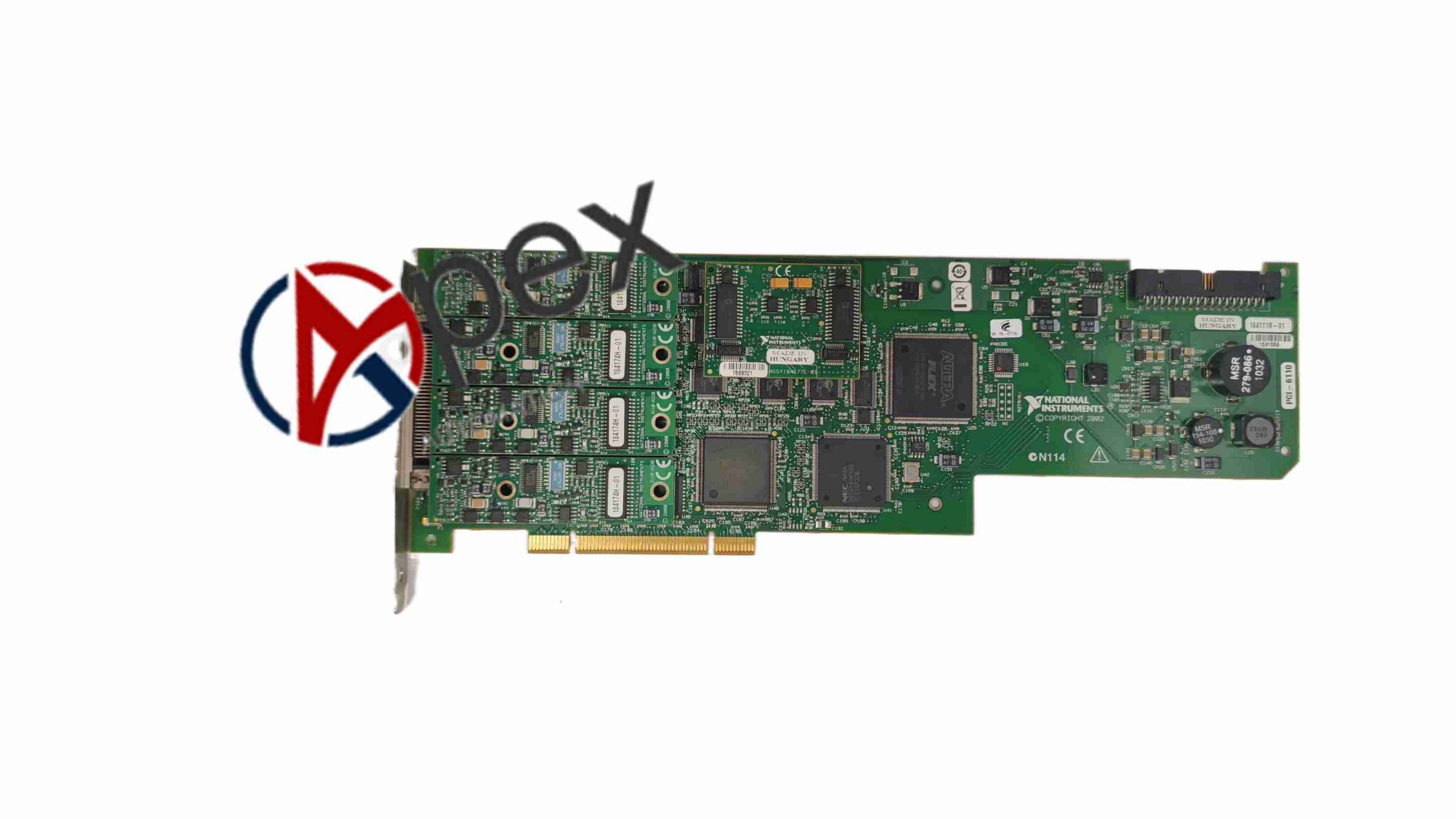

Structural Characteristics Standard PCI board, BNC connectors for analog input, front panel trigger port and LED indicators.
Working Principle Each channel uses independent ADC to sample analog signal at the same time. Digital data is transmitted to PC through PCI bus, DAC generates analog output signals.
Installation Requirements Power off PC, install PCI card into PCI slot. Install NI DAQmx driver. Connect BNC shielded cables for analog input.
Usage Notes Use matched high bandwidth BNC cables. Do not exceed input voltage range. Configure simultaneous sampling task in DAQmx.
