Technical Specifications 16 single-ended / 8 differential analog input; 16-bit ADC; 250 kS/s sampling rate; 2 analog output; 8 digital I/O; PCI bus; Operating temperature 0~55°C.
Functional Features High-speed multi-channel analog acquisition. Analog waveform output. Digital logic input and output. Hardware trigger and clock synchronization.
Application Scenarios High speed product test, dynamic signal logging, laboratory measurement, automated validation equipment.
Performance Parameters 16-bit ADC; 250 kS/s maximum sampling rate; Support hardware trigger for synchronized tasks.

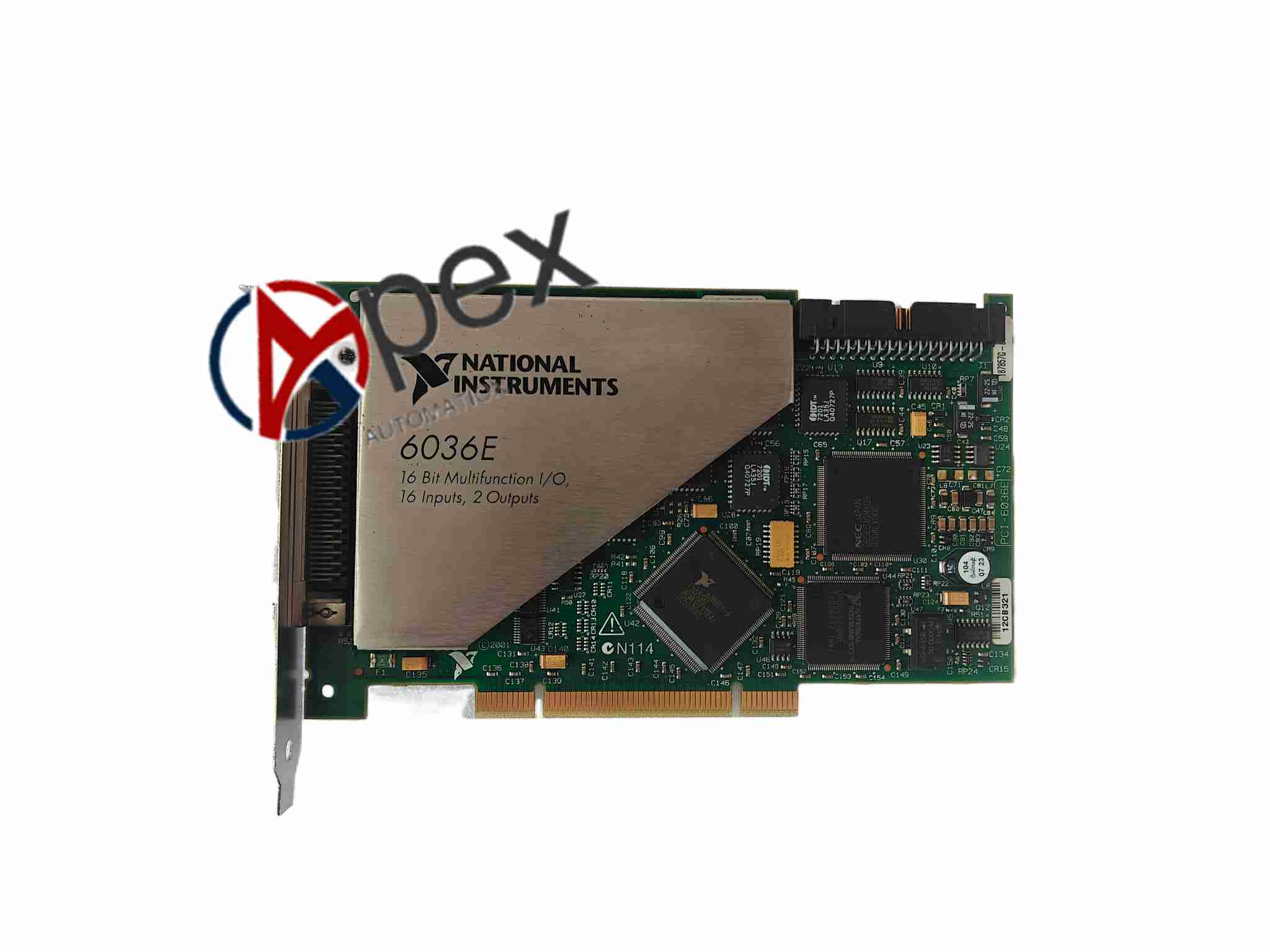

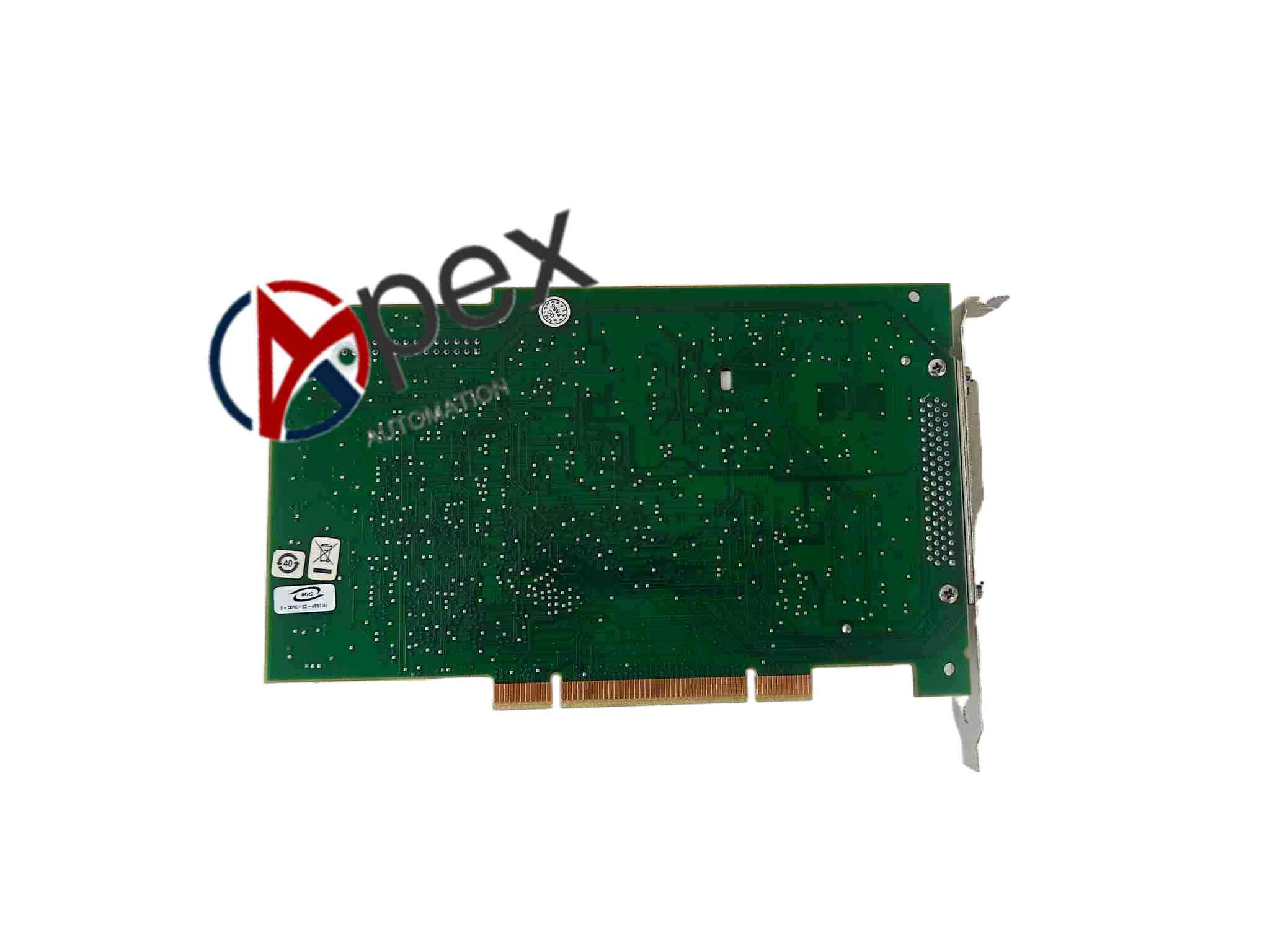

Structural Characteristics Standard PCI board, front panel terminal connector, status LED indicators.
Working Principle Analog input signals are converted to digital values by ADC. DAC generates analog output signals. Digital lines handle logic signals. Data communicates with PC via PCI bus.
Installation Requirements Power off PC, insert PCI board into PCI slot. Install NI DAQmx driver. Connect signal cables to terminal connector.
Usage Notes Avoid overvoltage input. Use differential mode for low-level noisy signals. Set trigger parameters properly in software.
