Technical Specifications High performance PowerPC processor; VME64x bus; Large capacity ECC SDRAM; Flash ROM; Dual Ethernet and serial ports; PMC expansion slots; 6U VME form factor; Operating temperature 0~70°C.
Functional Features High speed real-time embedded computing. VME64x master/slave and system controller. ECC memory protection. Multiple PMC mezzanine expansion. Onboard watchdog timer and RTC.
Application Scenarios Aerospace simulation, defense embedded control, high-end automatic test equipment, large scale industrial VME control systems.
Performance Parameters High processing speed; Large ECC memory; A64/D64 VME64x high bandwidth data transmission.

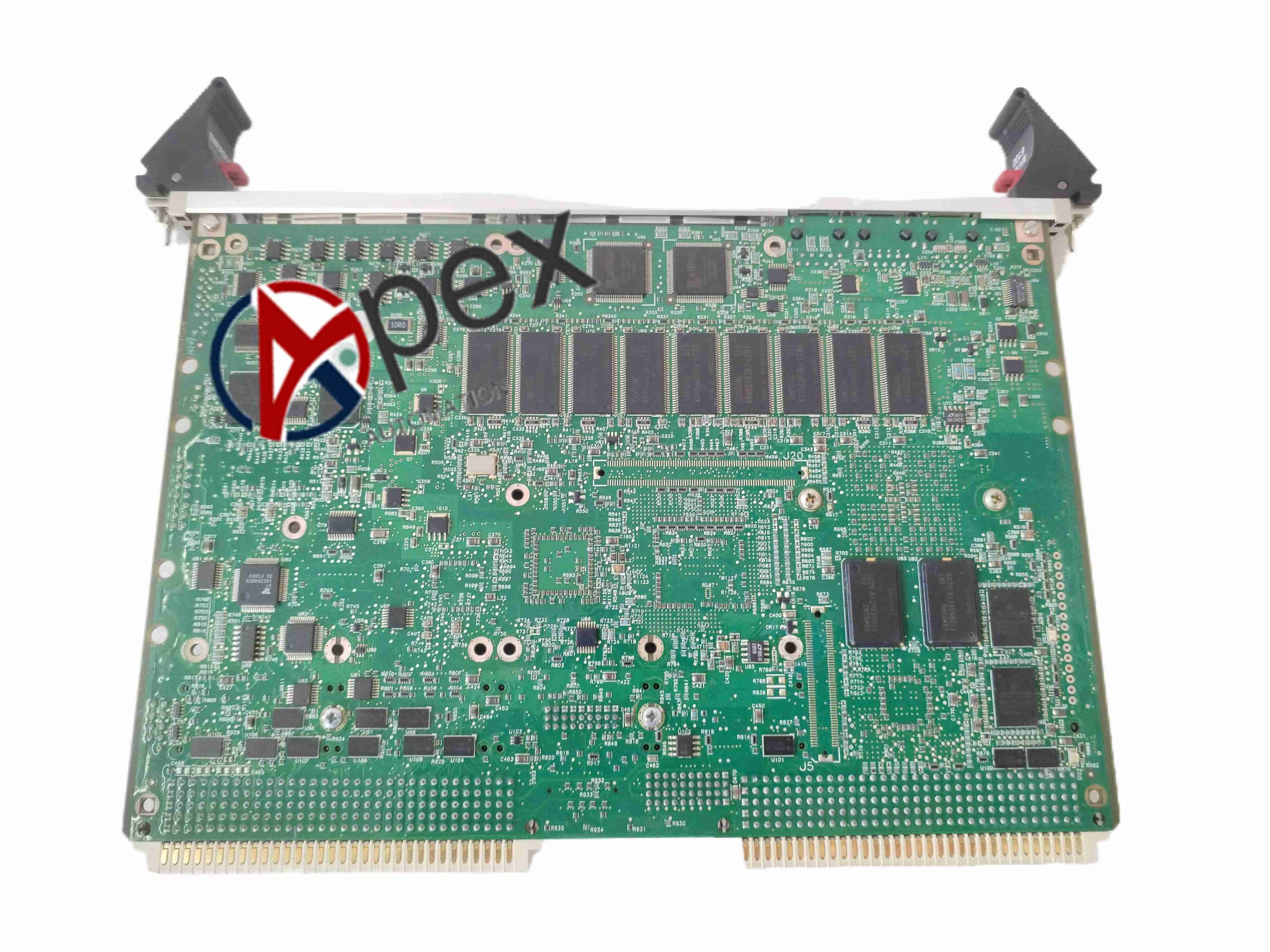

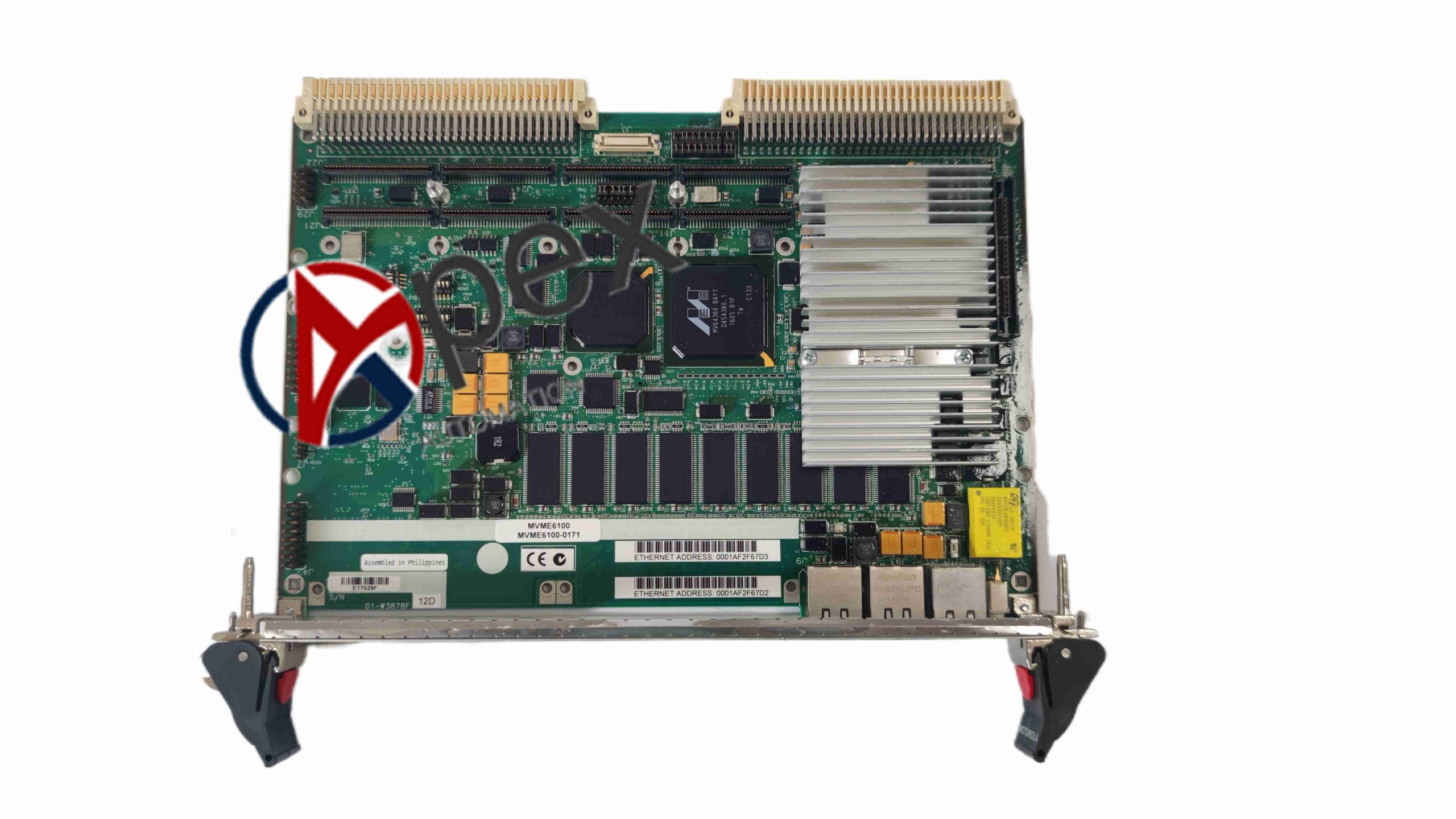

Structural Characteristics 6U single-width VME board, VME P1/P2 backplane connectors, front panel dual Ethernet, serial ports and multi-status LED indicators.
Working Principle PowerPC processor executes complex embedded control and data processing programs. It communicates with other VME modules through VME64x backplane bus, PMC slots support mezzanine I/O modules for function expansion.
Installation Requirements Insert board into 6U VME chassis slot and lock front ejector latches. Anti-static wrist strap must be worn when handling the board.
Usage Notes Do not remove or insert board with power applied. Avoid electrostatic damage to components. Check LED status after power-up.
