Technical Specifications PowerPC processor; VME64x bus; Pre-configured ECC SDRAM and flash; Dual Ethernet and serial ports; PMC expansion; 6U VME board; Operating temperature 0~70°C.
Functional Features High-performance real-time computation. VME64x bus master/slave operation. ECC memory protection. PMC mezzanine I/O expansion.
Application Scenarios Custom aerospace test systems, military embedded platforms, dedicated semiconductor production control equipment.
Performance Parameters Factory fixed hardware configuration; ECC memory for noise immunity; High bandwidth VME64x data transfer.

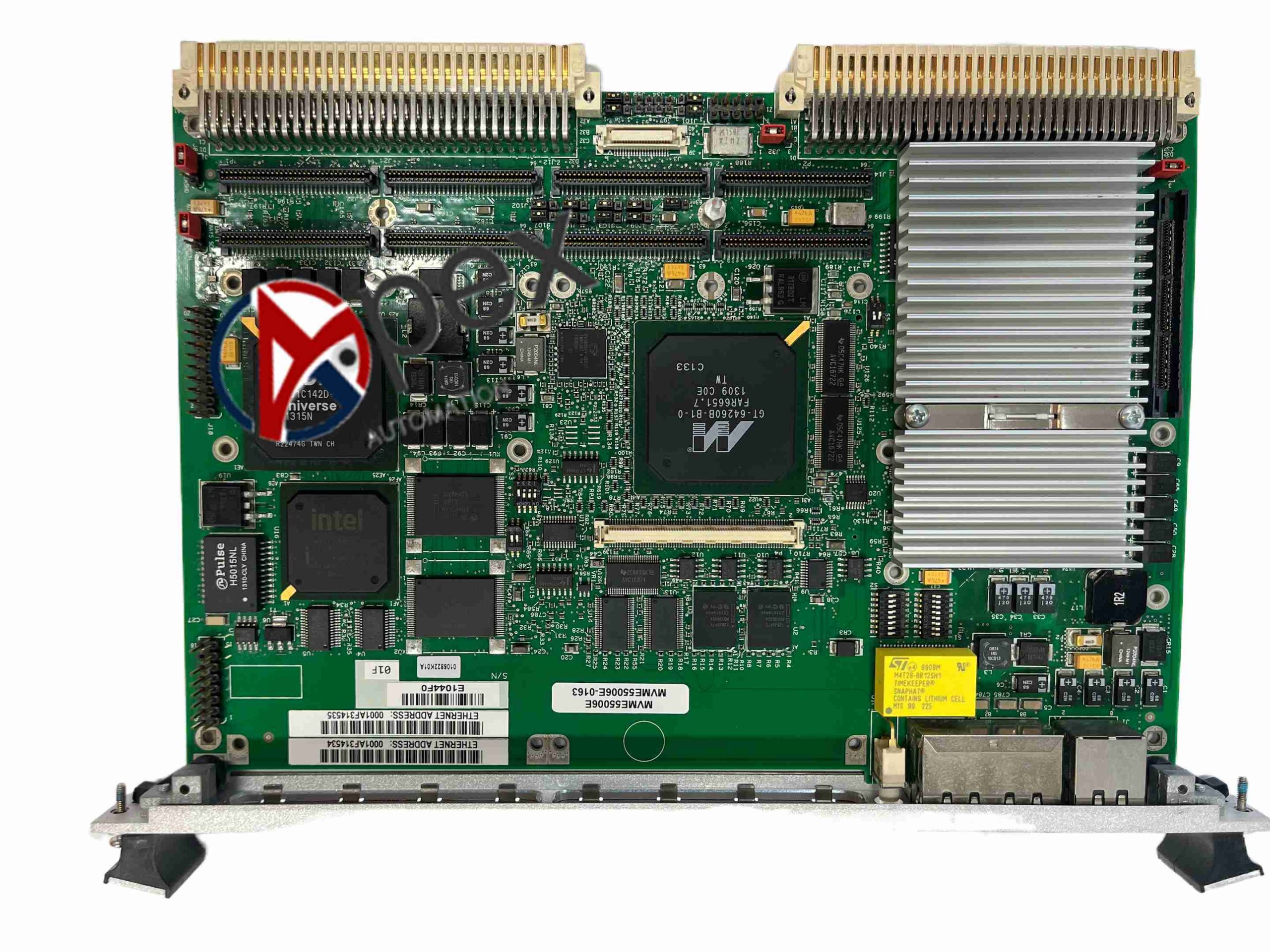

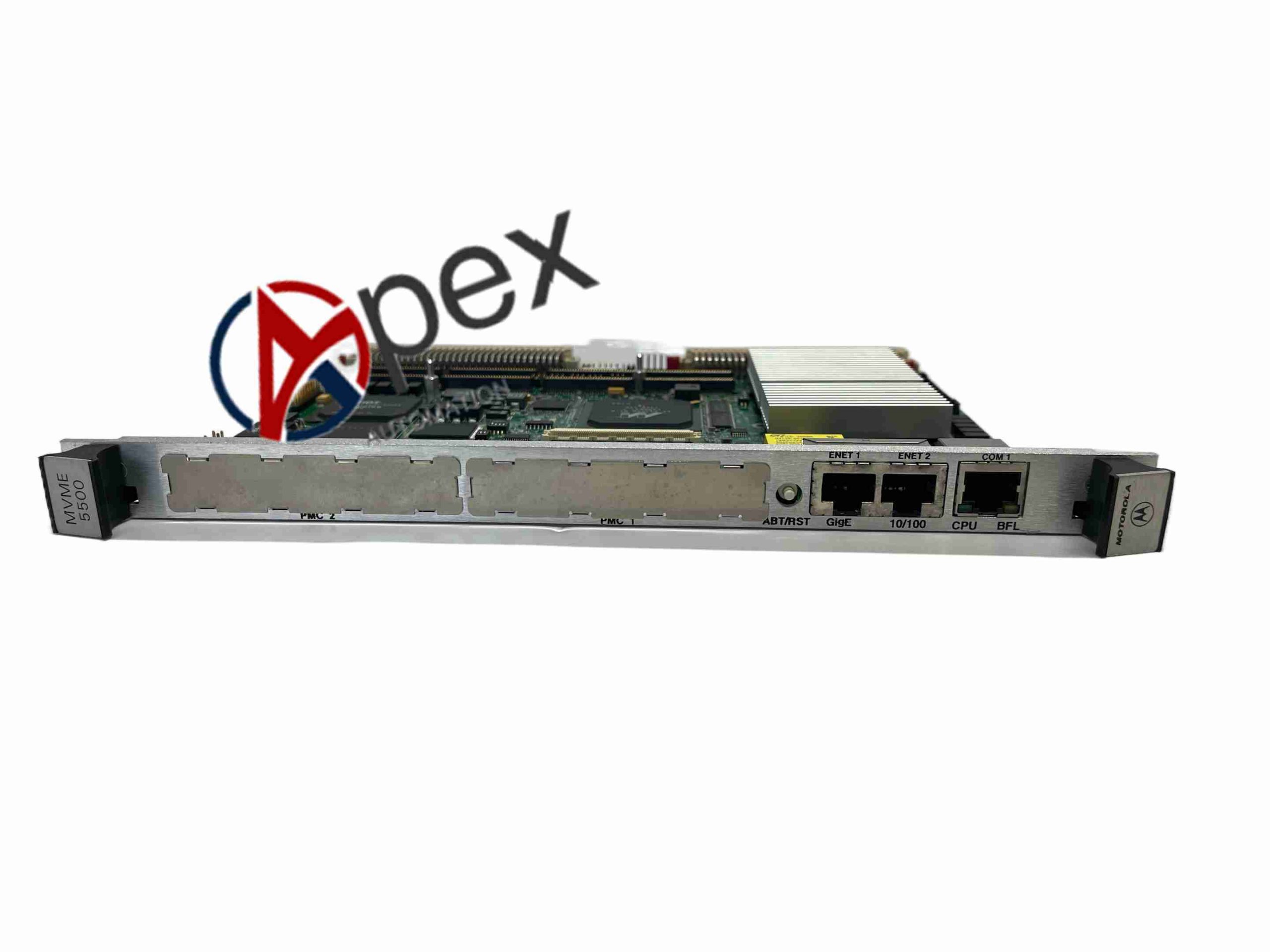

Structural Characteristics 6U VME single board, VME P1/P2 backplane connectors, front panel dual Ethernet, serial port and LED status indicators.
Working Principle PowerPC processor runs embedded application software, exchanges data with other VME modules over VME64x backplane bus, PMC slots support mezzanine cards for additional I/O functions.
Installation Requirements Mount into 6U VME chassis slot and secure front latches. Anti-static protection required during handling.
Usage Notes Power off before plugging or removing the board. Prevent electrostatic discharge damage. Verify part number configuration before commissioning.
