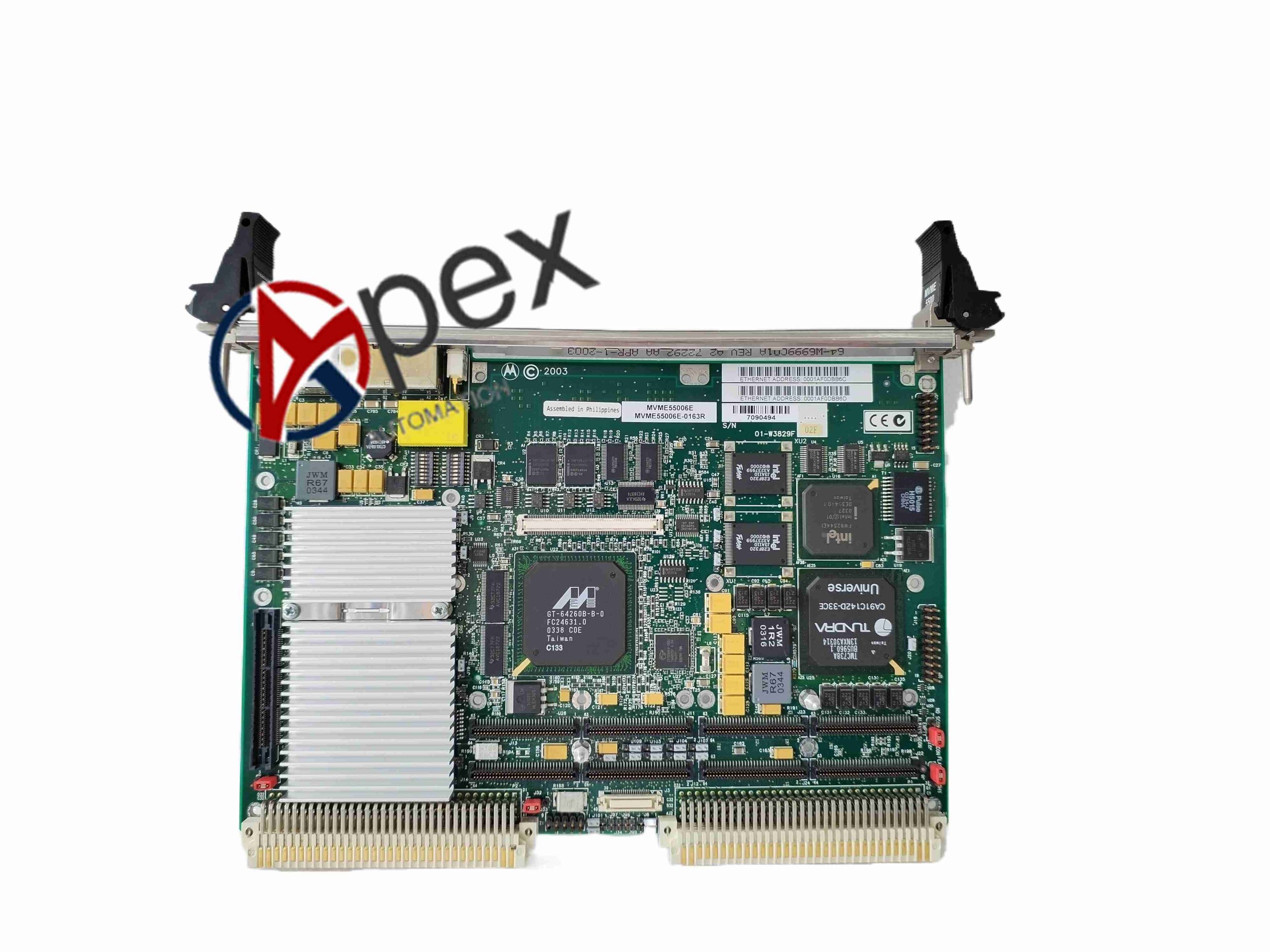

Technical Specifications PowerPC processor; VME64x bus; ECC SDRAM; Flash ROM; Dual Ethernet and serial ports; PMC slots; 6U VME form factor; Operating temperature 0~70°C.
Functional Features High speed real-time embedded computing. VME64x master/slave and system controller. ECC memory protection. Multiple PMC mezzanine expansion slots.
Application Scenarios Aerospace simulation, defense embedded systems, semiconductor manufacturing equipment, high performance test platforms.
Performance Parameters High processing capability; Large onboard ECC memory; VME64x high bandwidth data transfer.

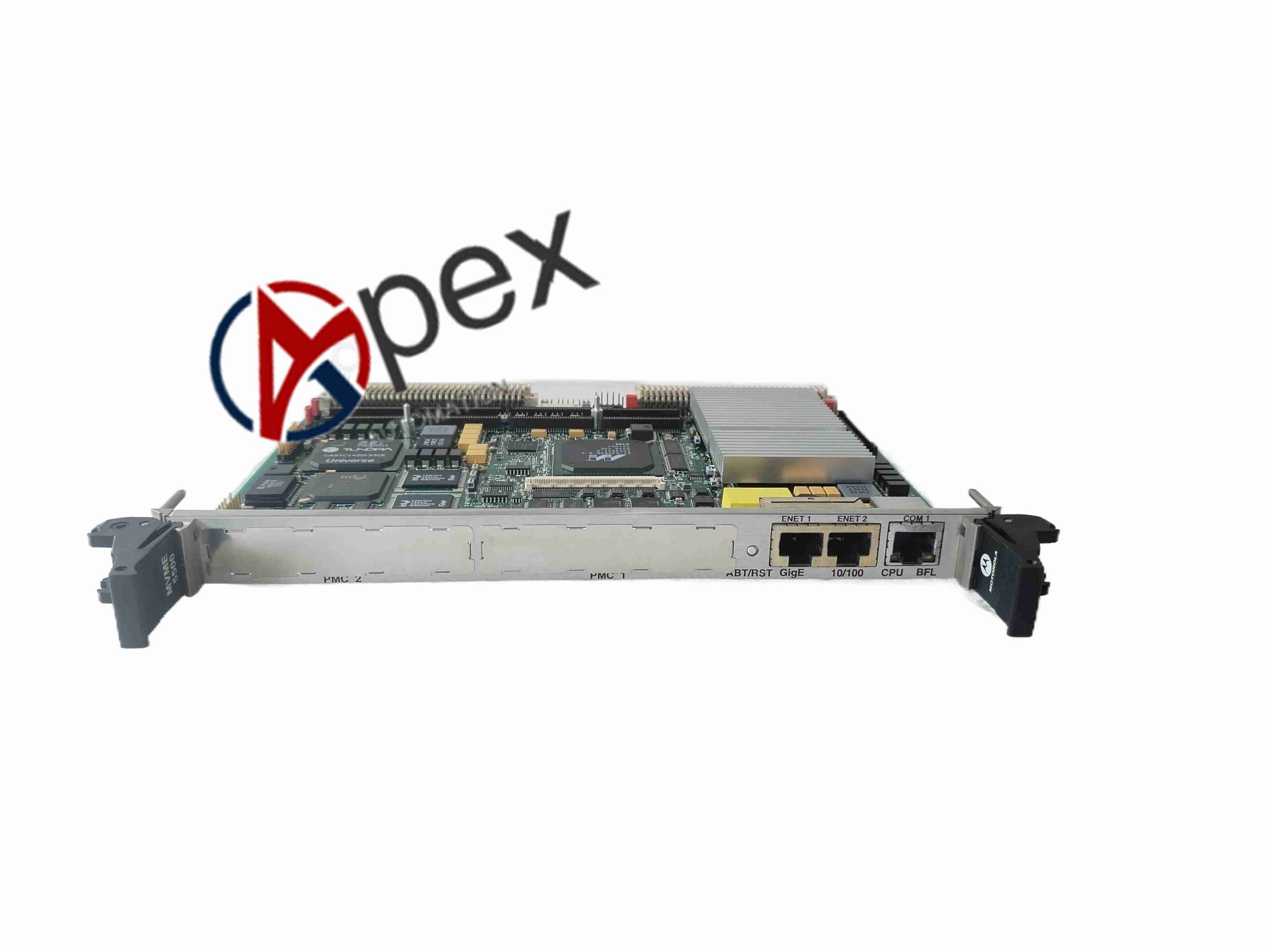

Structural Characteristics 6U single-width VME board, VME P1/P2 backplane connectors, front panel dual Ethernet, serial ports and multi-channel status LEDs.
Working Principle PowerPC processor executes embedded control and data processing programs. It communicates with other VME modules via VME64x backplane, PMC slots support multiple mezzanine I/O cards.
Installation Requirements Insert board into 6U VME chassis slot and lock front ejector latches. Use anti-static wrist strap during handling.
Usage Notes Cut off power before board replacement. Avoid electrostatic damage to chips. Check network and run status LEDs after startup.
