Technical Specifications PowerPC processor; VMEbus master/slave; Pre-configured onboard ECC SDRAM and flash; Ethernet and serial ports; PMC expansion; 6U VME board; Operating temperature 0~70°C.
Functional Features Embedded real-time control. VMEbus inter-module communication. ECC memory protection. PMC mezzanine I/O expansion.
Application Scenarios Custom industrial test equipment, defense embedded platforms, dedicated VME control systems.
Performance Parameters Fixed hardware configuration; ECC memory protection; Reliable VMEbus data transmission.

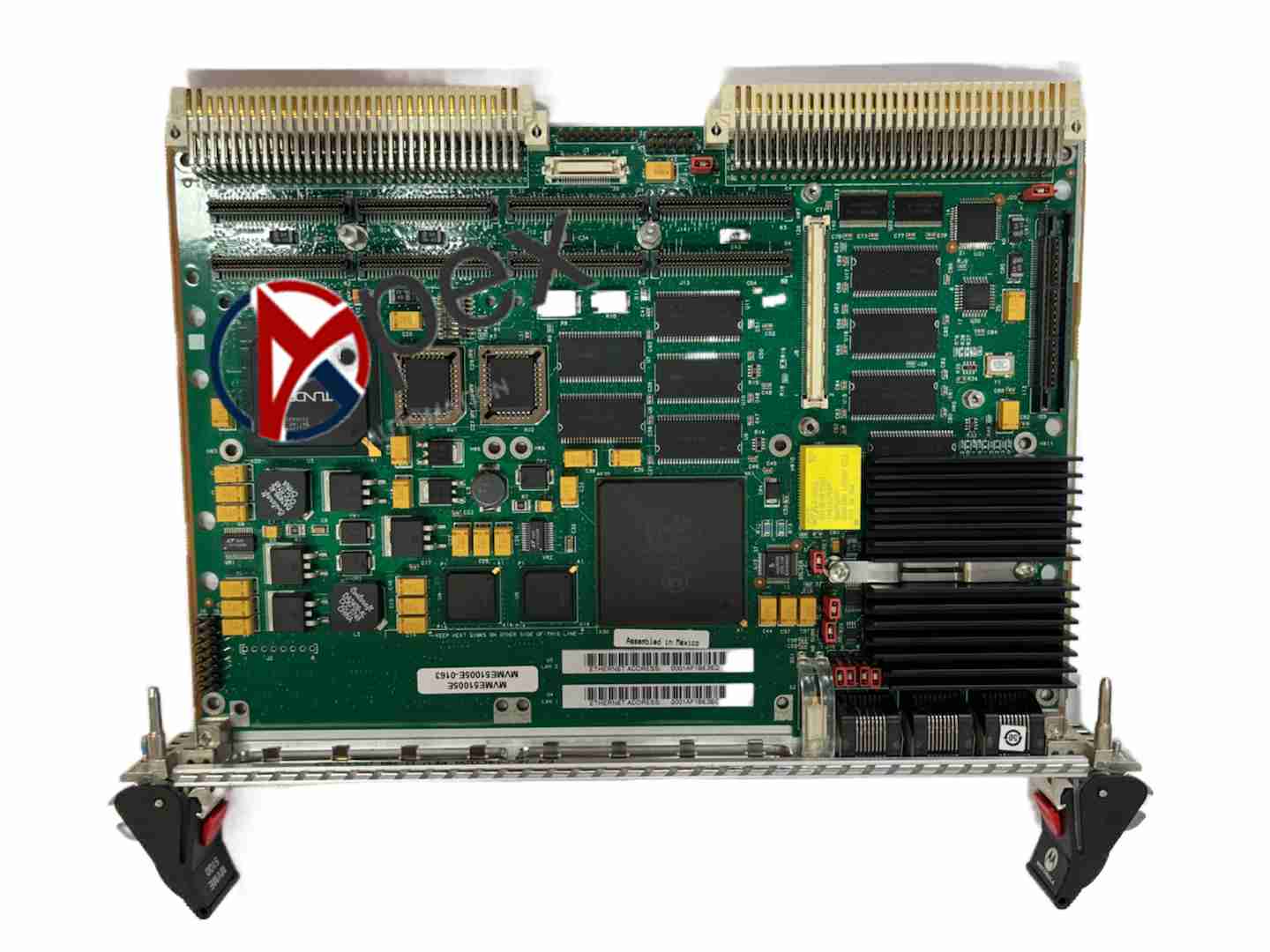

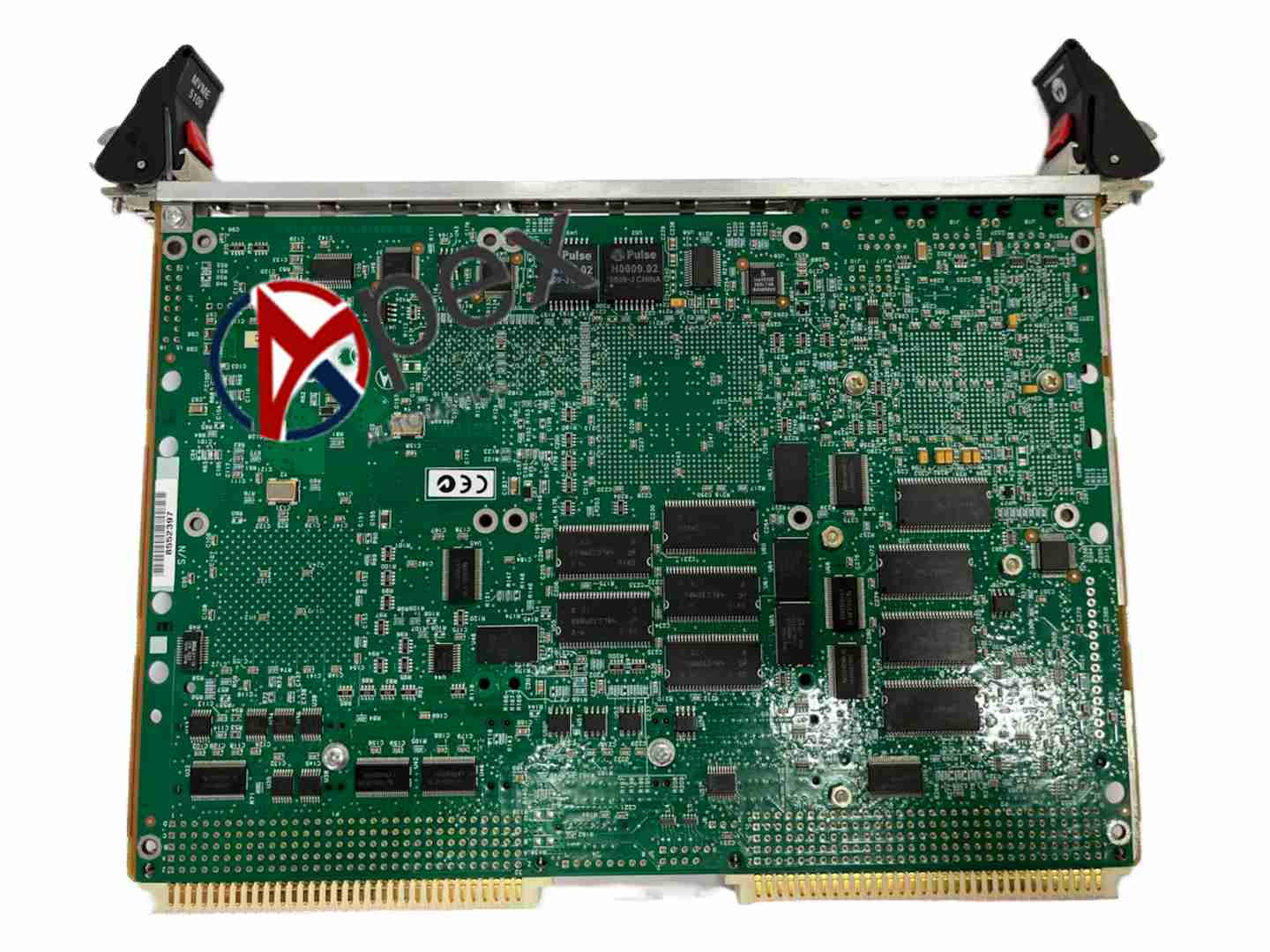

Structural Characteristics 6U VME single board, VME backplane connector, front panel communication ports and LED status indicators.
Working Principle PowerPC processor runs embedded application program, exchanges data with other VME boards through VMEbus backplane, PMC slot supports additional I/O mezzanine modules.
Installation Requirements Install into 6U VME chassis slot and secure front latches. Anti-static protection required.
Usage Notes Power off before board replacement. Prevent electrostatic discharge damage. Verify hardware configuration before commissioning.
