Technical Specifications PowerPC processor; VMEbus interface; ECC SDRAM; Flash memory; Ethernet and serial ports; PMC expansion slot; 6U VME form factor; Operating temperature 0~70°C.
Functional Features Real-time embedded computation. VMEbus master/slave operation. ECC memory protection. PMC mezzanine expansion. Watchdog timer and RTC.
Application Scenarios Military embedded systems, industrial process control, test & measurement equipment, legacy VME system upgrade.
Performance Parameters Stable long runtime; ECC memory data protection; VMEbus high-speed data exchange.

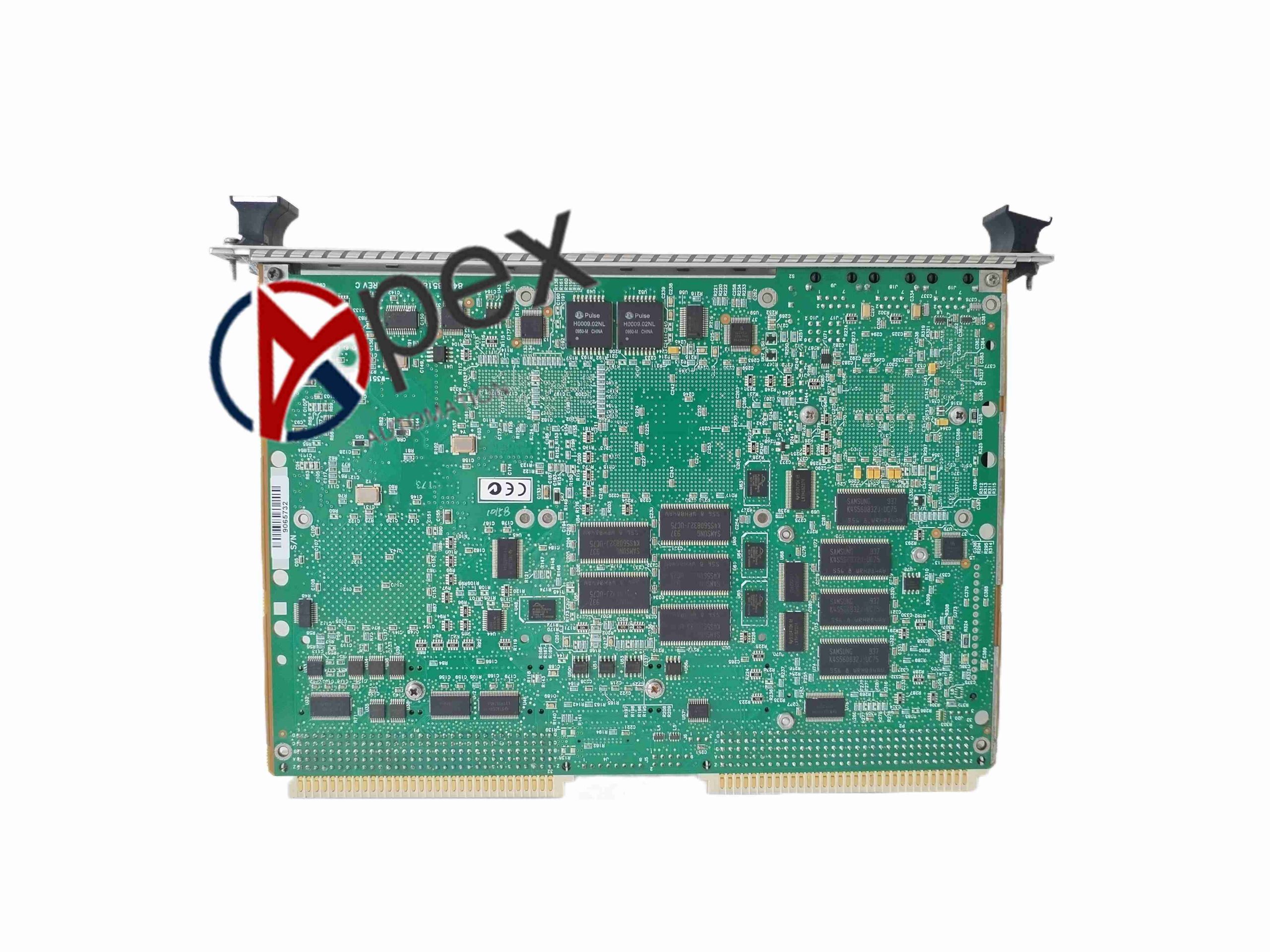

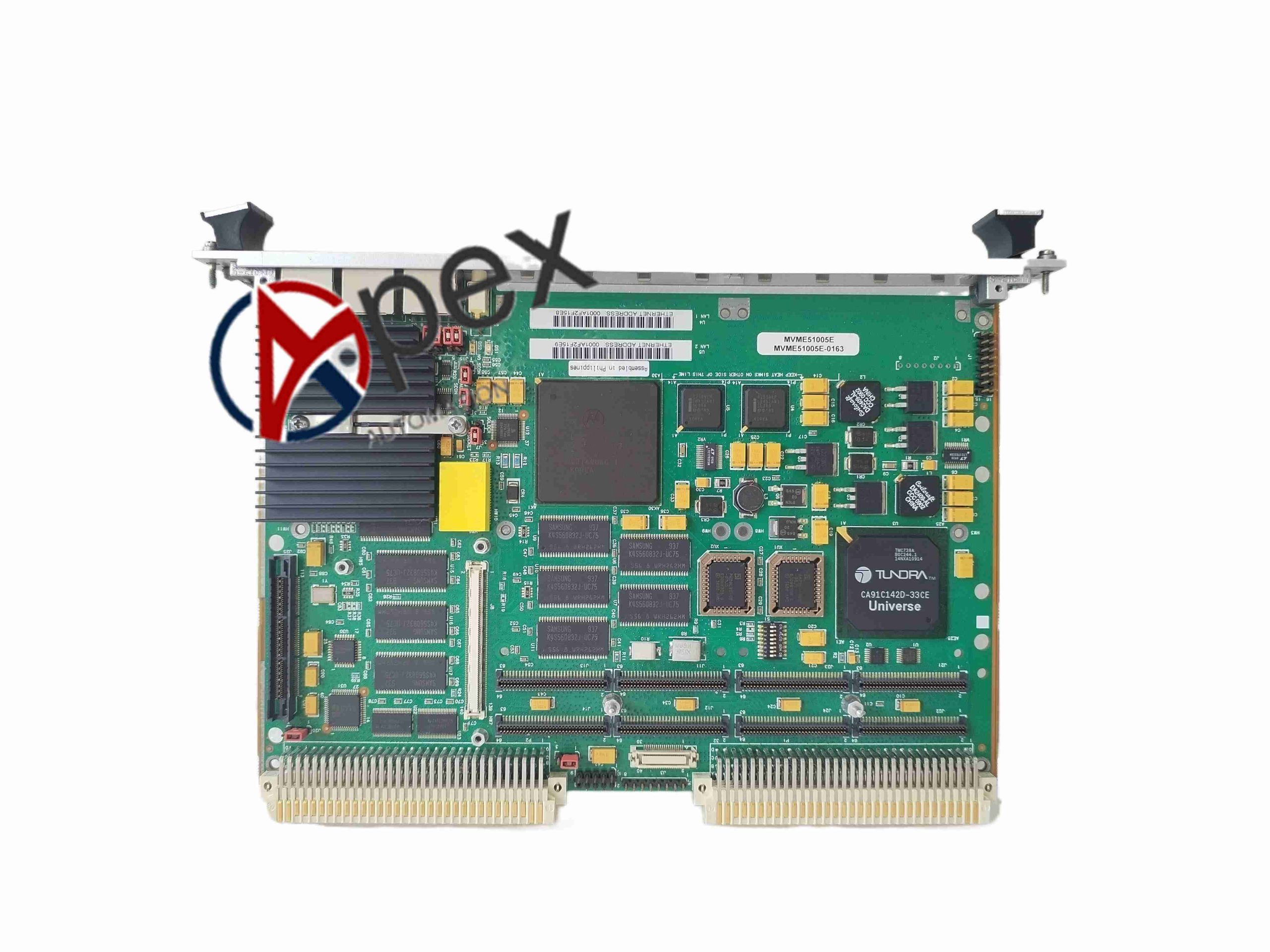

Structural Characteristics 6U VME single board, VME backplane connector, front panel network and serial ports with LED indicators.
Working Principle PowerPC processor executes embedded control software. It accesses onboard memory and peripherals, exchanges data with other VME modules via VMEbus backplane, and supports PMC cards for I/O expansion.
Installation Requirements Mount in 6U VME chassis slot and lock front latches. Anti-static wrist strap is required during handling.
Usage Notes Cut power before inserting or removing the board. Avoid static damage to components. Monitor front panel LED status.
