Technical Specifications MPC750 PowerPC processor; VME64x compliant; Large capacity ECC SDRAM; Flash ROM; 10/100 Ethernet; Serial port; 6U VME board; Operating temperature 0~70°C.
Functional Features High speed real-time computing. VME64x master/slave and system controller. ECC memory protection. PMC mezzanine expansion support.
Application Scenarios Railway signaling, industrial robotics, semiconductor equipment, high performance automatic test equipment.
Performance Parameters High processing speed; Large onboard memory; A64/D64 VME64x high bandwidth data transfer.

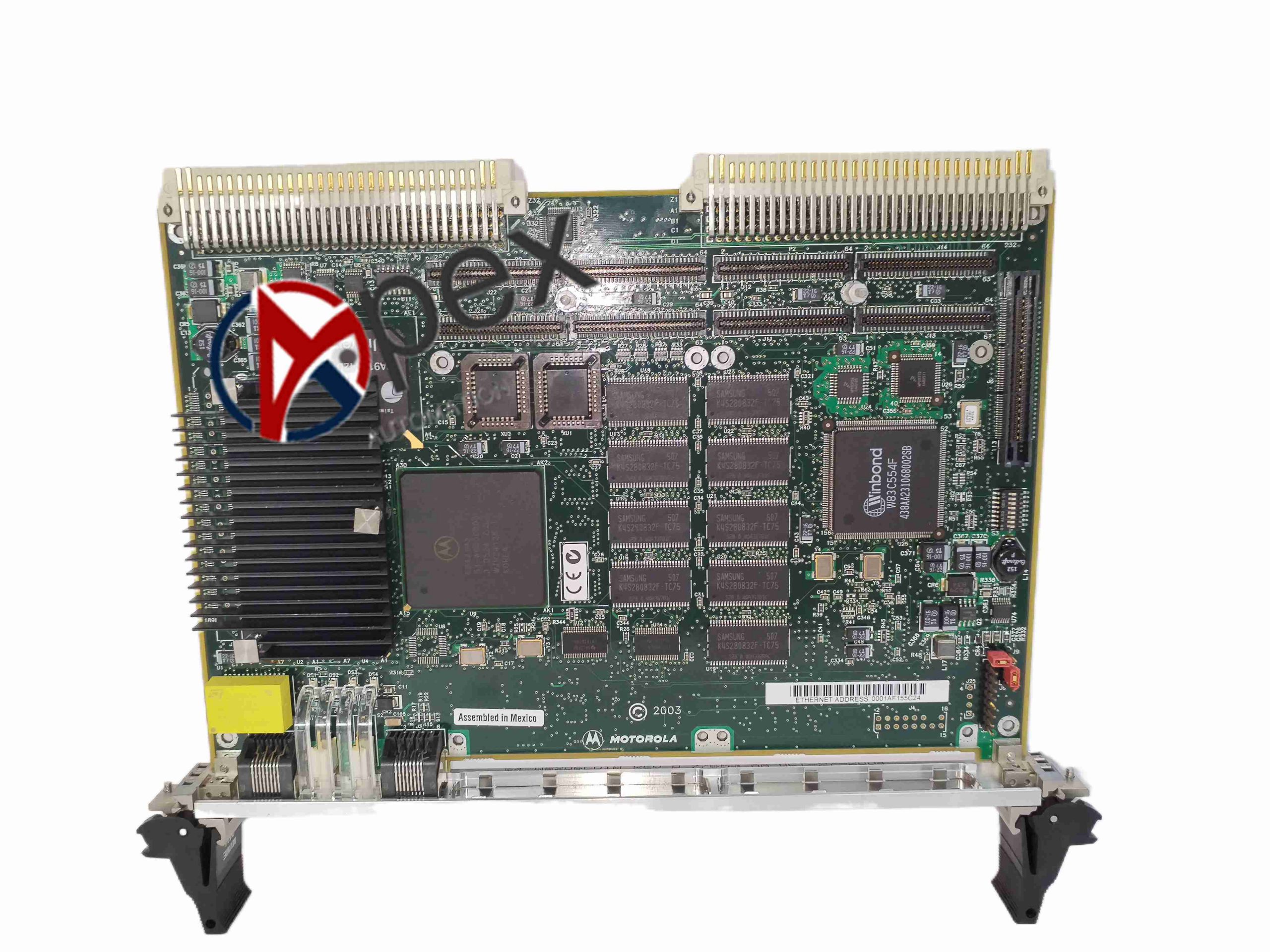

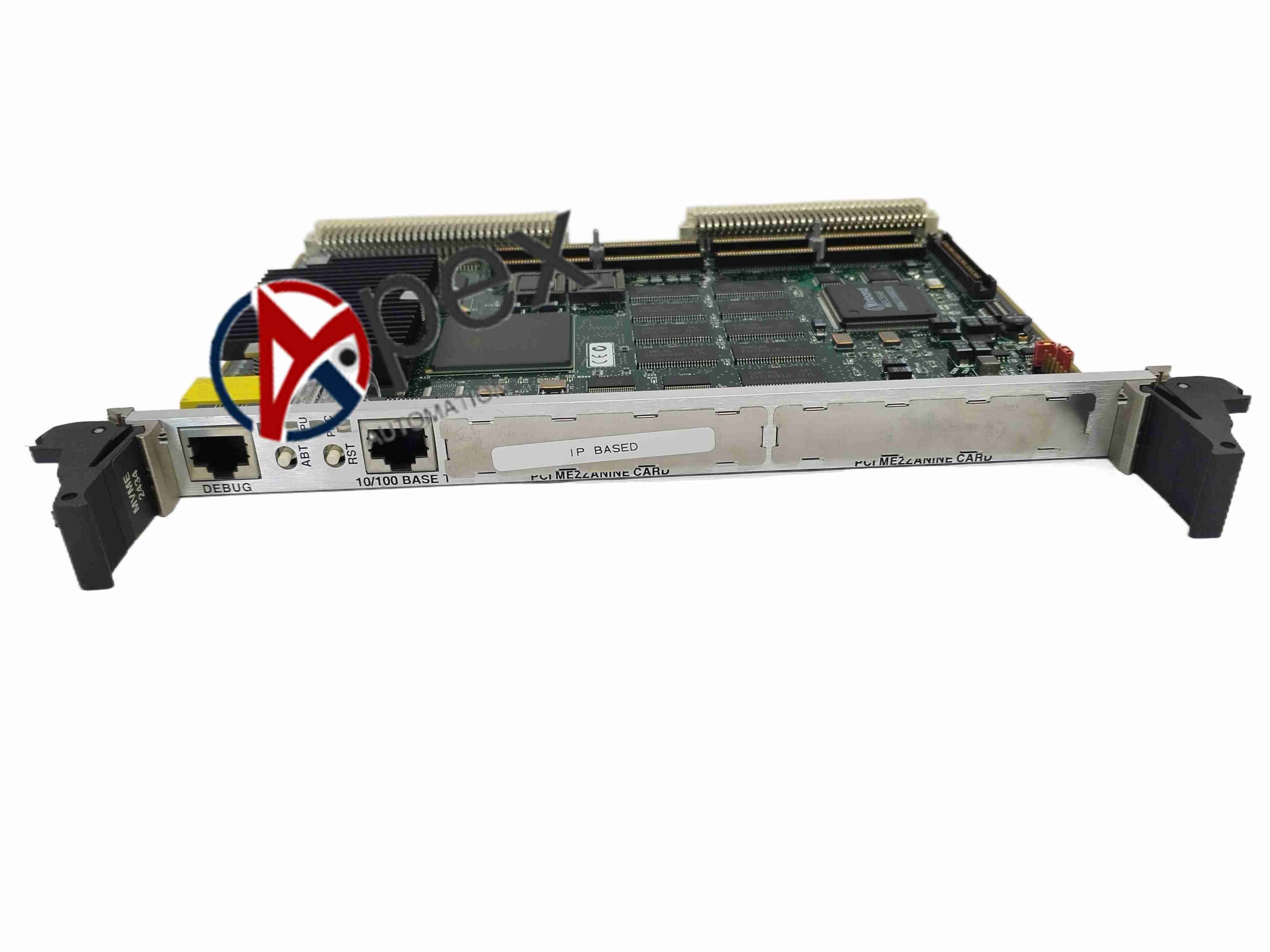

Structural Characteristics Single-width 6U VME board, VME P1/P2 backplane connectors, front panel Ethernet, serial port and status LEDs.
Working Principle MPC750 processor runs embedded firmware and application programs. It communicates with other VME modules through VME64x backplane bus, and supports PMC mezzanine cards to expand I/O functions.
Installation Requirements Insert board into 6U VME chassis slot and secure front ejector latches. Anti-static protection required.
Usage Notes Power off before board replacement. Prevent electrostatic discharge damage. Check communication LED status after startup.
