Technical Specifications MPC750 PowerPC processor; VME64 bus; ECC SDRAM; Flash ROM; Ethernet and serial ports; 6U VME form factor; Operating temperature 0~70°C.
Functional Features High performance embedded computation. VME64 bus master/slave communication. ECC memory protection. Support PMC mezzanine expansion.
Application Scenarios Complex industrial control, automatic test equipment, aerospace simulation and high-speed data acquisition systems.
Performance Parameters High CPU clock speed; ECC memory; High bandwidth VME64 data transfer.

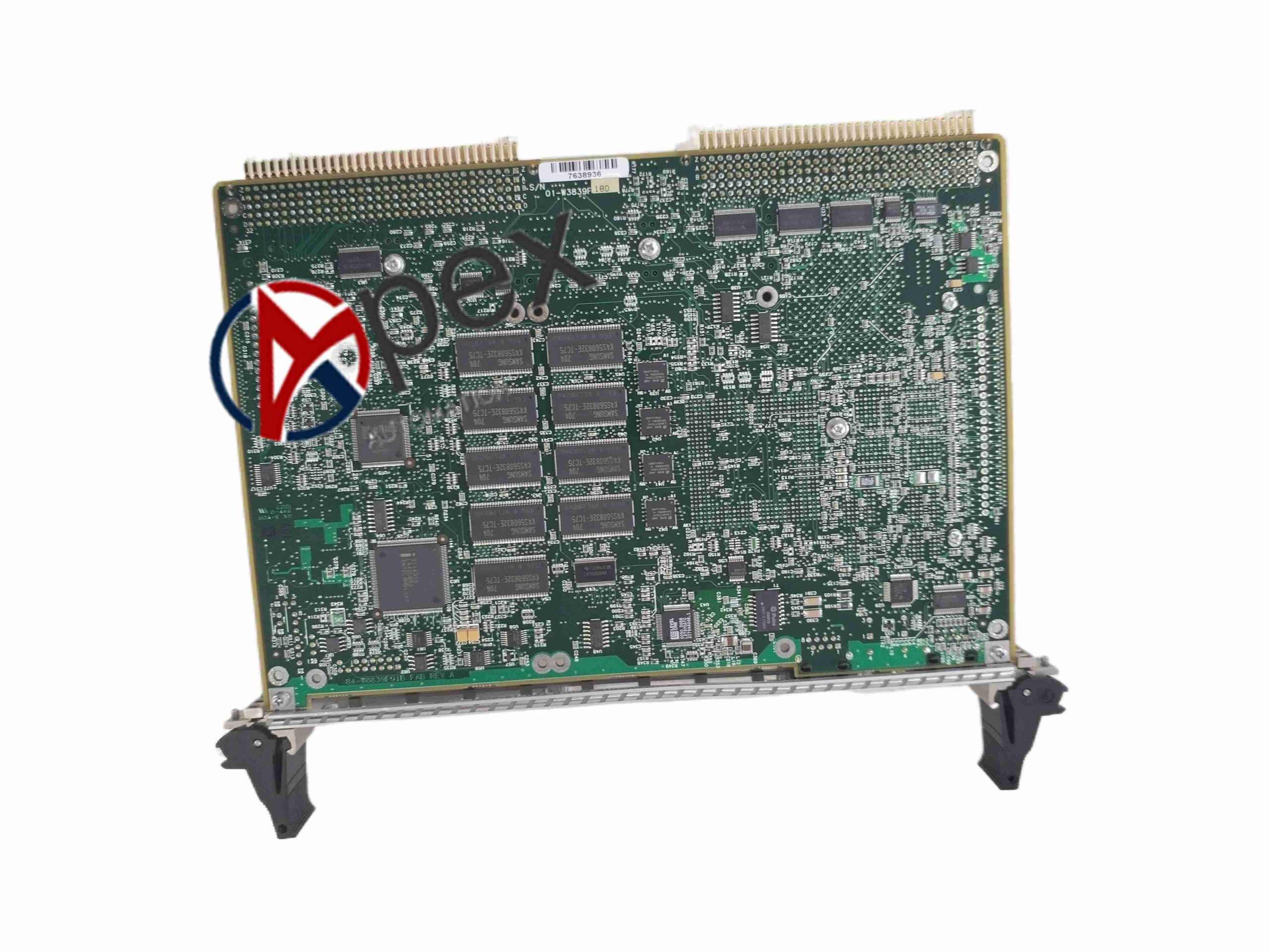

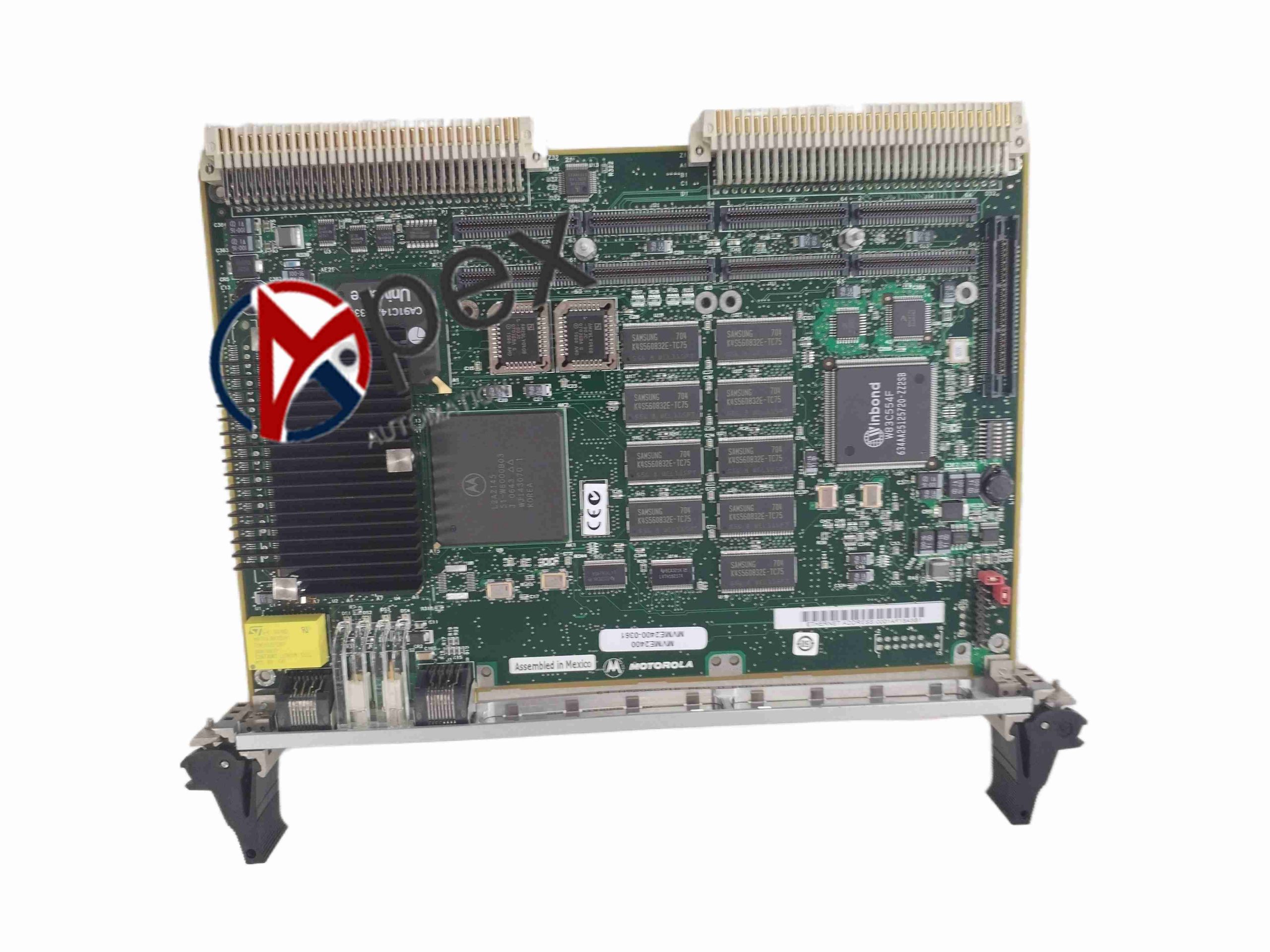

Structural Characteristics 6U VME single-width board, VME backplane connector, front panel Ethernet, serial port and multi-status LEDs.
Working Principle MPC750 processor executes embedded application, uses onboard ECC memory for program operation, exchanges data with other VME boards over VME64 bus, and supports PMC card expansion for extra I/O.
Installation Requirements Install into 6U VME chassis slot and lock front latches. Wear anti-static wrist strap during handling.
Usage Notes Do not plug or remove board with power applied. Avoid electrostatic damage. Check LED indicators after power on.
