Technical Specifications PowerPC 603 CPU; VMEbus interface; ECC protected DRAM; Flash ROM; Ethernet and serial ports; 6U VME board; Operating temperature 0~70°C.
Functional Features High-speed embedded computing. VMEbus master/slave communication. ECC memory for noise immunity. Watchdog timer and real-time clock.
Application Scenarios Semiconductor wafer inspection equipment, power plant monitoring, industrial test platforms and legacy VME control systems.
Performance Parameters Stable continuous operation; ECC memory protects data integrity under electrical interference; Fast VMEbus data exchange.

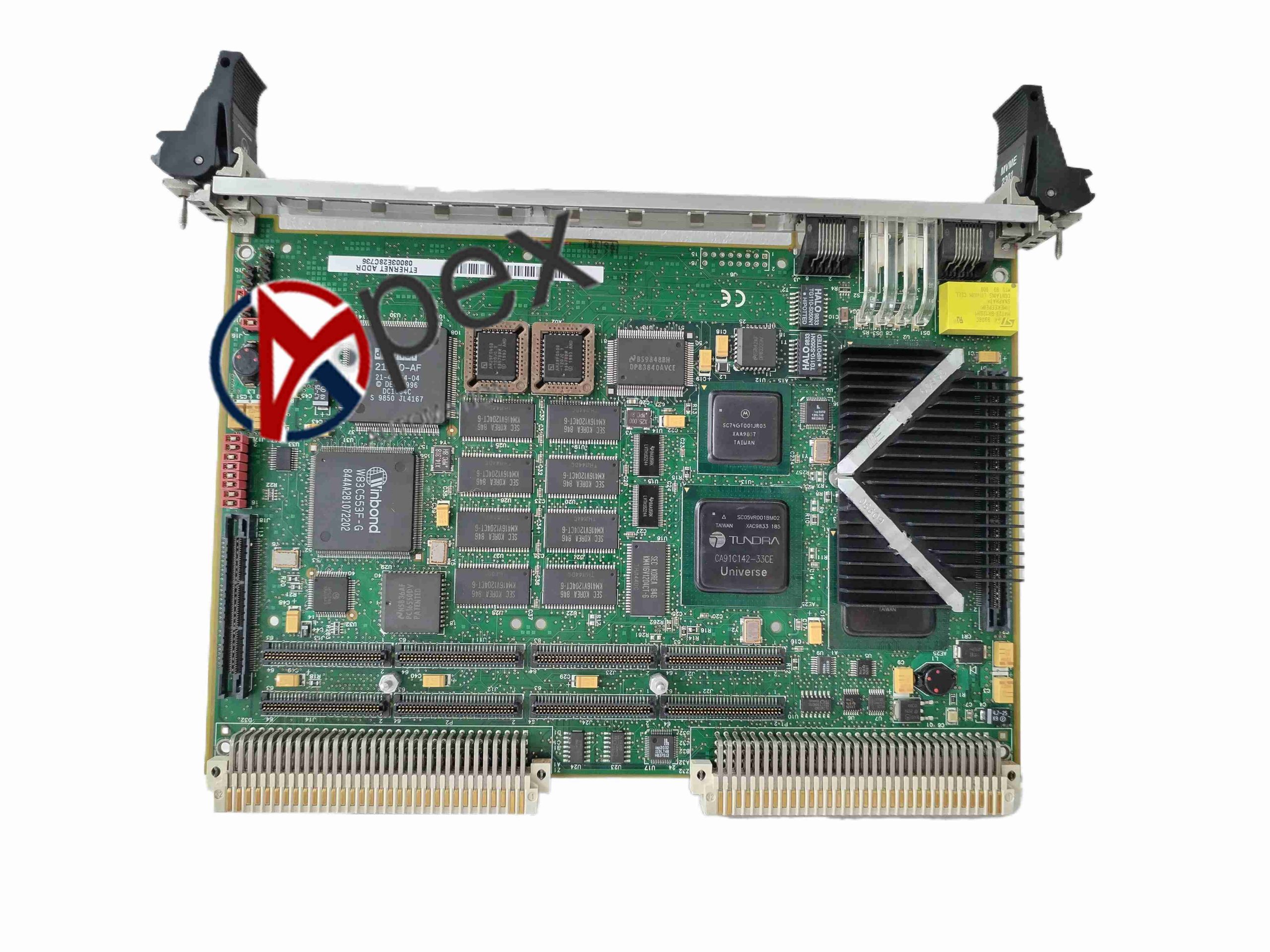

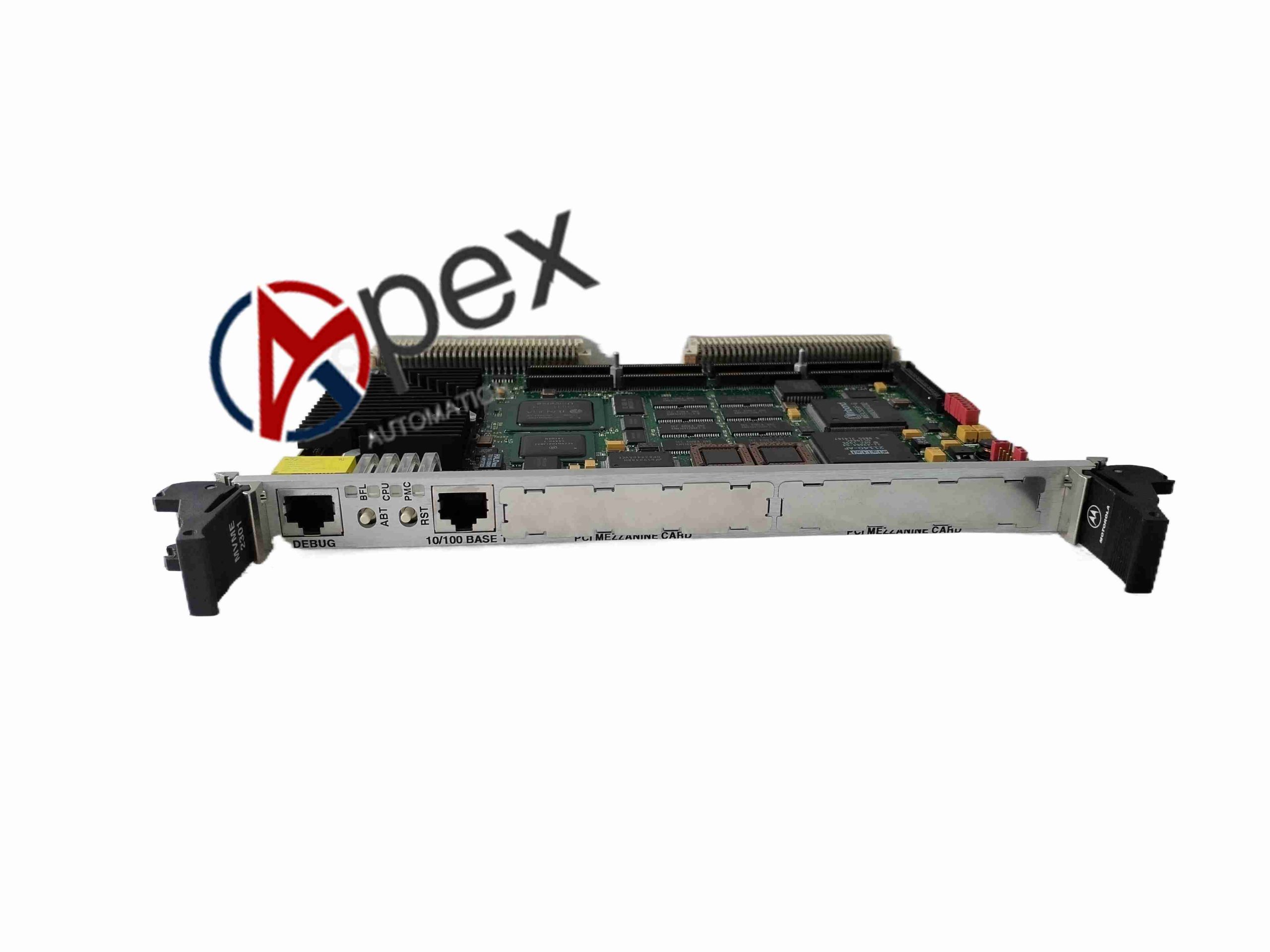

Structural Characteristics 6U VME single board, VME backplane connector, front panel communication ports and status LEDs.
Working Principle PowerPC processor runs embedded application software. It accesses onboard memory and peripherals, exchanges data with other VME boards through VMEbus backplane, and communicates externally via Ethernet and serial interfaces.
Installation Requirements Install into 6U VME chassis slot and lock front panel latches. Anti-static protection required.
Usage Notes Power must be disconnected before board replacement. Avoid static damage to circuit chips. Monitor front panel LED indicators.
