Technical Specifications 200MHz PowerPC 603 CPU; ECC DRAM; VMEbus master/slave; Ethernet and serial ports; 6U VME form factor; Operating temperature 0~70°C.
Functional Features Real-time image and data processing. ECC memory protection. VMEbus inter-module data transfer. Onboard watchdog timer and RTC.
Application Scenarios Semiconductor wafer inspection systems, power distribution monitoring, high precision automatic test equipment.
Performance Parameters 200MHz processing speed; ECC memory prevents data corruption; Low latency real-time response.

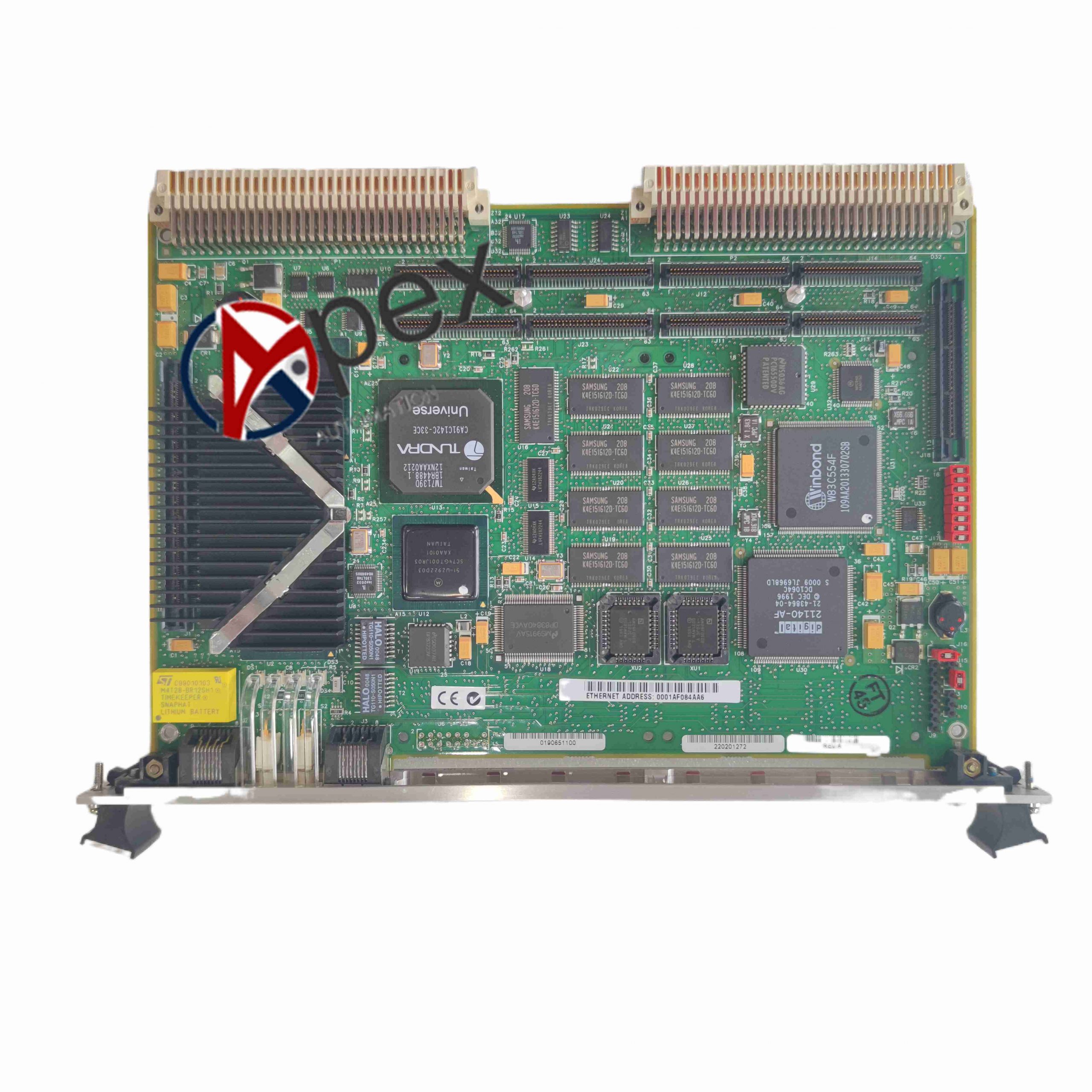

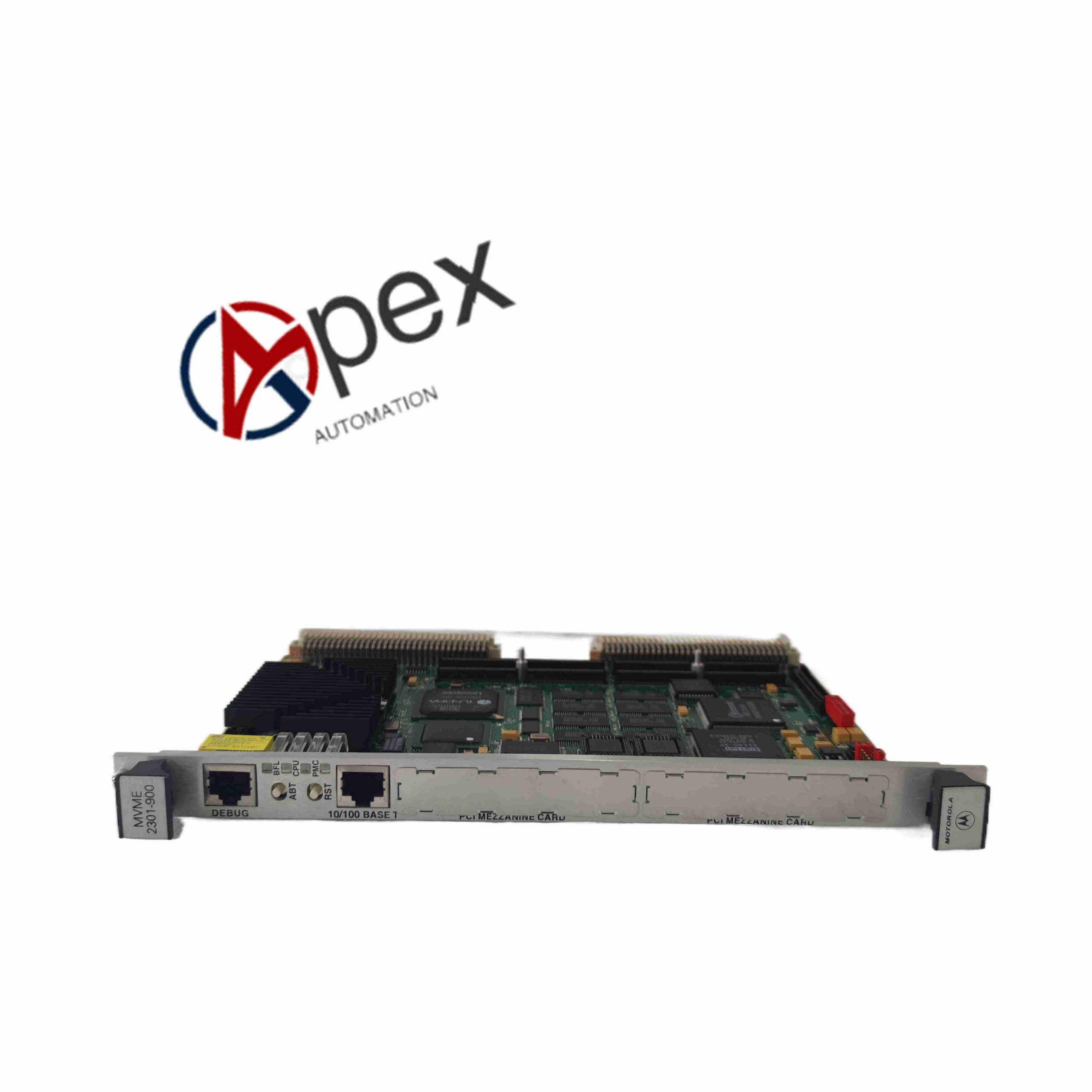

Structural Characteristics 6U VME single board, VME backplane connector, front panel network and serial ports with status LED indicators.
Working Principle PowerPC 603 processor executes real-time control and data analysis programs. It exchanges data with other VME modules via VMEbus, and communicates with external devices over Ethernet and serial ports.
Installation Requirements Insert into 6U VME chassis slot and fasten front latches. Apply anti-static protection when handling the board.
Usage Notes Power off before plugging or removing the board. Prevent electrostatic discharge damage. Verify boot status from front LEDs.
