Technical Specifications 68040 CPU; VMEbus master/slave; Onboard memory; Ethernet, serial ports; 6U VME form factor; Operating temperature 0~70°C.
Functional Features High performance embedded computing. VMEbus inter-board data exchange. Onboard network and serial interface for communication and debug.
Application Scenarios Industrial automation, test equipment, legacy VME embedded systems in manufacturing and aerospace industries.
Performance Parameters Stable long-term runtime; VMEbus high speed parallel data transfer; Network communication capability.

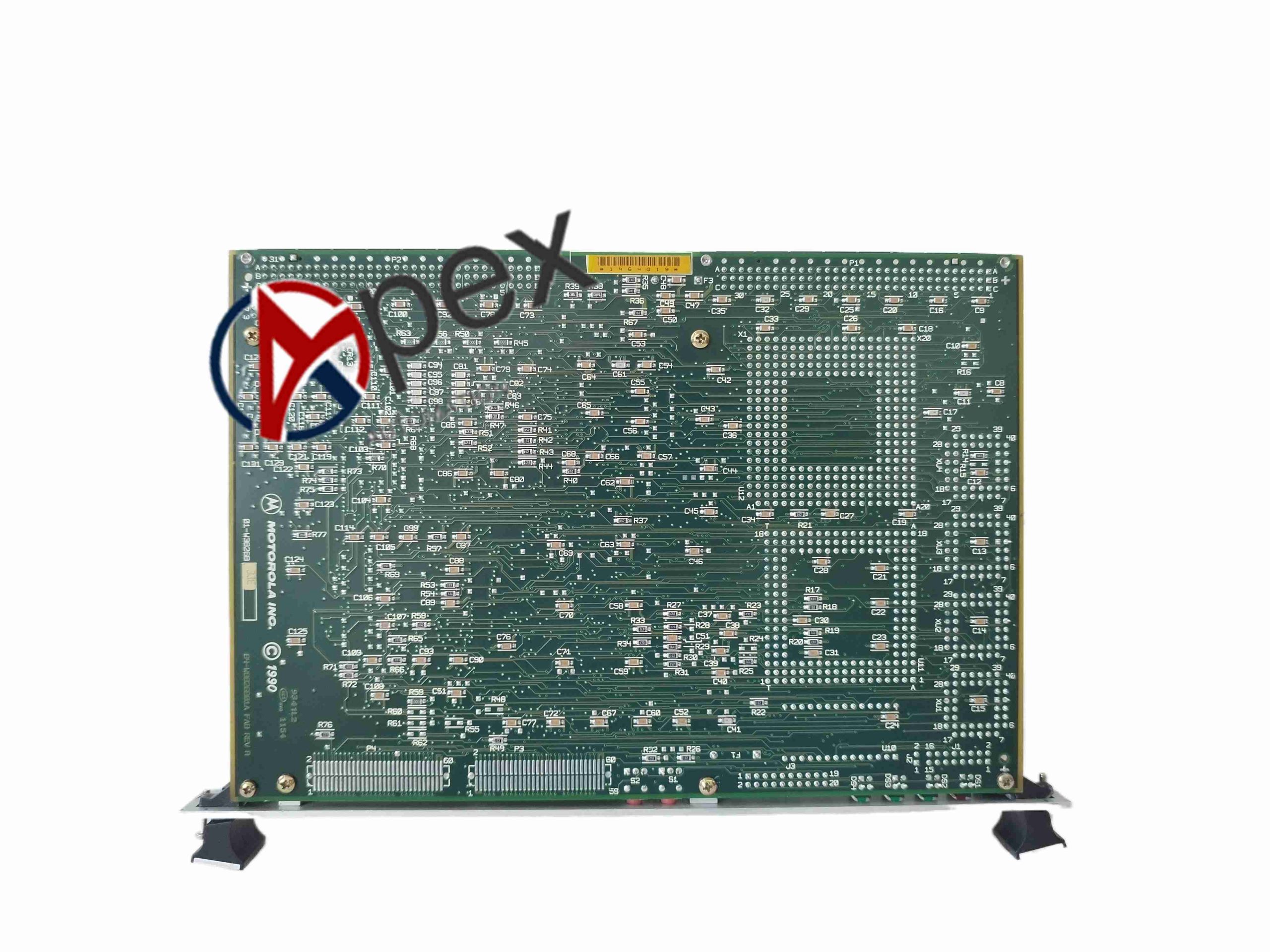

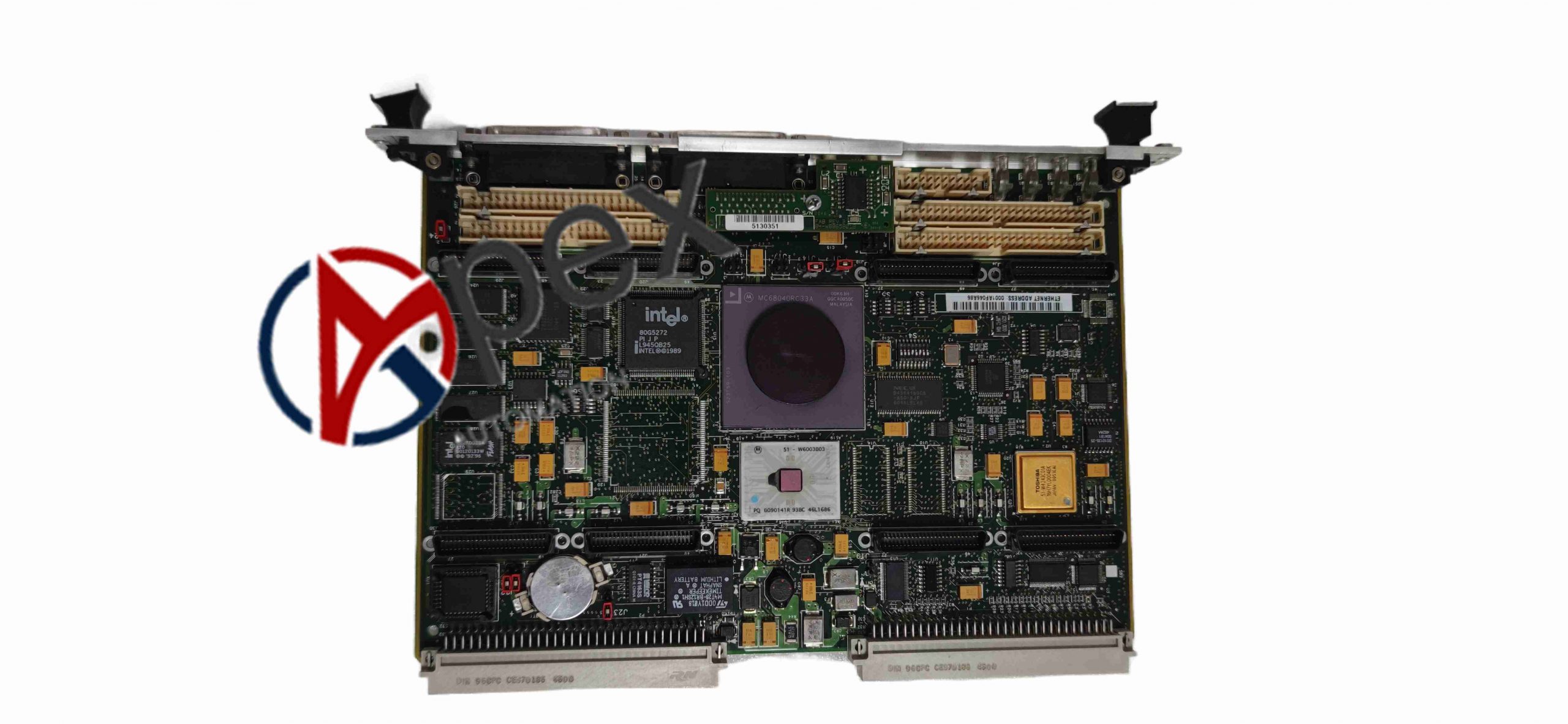

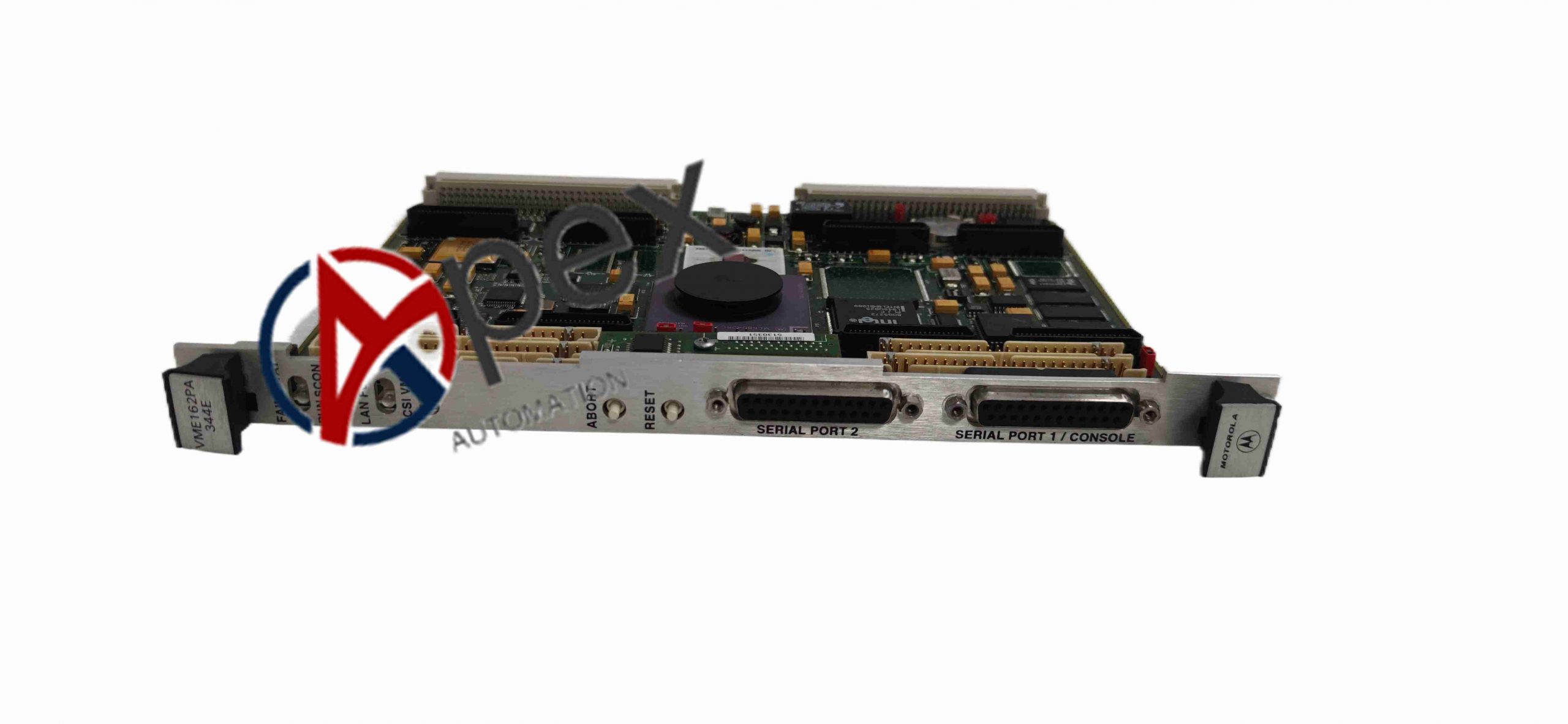

Structural Characteristics 6U VME single board, VME backplane connector, front panel Ethernet, serial port and LED indicators.
Working Principle 68040 processor executes embedded application firmware. The board communicates with other VME modules through VMEbus backplane and connects external devices via Ethernet and serial interfaces.
Installation Requirements Install board in 6U VME chassis, secure front panel screws. Apply anti-static protection when handling the board.
Usage Notes Cut off power before board insertion or removal. Prevent electrostatic damage. Monitor front LED status after power-up.
