Technical Specifications 68040 CPU; VMEbus interface; Onboard RAM and flash; Ethernet and serial ports; 6U VME board; Operating temperature 0~70°C.
Functional Features Embedded program execution. VMEbus master/slave communication. Network and serial console interface for debugging and data transmission.
Application Scenarios Legacy industrial control, automatic test equipment, VME-based simulation and monitoring systems.
Performance Parameters High reliability continuous operation; VMEbus data transfer; Onboard Ethernet communication.

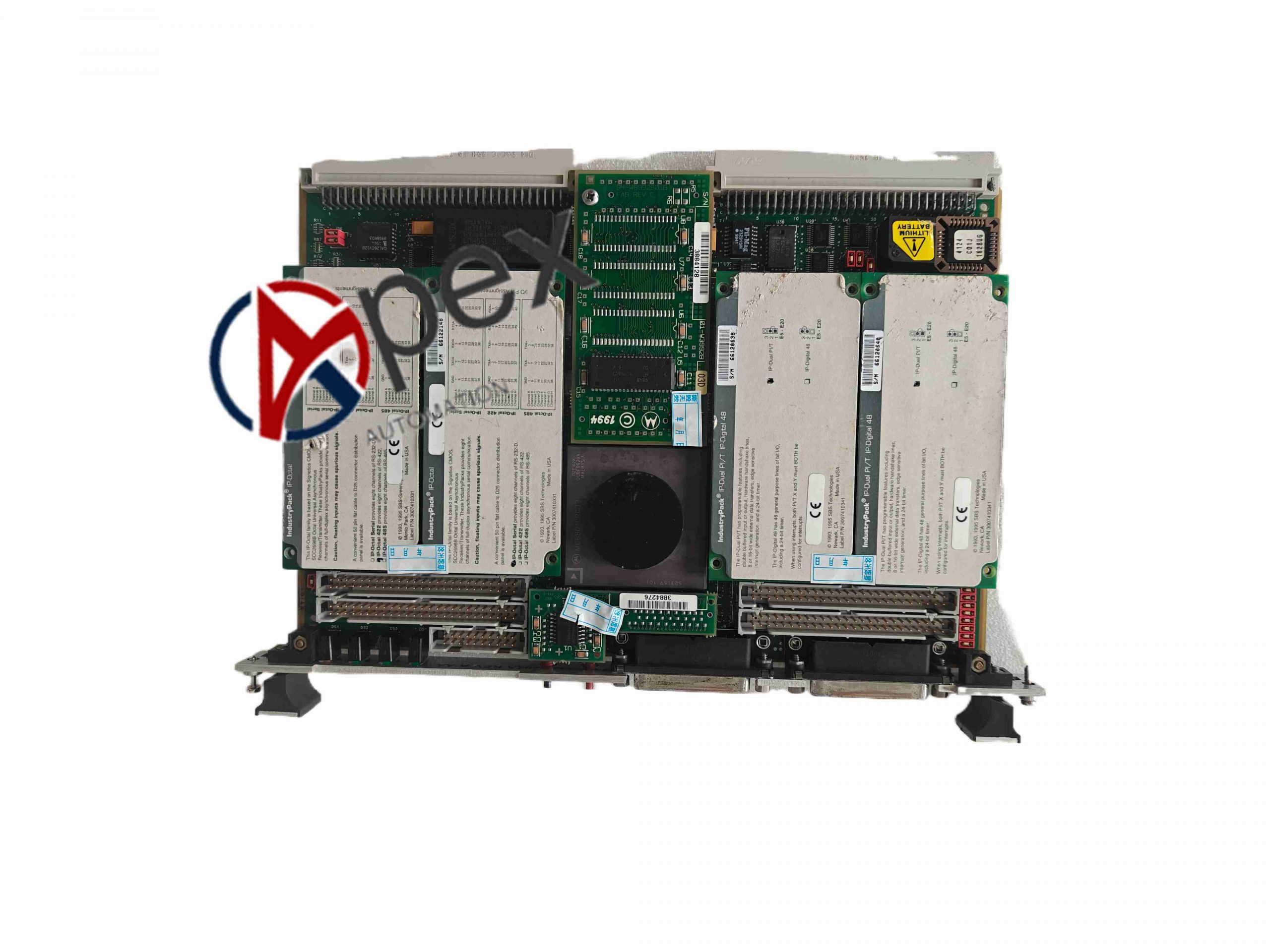

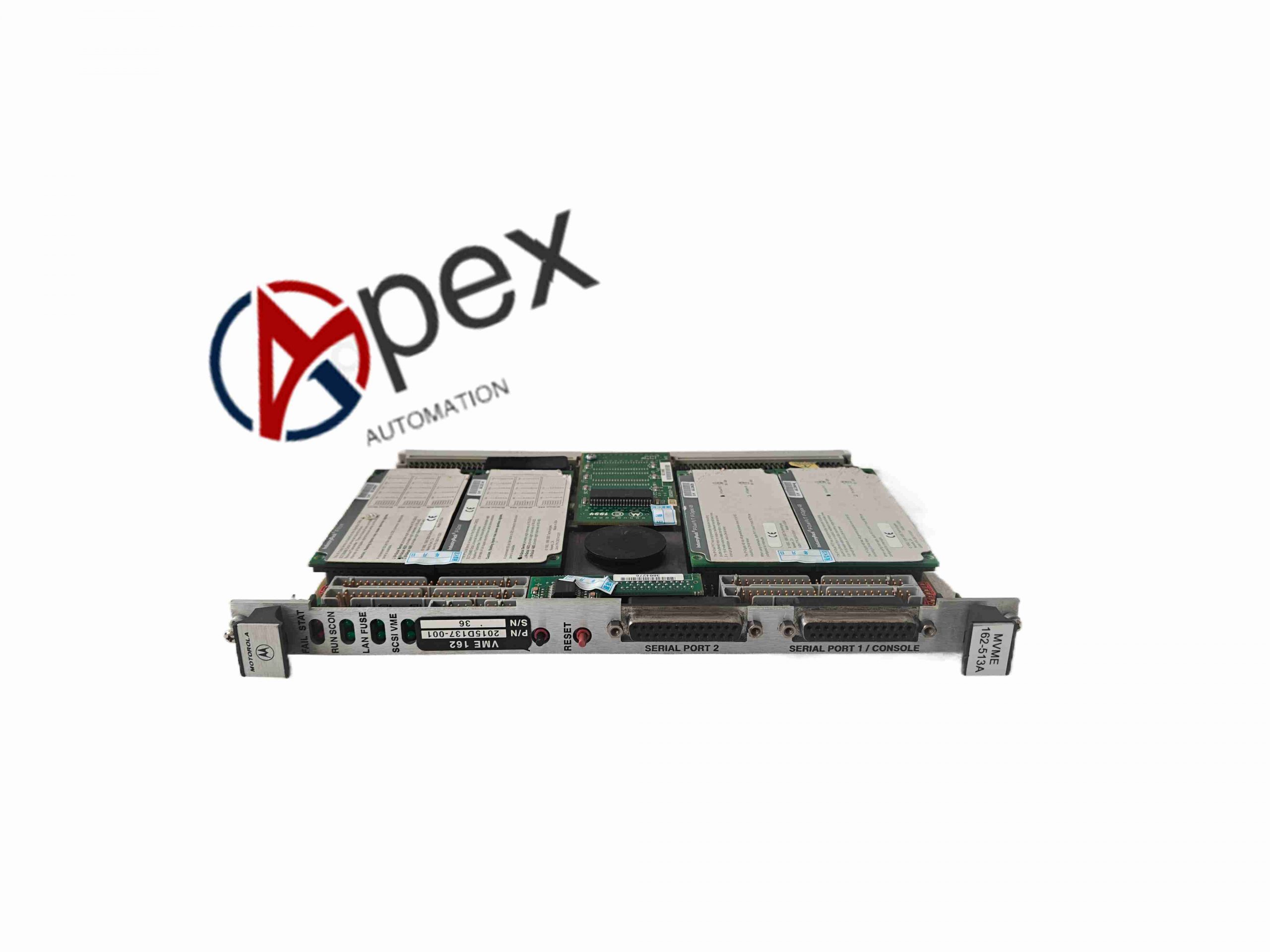

Structural Characteristics 6U VME single board, VME backplane connector, front panel communication ports and LED status indicators.
Working Principle The 68040 processor executes embedded software, accesses onboard memory, exchanges data with other VME modules over VMEbus, and communicates to external devices via Ethernet and serial ports.
Installation Requirements Insert into 6U VME chassis slot, fasten front panel screws. Anti-static protection is required.
Usage Notes Power off before installing or removing the board. Protect against electrostatic discharge. Check LED status after power on.
