Technical Specifications 68040 CPU; Expanded onboard RAM; VMEbus master/slave; Ethernet and serial ports; 6U VME form factor; Operating temperature 0~70°C.
Functional Features High performance embedded control. Large onboard memory for program and data storage. VMEbus inter-module communication, Ethernet network interface.
Application Scenarios Complex VME test systems, industrial control platforms, legacy aerospace and defense embedded applications.
Performance Parameters Larger memory capacity; Stable continuous operation; VMEbus parallel data transmission.

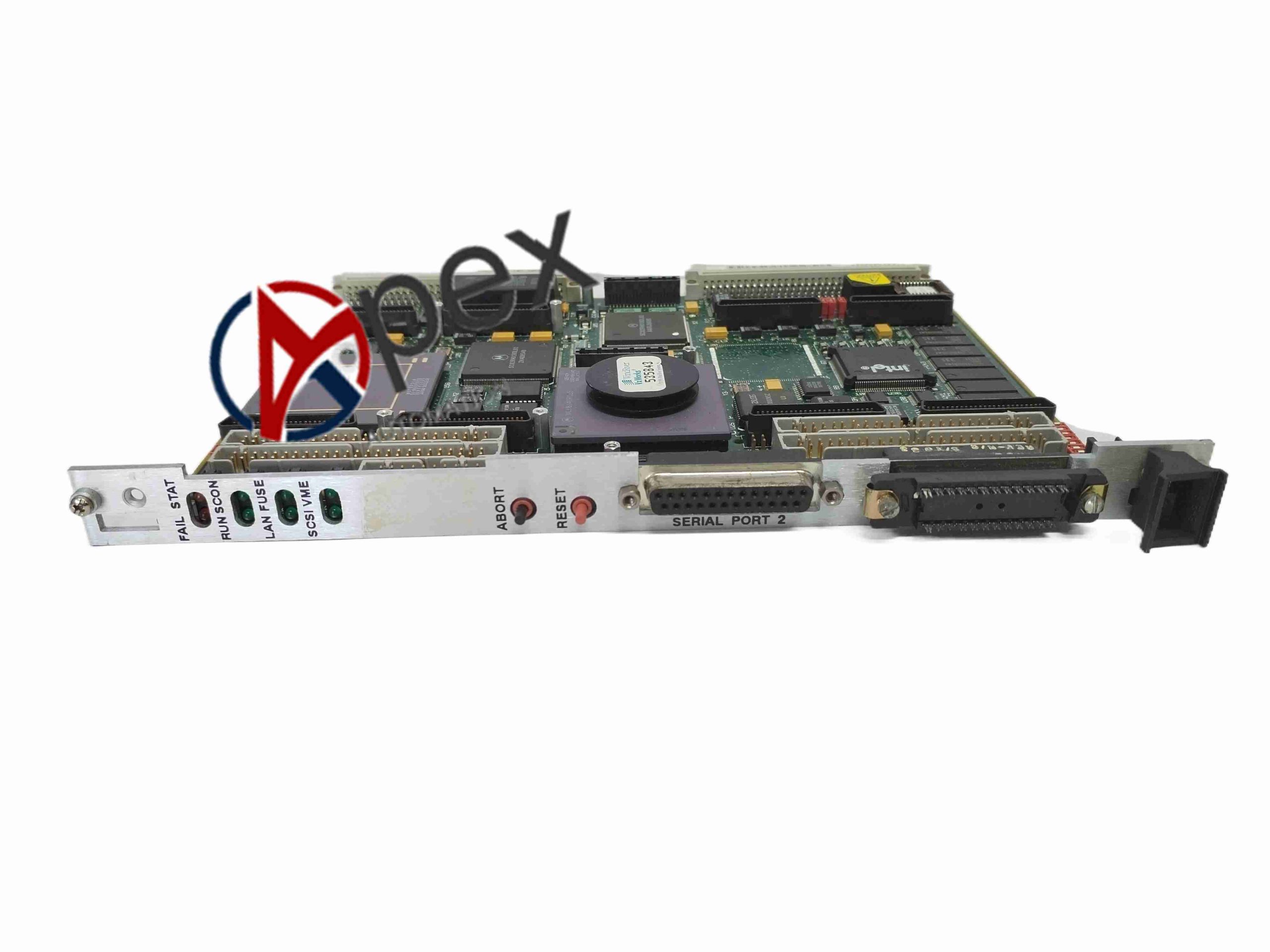

Structural Characteristics 6U VME single board, VME backplane connector, front panel Ethernet, serial port and status LED.
Working Principle 68040 processor runs embedded application, uses onboard large memory for program execution. It exchanges data with other VME boards through VMEbus and communicates externally via Ethernet and serial ports.
Installation Requirements Mount into 6U VME chassis slot and secure front panel screws. Wear anti-static wrist strap during handling.
Usage Notes Do not plug or remove board with power applied. Avoid static electricity damage to chips. Verify board boot status from front LED.
