Technical Specifications 68030 CPU; VMEbus interface; Onboard RAM and ROM; Serial and parallel I/O; VME 6U board; Operating temperature 0~70°C.
Functional Features Run embedded control program. VMEbus master/slave communication. Onboard memory for program and data storage. Serial port for console communication.
Application Scenarios Legacy industrial automation, military control, test equipment, old VME-based process control systems, used as embedded main controller.
Performance Parameters Stable embedded operation; VMEbus data transfer; Onboard peripheral interface.

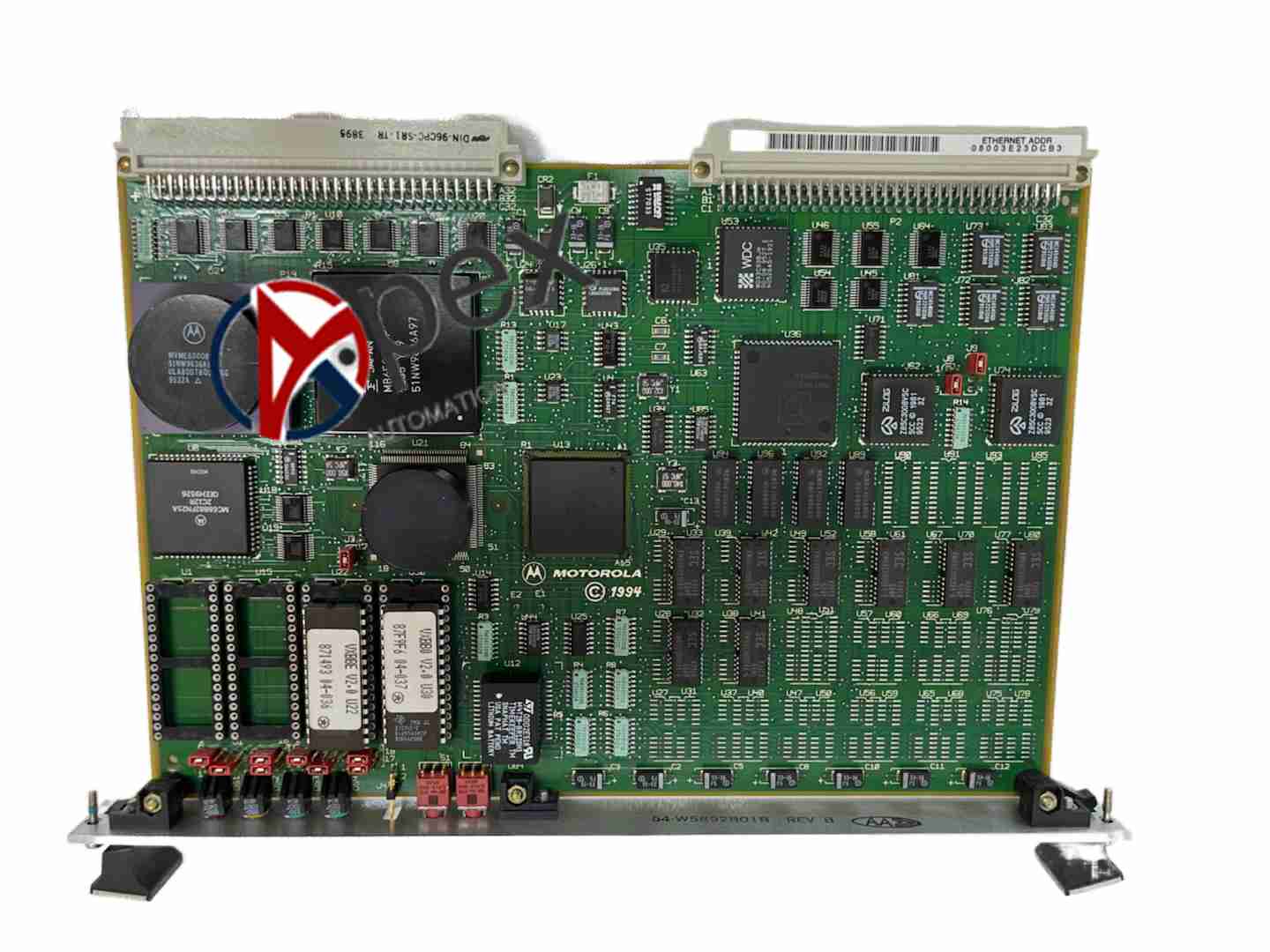

Structural Characteristics 6U VME standard single board, VME rear connector, front panel serial port and status LED indicators.
Working Principle The 68030 processor executes embedded application program. The board communicates with other VME modules through VMEbus backplane, controls onboard peripherals and exchanges data with other VME boards.
Installation Requirements Insert board into 6U VME chassis slot. Secure front panel screws. Connect serial console cable to front panel port.
Usage Notes Power off before inserting or removing VME board. Handle board with anti-static wrist strap. Avoid static damage to circuit components.V
