Technical Specifications 4 analog input channels, signal type configurable 4-20mA / 0-10V. Resolution:12bit. Power supply:24VDC. Operating temperature:0~+60°C.
Functional Features Multi-type analog signal input. Over-range detection. Channel isolation. Self-diagnosis. LED fault indication.
Application Scenarios Legacy process control, pressure, temperature and flow transmitter signal collection.
Performance Parameters Accuracy ±0.25%FS, 12bit resolution. Operating temperature:0~+60°C.

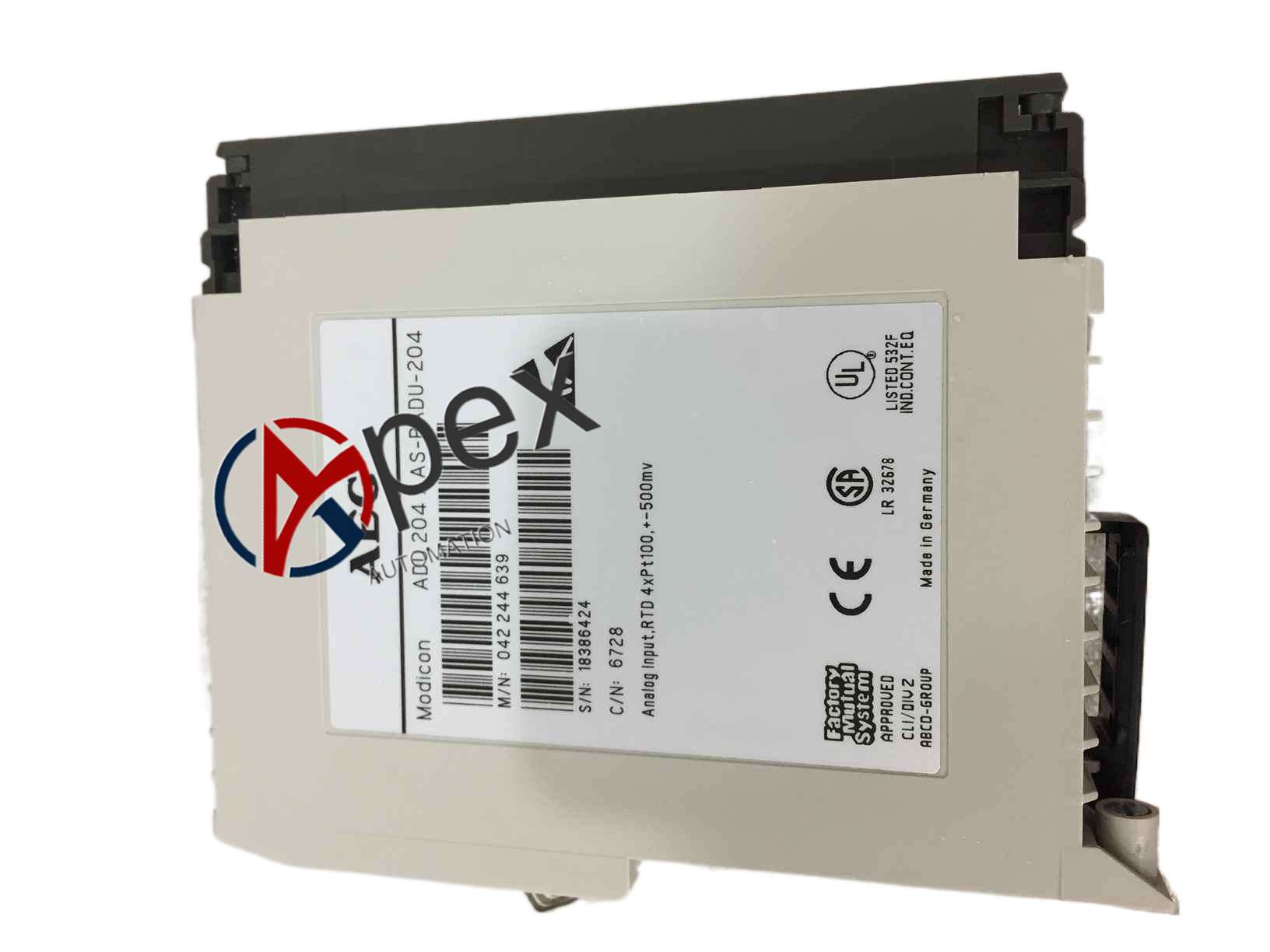

Structural Characteristics Rack plug-in analog card, front LEDs, analog terminal block, backplane connector.
Working Principle Convert field analog voltage/current signal into digital value through ADC circuit and send digital data to Modicon controller.
Installation Requirements Install into Modicon 800 rack. Use shielded twisted pair for analog signal wiring.
