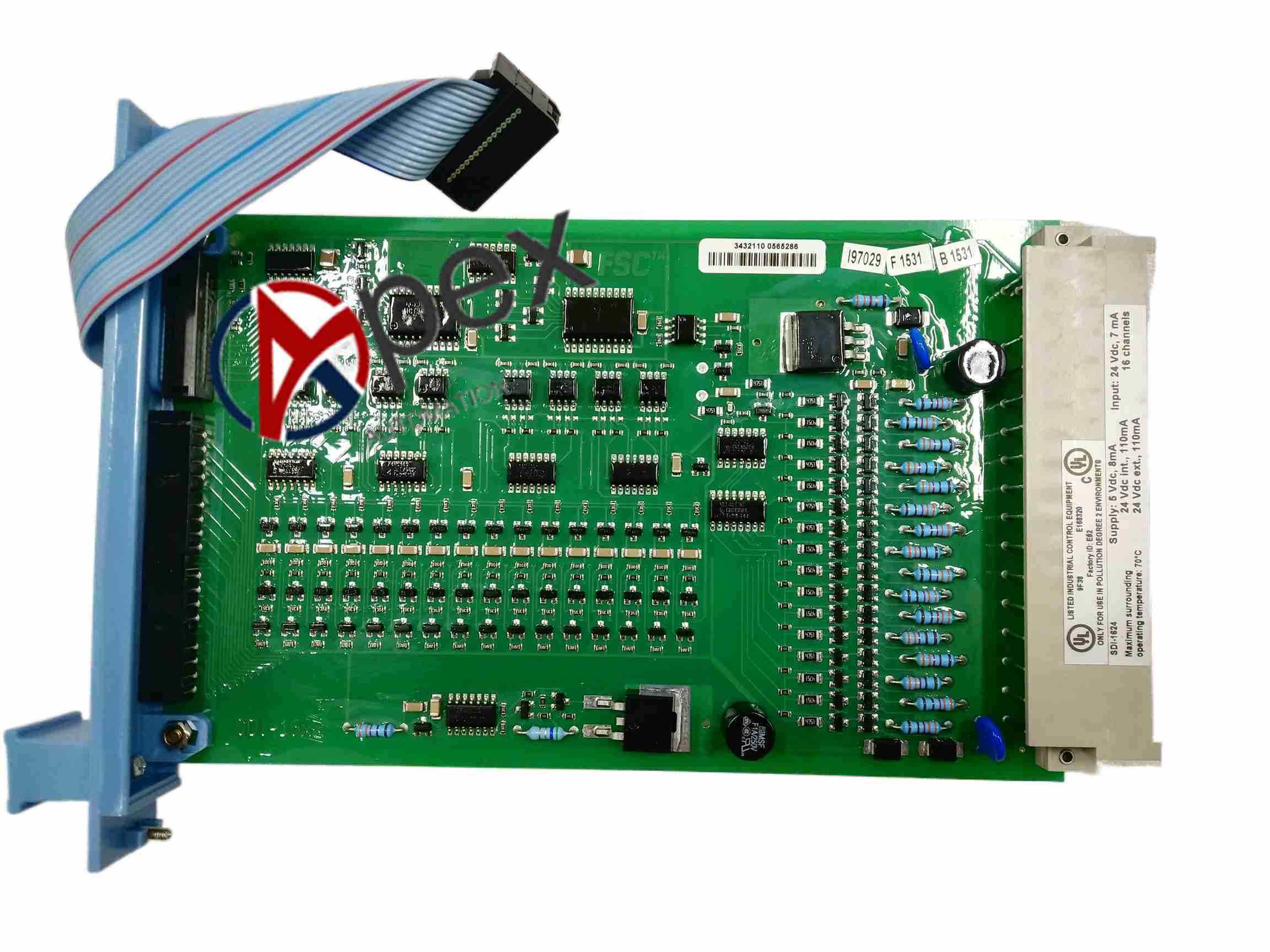

Technical Specifications 16 signal channels; 24 V DC nominal supply; 4–20 mA analog signal support; SIL 2/3 compatible; DIN rail or carrier mounting; operating temperature range for industrial environments.
Functional Features Gas and flame detector signal termination; loop power supply; signal conditioning; circuit protection; SIL-rated signal path design.
Application Scenarios Fire and gas detection systems, industrial gas monitoring, hazardous area detection circuits, process plant safety systems.
Performance Parameters Stable signal transmission; high noise immunity; reliable detection signal integrity; wide environmental tolerance.
Material Composition Flame-retardant industrial plastic housing, copper alloy terminals, analog signal conditioning components, metal shielding.
Structural Characteristics DIN rail mountable module, labeled front terminals, rear system connection interface, robust industrial construction.
Working Principle Interfaces with field gas and flame detectors, provides loop power and signal conditioning, and routes detection signals to the safety control system through isolated signal paths.
Installation Requirements Mount in safety control cabinet; connect detector wiring to front terminals; connect system cable to rear interface; implement proper grounding and shielding.
