Technical Specifications Supports analog input and discrete signal acquisition; Redundant communication bus interface; Operating temperature: 0~60°C; Panel status LED indicators.
Functional Features Signal conditioning and isolation; Fault self-diagnosis; Hot swap capability; Communicate with FCP controller via field bus.
Application Scenarios Petrochemical, power, chemical process control DCS system, field signal acquisition.
Performance Parameters Signal isolation: 1500V; Communication rate conforms to Honeywell field bus protocol.

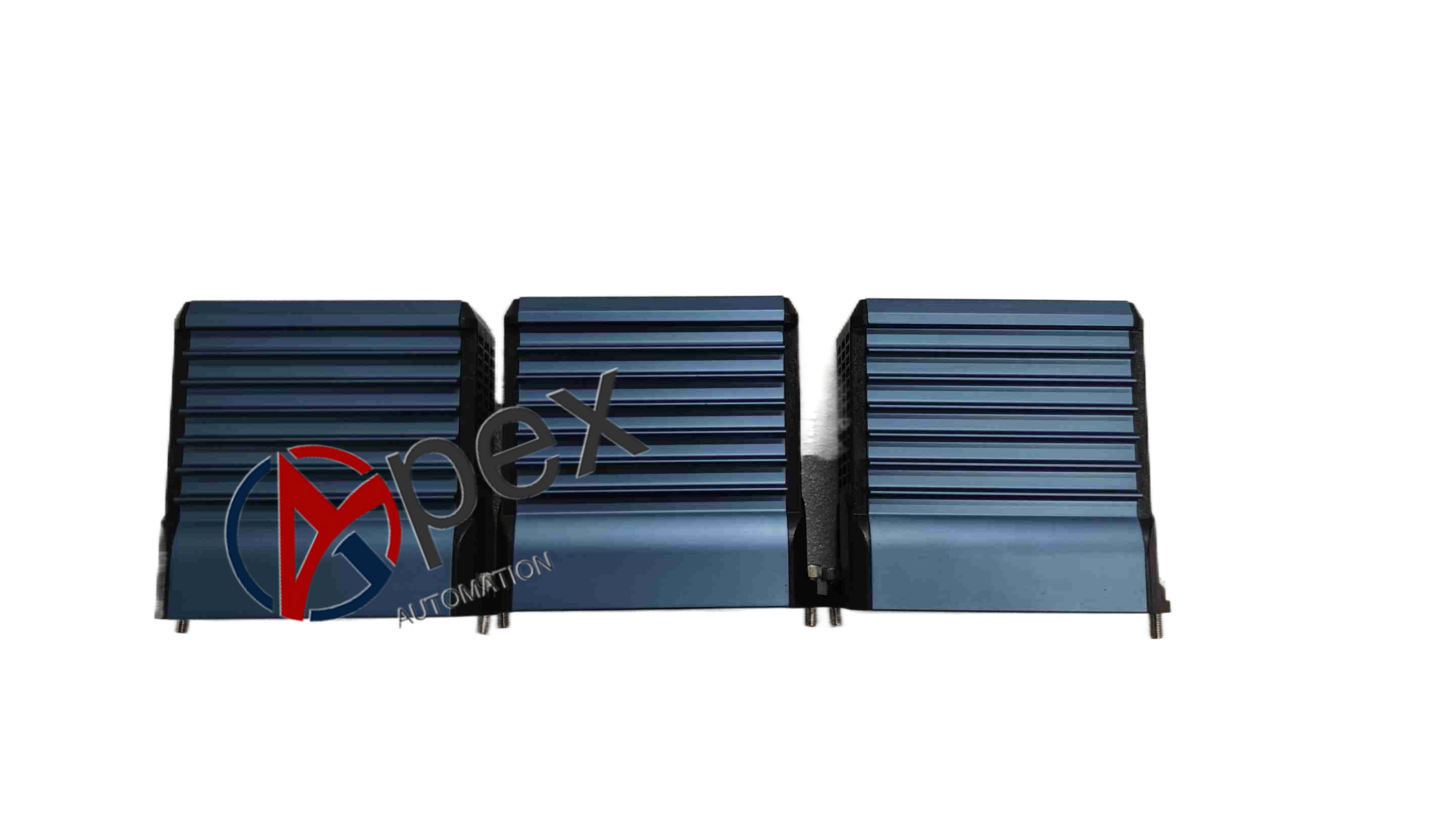

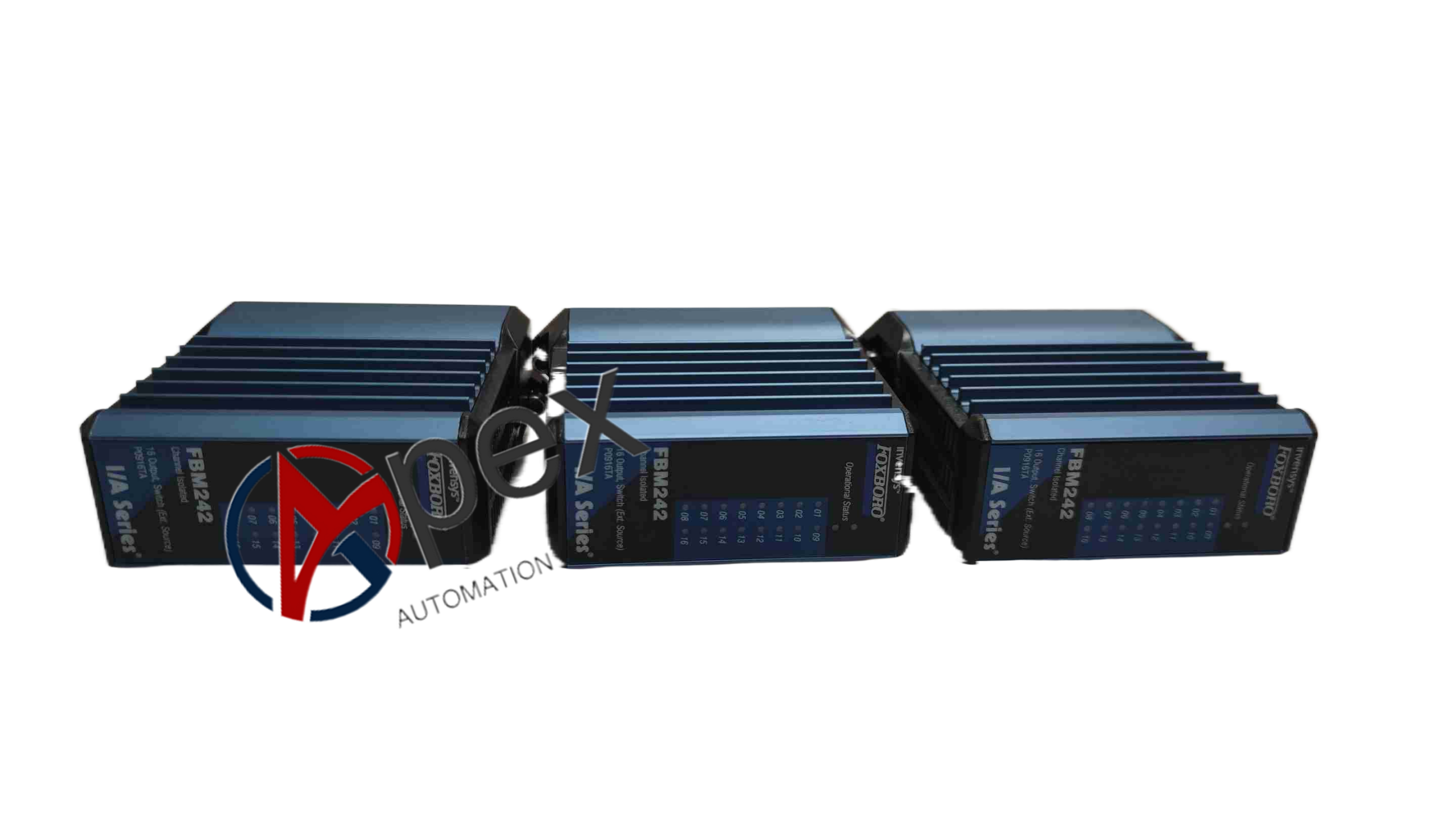

Structural Characteristics Rack-mounted module, front status indicator LEDs, field wiring terminal assembly.
Working Principle Collect field analog or digital signals, perform isolation and conditioning, transmit processed data to the DCS controller through field bus, and receive control commands from controller.
Installation Requirements Install on designated DCS rack; Use matching field terminal cable; Keep away from high voltage interference cables.
Usage Notes Check module status indicators after power on. Do not hot swap without system permission. Calibrate analog channels periodically.
