Technical Specifications Digital input channels; Genius bus communication; Channel-level isolation; Overvoltage protection.
Functional Features Field switch signal acquisition; Open/short circuit detection; Signal filtering; Communicate to controller via Genius bus.
Application Scenarios Conveyors, machine tools, packaging equipment, field limit switch and proximity switch signal collection.
Performance Parameters Input signal filtering to suppress transient noise; Channel fault diagnostic function.

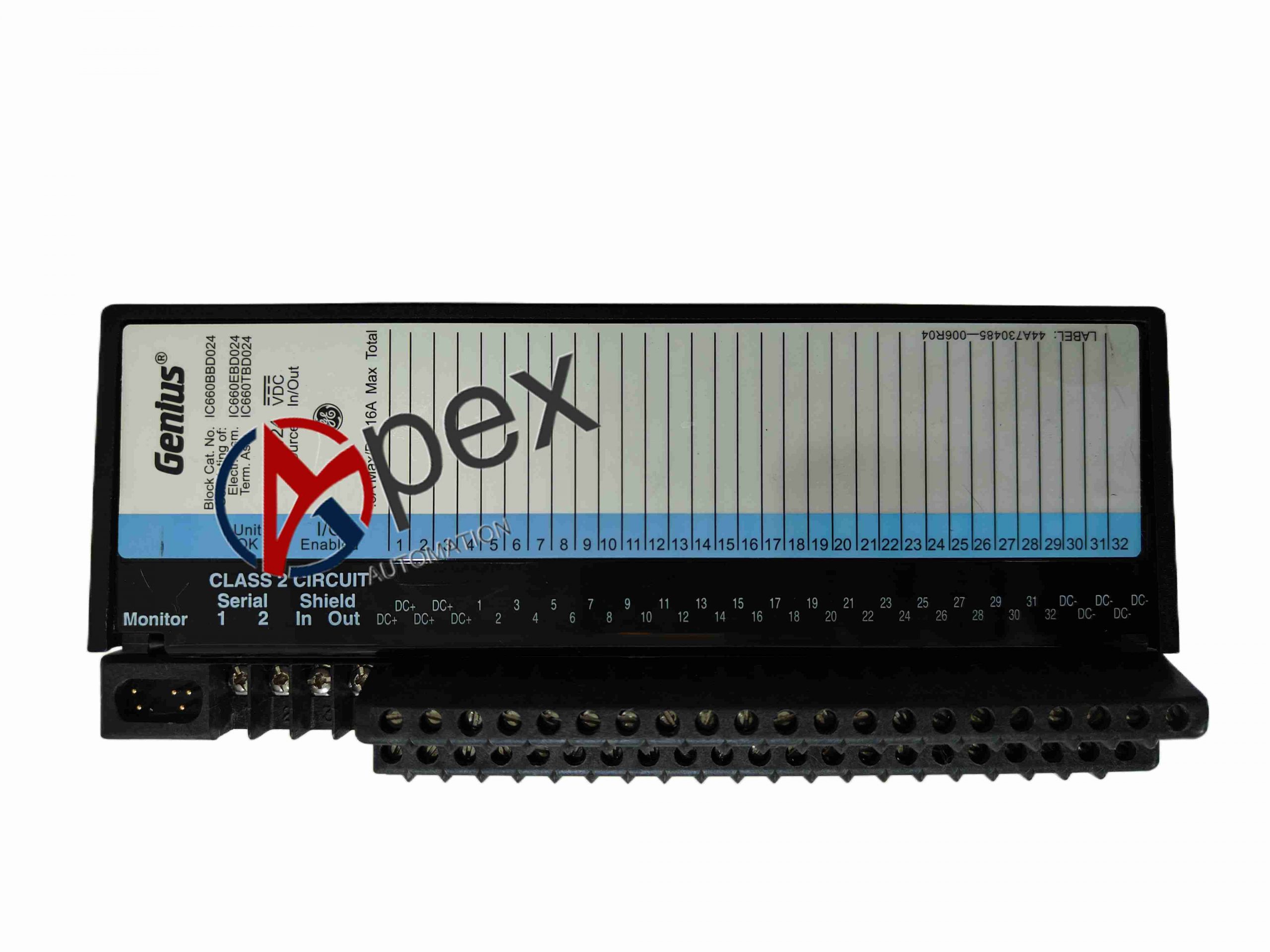

Structural Characteristics Rack mount I/O module, front LED channel status indicators, field wiring terminal block.
Working Principle Detect the on-off state of field discrete devices, convert the signal into digital data and transmit to the controller through Genius bus.
Installation Requirements Install on Genius I/O rack; Separate field input wiring from power cable; Ensure reliable grounding.
Usage Notes Verify input voltage range before connecting field devices. Check channel status indicators after power on.
