Technical Specifications Dedicated turbine control processor, backplane interface, multi-channel signal processing, powered by rack backplane.
Functional Features Executes turbine control logic, collects field signals, outputs control commands, system fault diagnosis and status reporting.
Application Scenarios Gas turbine, steam turbine control cabinet in power plant, heavy industry power generation equipment.
Performance Parameters High reliability for continuous power plant operation, built-in self-test function, fault status indication.

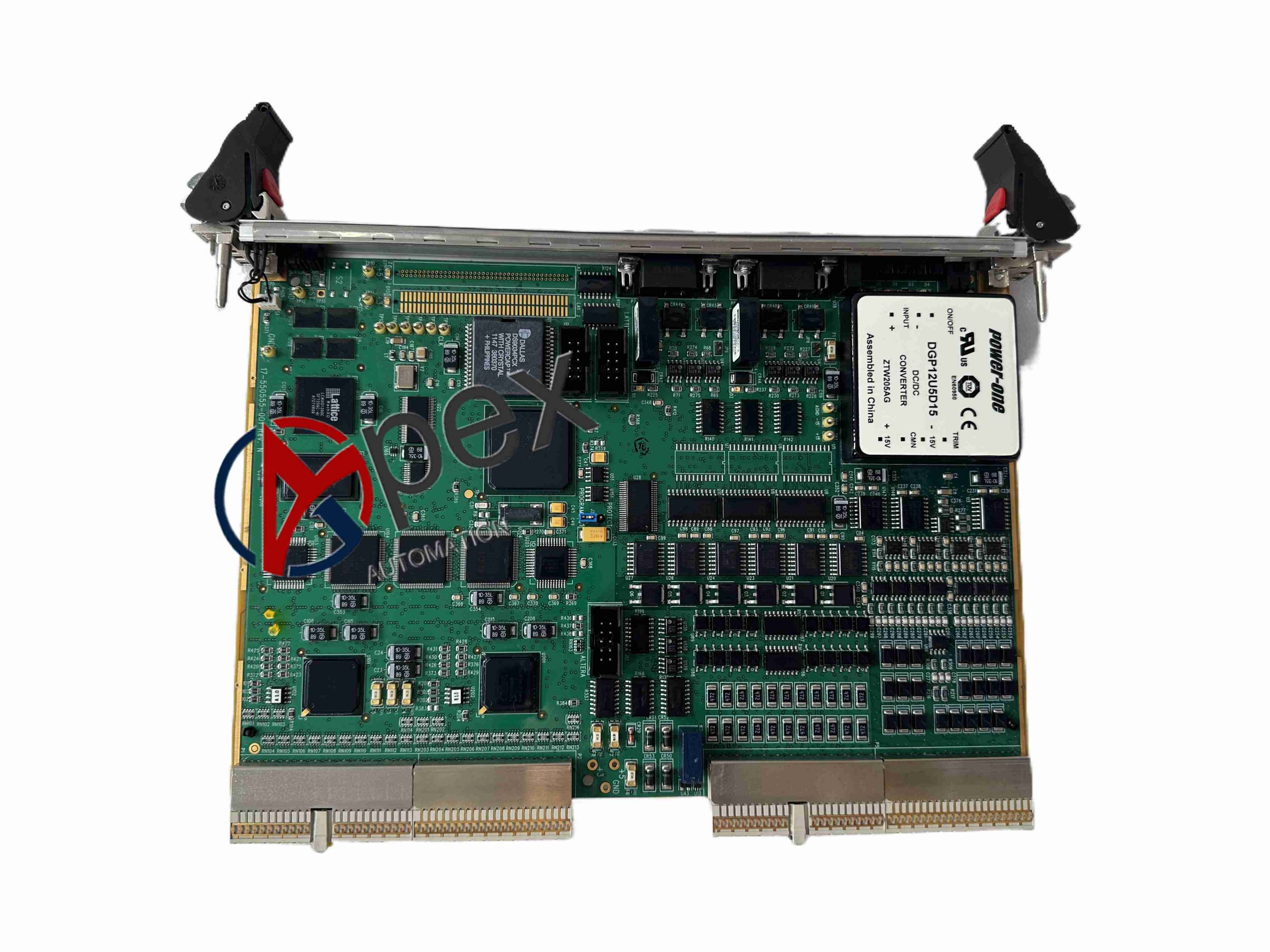

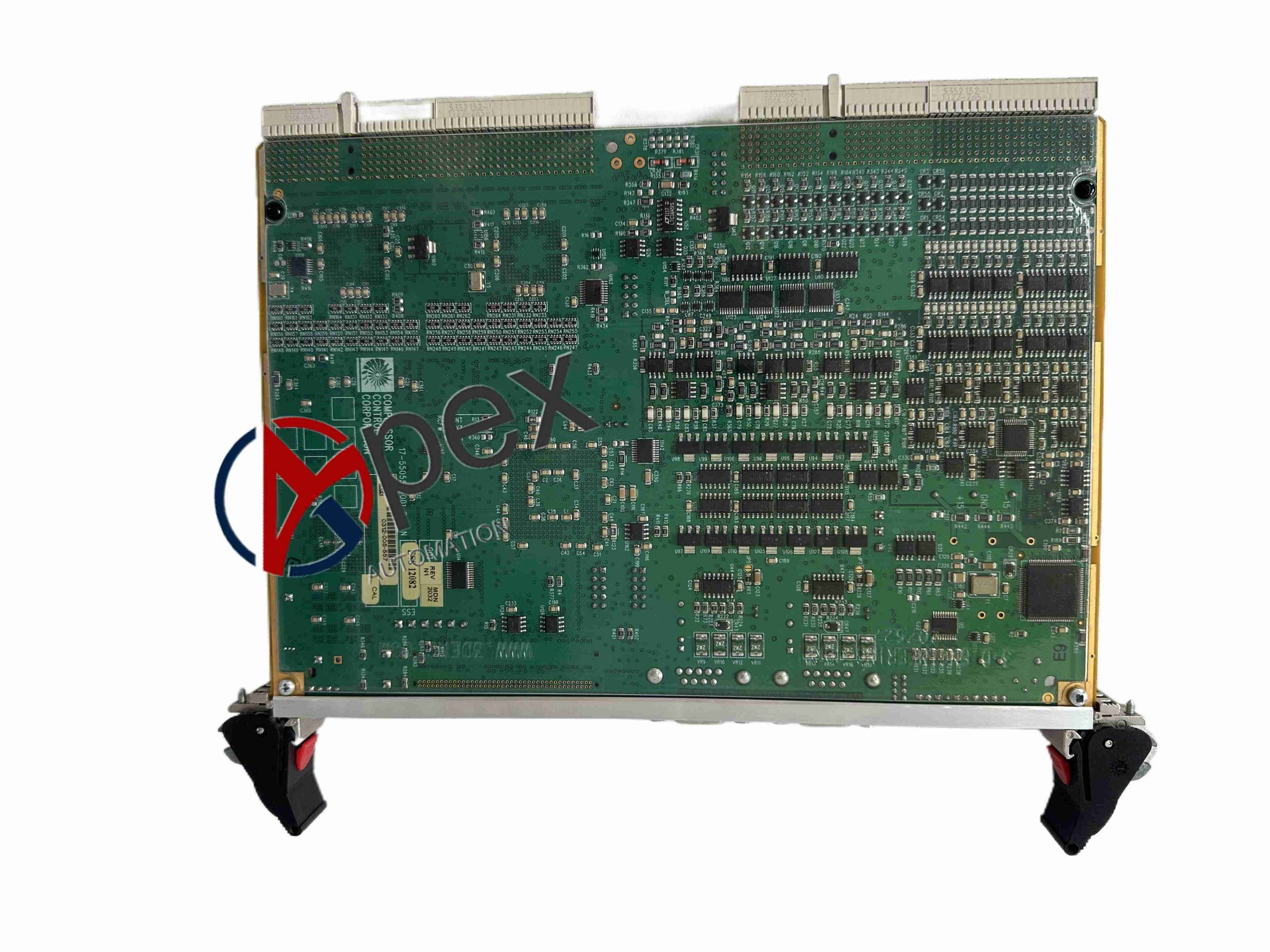

Structural Characteristics Plug-in rack circuit board, edge connector for backplane connection, surface mounted components with metal shielding.
Working Principle Communicates with other boards via rack backplane, runs turbine control algorithm, monitors all critical operating parameters of turbine unit.
Installation Requirements Insert into designated slot of Mark V rack, ensure edge connector fully engaged, follow static protection procedure.
Usage Notes Use anti-static wristband when handling board. Do not hot swap when rack power is on.
