Technical Specifications 8-axis control capacity, Ethernet communication, analog or pulse output, encoder input, abundant digital I/O, 24V DC supply.
Functional Features Multi-axis synchronous interpolation, electronic gearing, cam profiling, position latching, overtravel and following error protection.
Application Scenarios Multi-axis assembly machines, printing converting equipment, robotic gantry systems, automated production lines.
Performance Parameters Powerful trajectory computation, high synchronization precision among axes, stable long-time continuous operation.

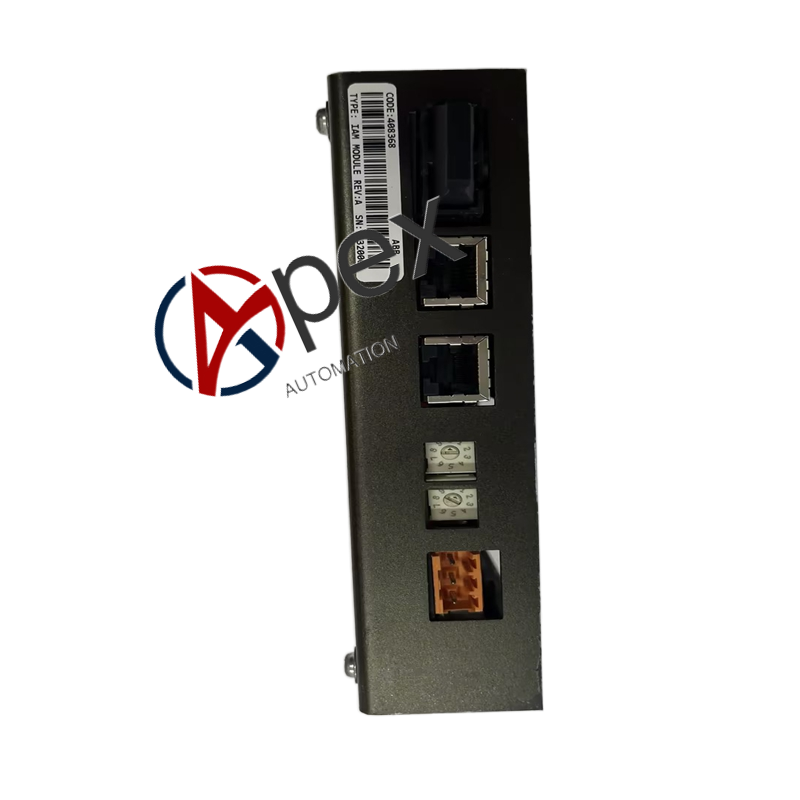

Structural Characteristics DIN rail mount metal housing, terminal blocks for power, encoder and digital signals, Ethernet port for host connection.
Working Principle Receives motion instructions over Ethernet, computes coordinated motion profiles for 8 axes, sends commands to drives and closes position loop with encoder feedback.
Installation Requirements Mount on DIN rail inside cabinet, use shielded cables for encoder signals, ensure stable Ethernet connection.
Usage Notes Configure IP address properly for network communication. Set following error limits according to mechanical system.
