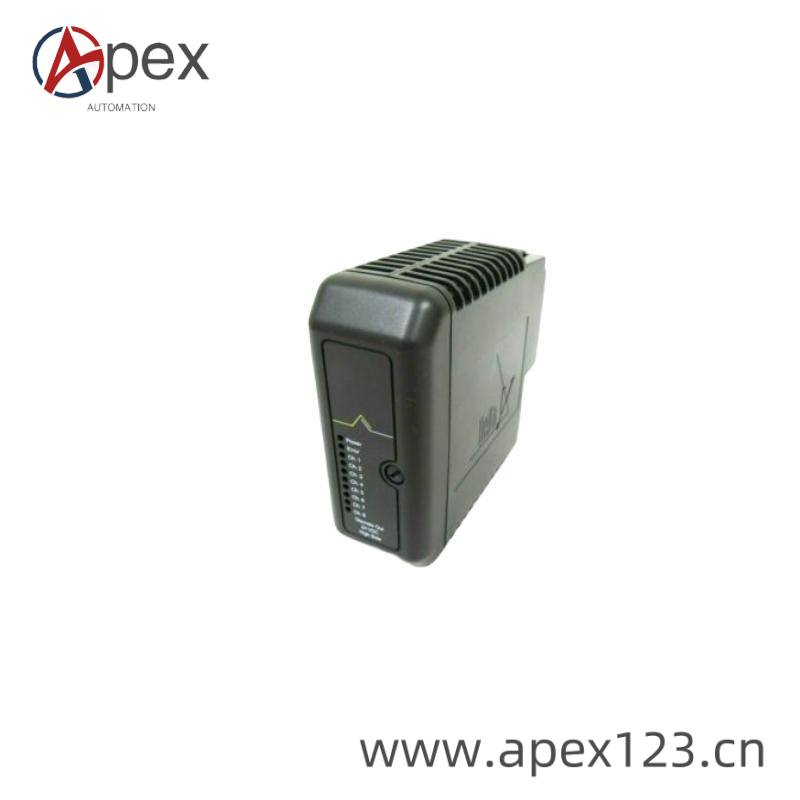

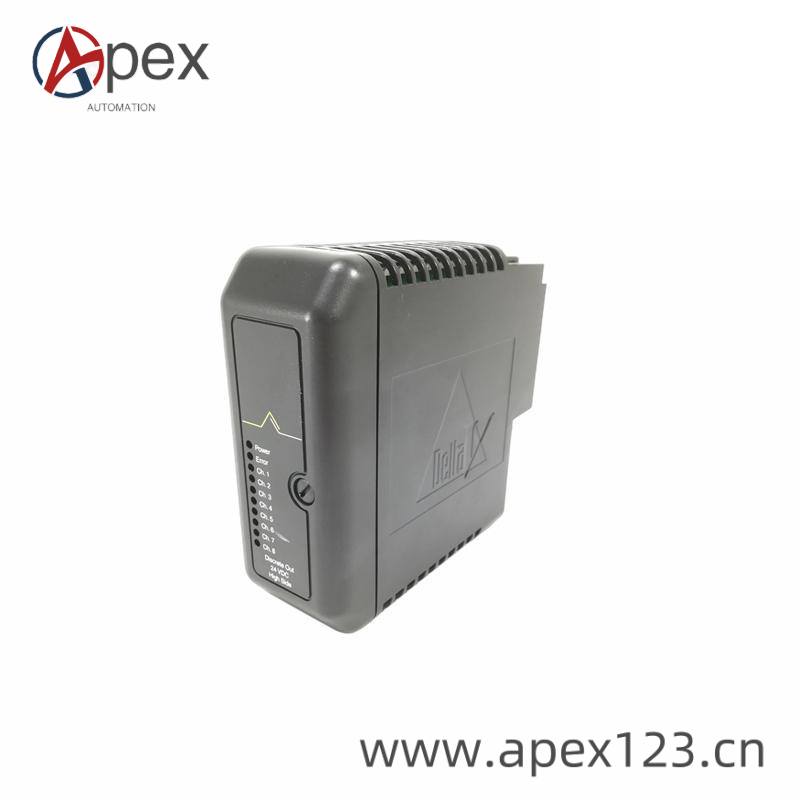

FISHER-ROSEMOUNT KJ3001X1-BJ1 High Side Module for DeltaV System
The FISHER-ROSEMOUNT KJ3001X1-BJ1 High Side Module delivers robust field power management for DeltaV control systems. Engineered for industrial automation, this module provides reliable high-side switching in demanding environments like chemical plants and manufacturing facilities. Its IP67-rated housing ensures operational integrity in harsh conditions while maintaining precise signal control for critical processes.
Technical Specifications
| Parameter | Value |
|---|---|
| Product ID | KJ3001X1-BJ1 |
| Manufacturer | FISHER-ROSEMOUNT |
| Module Type | High Side Module |
| Input Voltage Range | 12V to 36V DC |
| Operating Temperature | -40°C to +85°C |
| Protection Rating | IP67 |
| Switching Frequency | Up to 20kHz |
| Power Consumption | < 2W |
| Local Bus Power | 12 VDC, 45 mA |
| Field Power Rating | 60 VDC (24 VDC nominal), 6A per card |
| Channel Capacity | 60 VDC, 1.5A per channel (max 6A/card) |
| Weight | 0.5kg |
Application Scenarios
This module is essential for DeltaV distributed control systems in industries including:
- Chemical processing plants – valve control systems
- Power generation facilities – turbine monitoring
- Manufacturing lines – motor control circuits
- Oil & gas refineries – pump station automation
Compatible with DeltaV series controllers and I/O cards. For specific integration requirements or compatible accessories, contact our technical team.
About Apex Automation
Founded in 2014, Apex Automation provides ready-to-ship industrial automation solutions worldwide. Our service division specializes in optimizing control systems across industries, delivering both new equipment and legacy system support.
We offer professional pre-sales technical consultation and comprehensive after-sales support, including a 1-year warranty on all products. If you require custom configurations or cannot locate specific models, our engineers provide prompt solutions. For pricing details and immediate assistance:
