Technical Specifications Input 24V DC, output 32V DC fieldbus power, 33W power rating, galvanic isolation, fieldbus H1 compliant.
Functional Features Isolated fieldbus power injection, overcurrent protection, short circuit protection, power status indication.
Application Scenarios Foundation Fieldbus H1 network power supply, field device power feeding, process control fieldbus system.
Performance Parameters Stable output voltage, high isolation voltage, fast overcurrent protection, low output ripple.
Material Composition Metal shielding case, DC-DC isolation converter, protection circuit, gold plated terminal connectors.

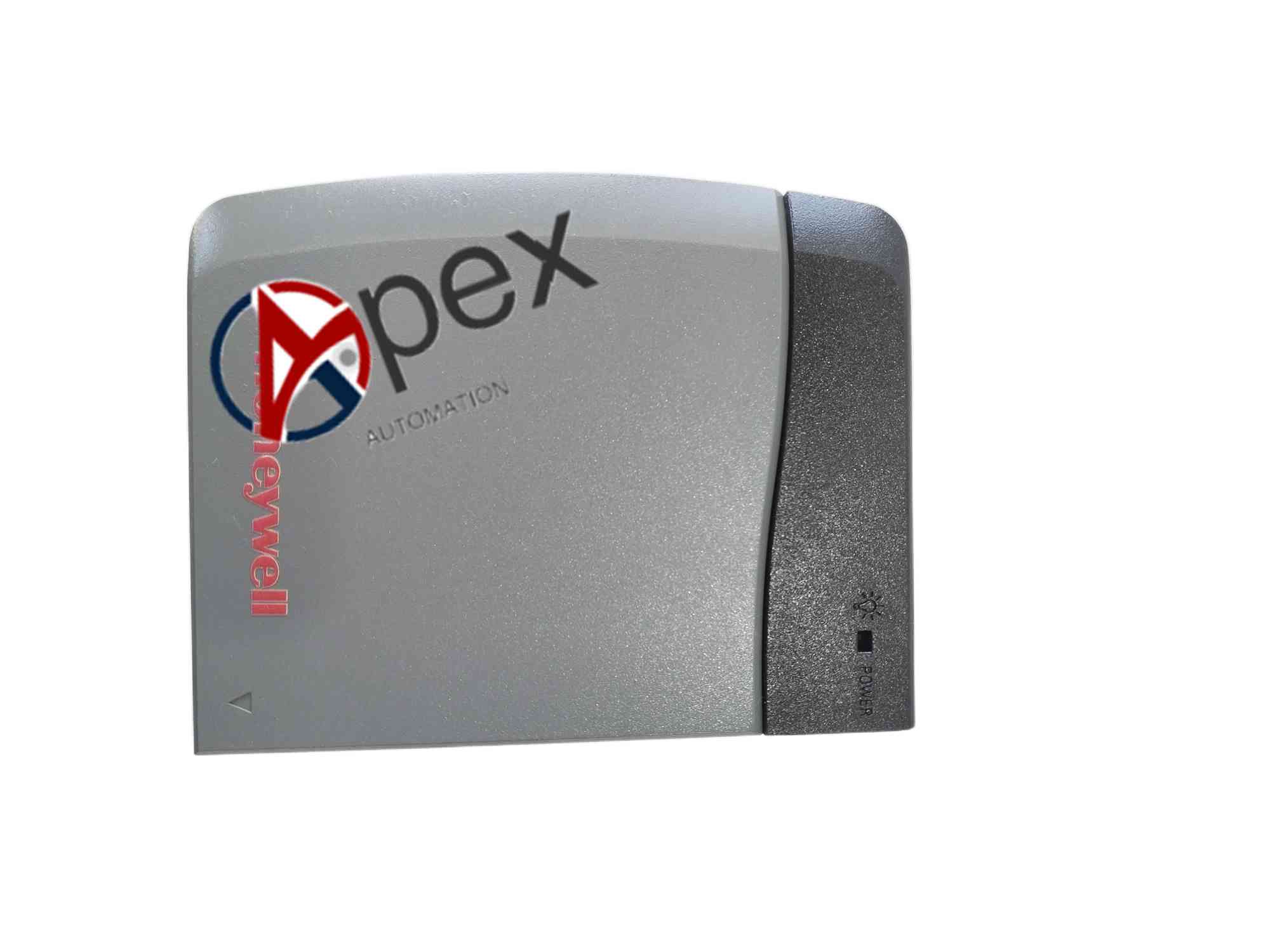

Structural Characteristics DIN rail mount design, front power status LED, terminal blocks for input and fieldbus connection.
Working Principle Converts input 24V DC into isolated 32V DC fieldbus power, and injects the power onto the fieldbus cable to power fieldbus devices while maintaining signal isolation.
Installation Requirements Mount on DIN rail in control cabinet, connect input 24V DC supply, wire fieldbus segment through the power adapter.
Usage Notes Calculate total device power consumption before sizing. Do not exceed maximum power rating. Ensure proper system grounding.
