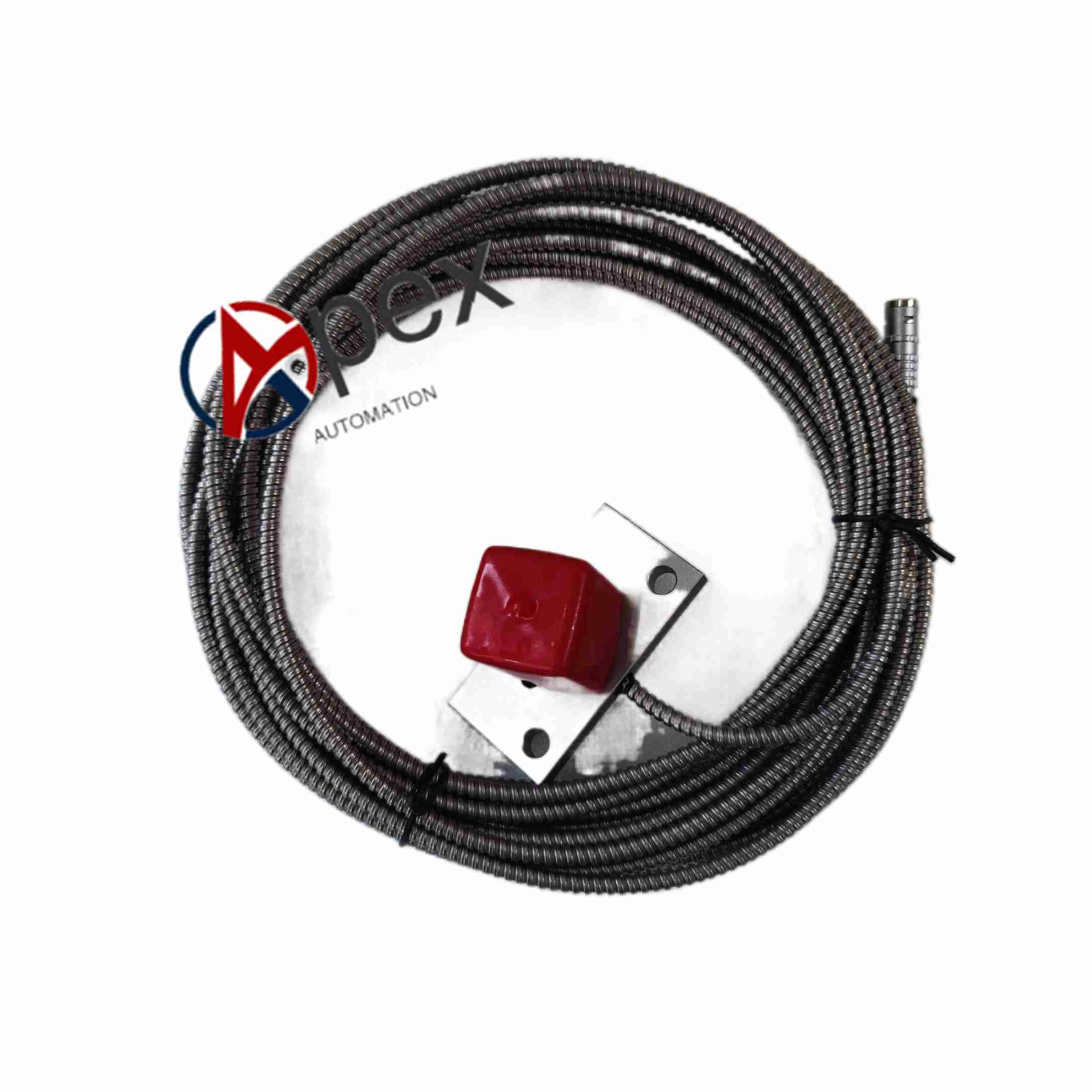

Technical Specifications 11mm eddy current probe; matched with CON series converter; 0~4mm measuring range; probe operating temperature -40~180°C.
Functional Features Non-contact displacement measurement. High temperature resistance. Compatible with EPRO CON signal converters.
Application Scenarios Steam turbine, gas turbine, centrifugal compressor, generator shaft vibration and thrust position monitoring.
Performance Parameters 0~4mm linear measuring range; High frequency response; No mechanical wear during measurement.
Structural Characteristics Stainless steel probe body, integrated coaxial cable, threaded body for mounting bracket installation.
Working Principle High frequency AC in probe coil creates eddy current on metal shaft. The coil impedance varies with probe-shaft gap, which is converted to analog signal by matched converter.
Installation Requirements Mount probe in holder and adjust air gap to linear range. Connect coaxial cable to corresponding CON converter. Calibrate gap voltage.
Usage Notes Probe cable cannot be arbitrarily modified. Avoid metal debris near probe tip.
