Technical Specifications 11mm eddy current probe; CON011 converter; 0~4mm measuring range; analog voltage output; probe temperature -40~180°C.
Functional Features Eddy current non-contact sensing. CON011 signal conditioning. Cable break and short circuit detection.
Application Scenarios Steam turbine, gas turbine, compressor and generator vibration and thrust bearing monitoring.
Performance Parameters 0~4mm linear range; High frequency response; Cable fault diagnostic function.

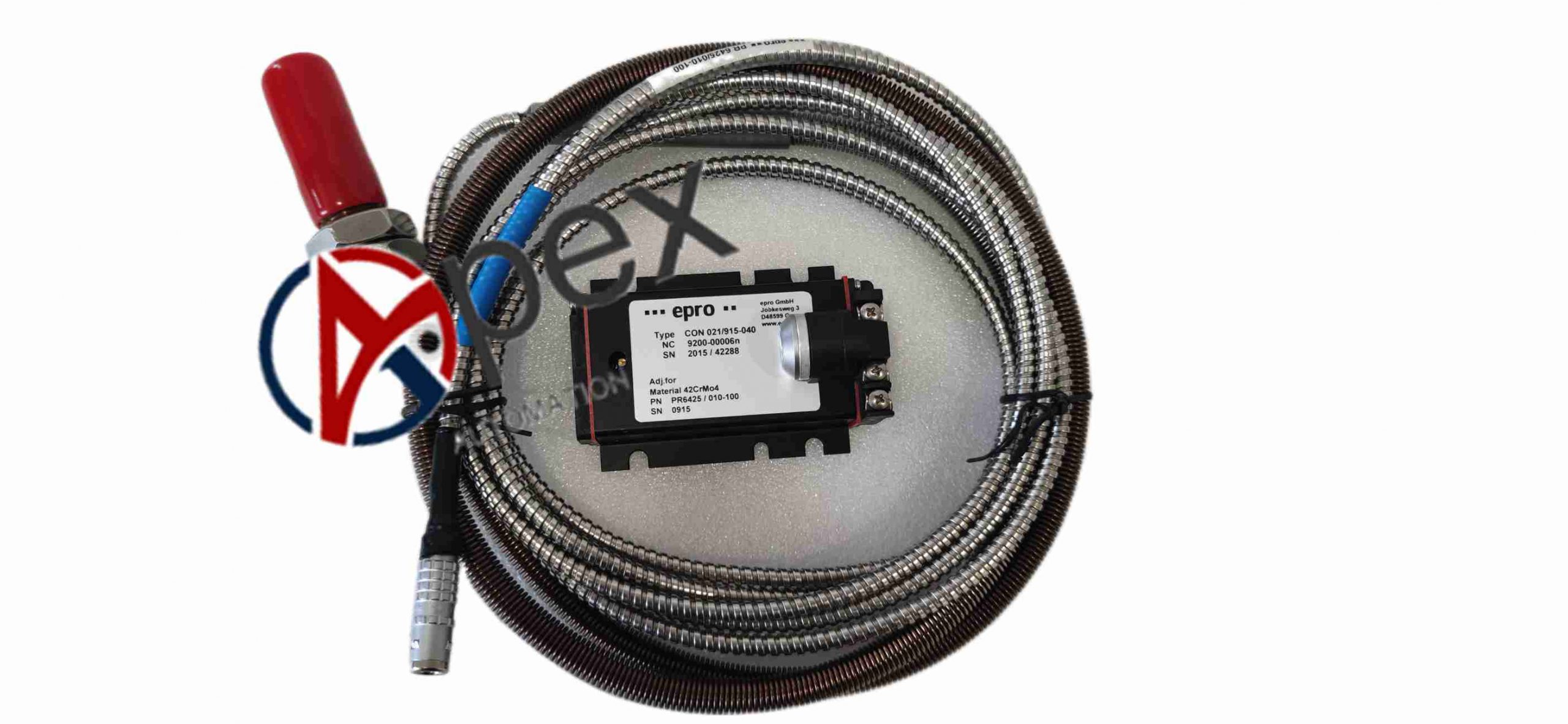

Structural Characteristics Stainless steel probe body, dedicated coaxial cable, DIN rail CON011 converter with terminal block and LED.
Working Principle The converter supplies high frequency excitation to probe coil. Eddy current on shaft surface changes coil impedance, converted to analog output voltage by CON011.
Installation Requirements Mount probe bracket and adjust air gap. Connect probe cable to CON011 converter. Wire power and analog output.
Usage Notes Do not bend probe cable sharply. Check gap voltage before machine startup.
