Technical Specifications 11mm probe; CON011 converter; 0~4mm measuring range; analog voltage output; probe temperature -40~180°C.
Functional Features Non-contact eddy current displacement measurement. CON011 signal conditioning. Cable fault monitoring.
Application Scenarios Turbine, compressor, generator shaft vibration and thrust position monitoring in power and petrochemical plant.
Performance Parameters Wide linear measuring range; High temperature resistance; Analog output proportional to gap distance.

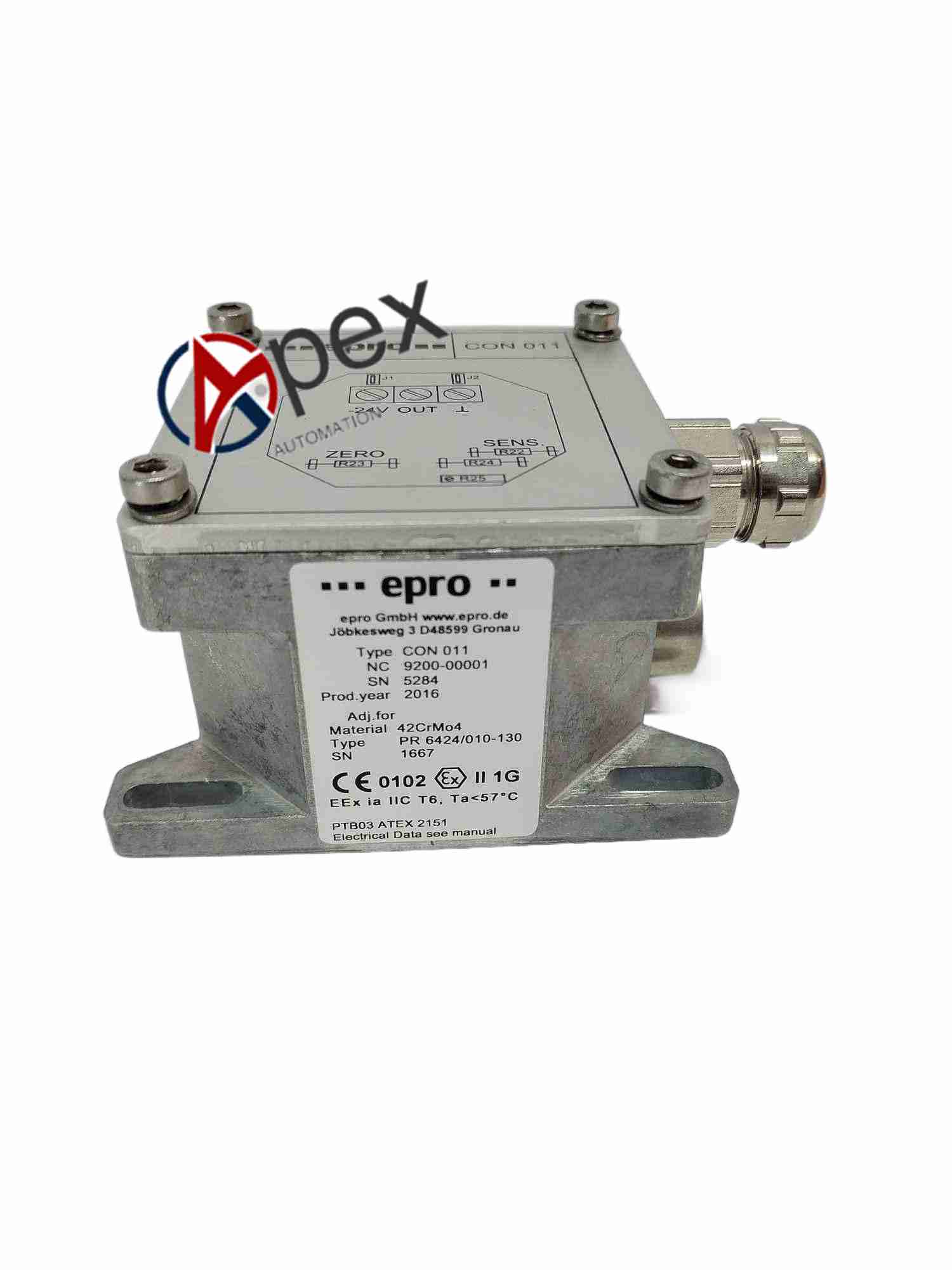

Structural Characteristics 11mm metal probe, coaxial cable, DIN rail CON011 converter with terminals and status LEDs.
Working Principle Probe coil induces eddy current on rotating shaft. CON011 converter detects coil impedance change and outputs analog voltage corresponding to probe-shaft gap.
Installation Requirements Install probe into bracket, adjust air gap. Connect probe cable to CON011 converter. Wire analog output to monitoring system.
Usage Notes Use matched probe-cable-converter set. Verify linear range during commissioning.
