Technical Specifications 11mm probe; CON021 converter; 0~4mm measuring range; analog voltage output; probe temperature -40~180°C.
Functional Features Non-contact displacement measurement. Signal conditioning and cable fault diagnosis by CON021.
Application Scenarios Steam turbine, gas turbine, large compressor and generator vibration monitoring and protection.
Performance Parameters 0~4mm linear range; High frequency response; Built-in cable fault alarm.

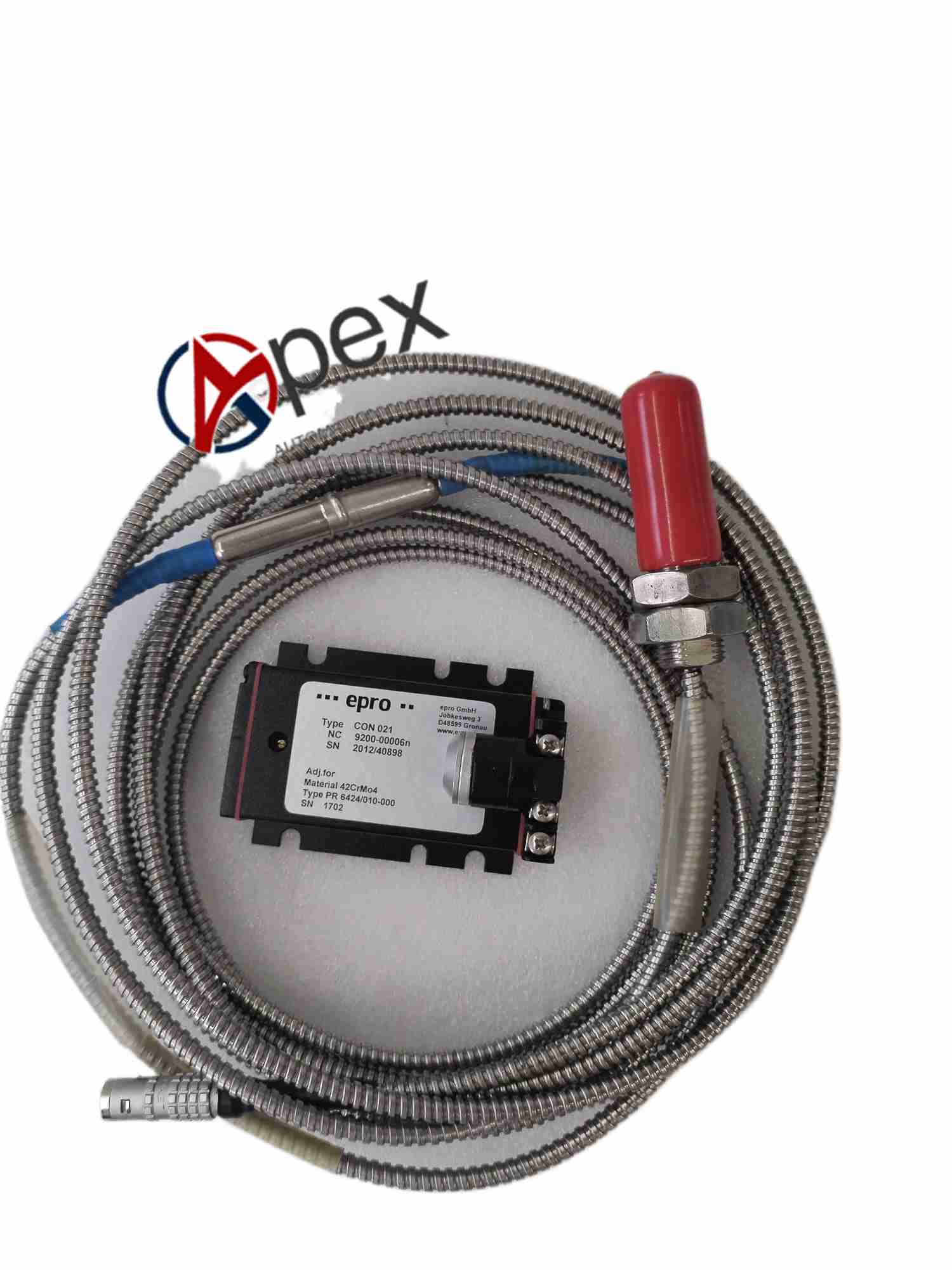

Structural Characteristics Stainless steel probe, coaxial cable, DIN rail CON021 converter with terminal block and LED indicators.
Working Principle High frequency excitation from CON021 drives probe coil. Eddy current on metal shaft changes coil impedance, converted to analog output voltage by converter.
Installation Requirements Mount probe on bracket, adjust air gap. Connect probe cable to CON021 converter, wire power and analog signal.
Usage Notes Keep probe tip away from metal debris. Check cable integrity before power on.
