Technical Specifications 11mm probe; CON021 converter; 0~4mm measuring range; analog voltage output; probe temperature -40~180°C.
Functional Features Wide range eddy current displacement measurement. Converter signal conditioning. Cable break and short circuit diagnostic.
Application Scenarios Steam turbine, gas turbine, large compressor, generator vibration and thrust position monitoring.
Performance Parameters 0~4mm linear measurement range; High frequency response; Fault detection for probe cable.

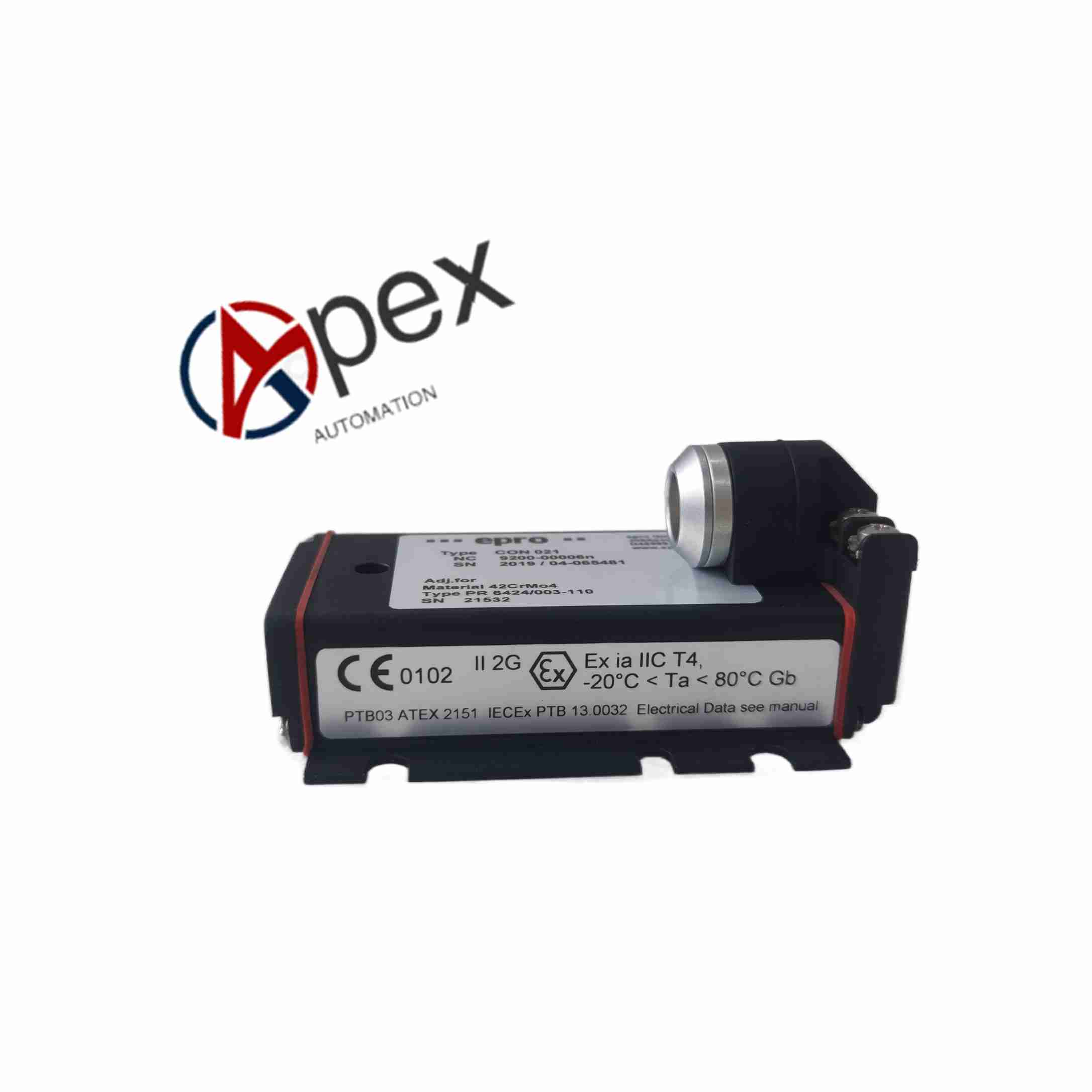

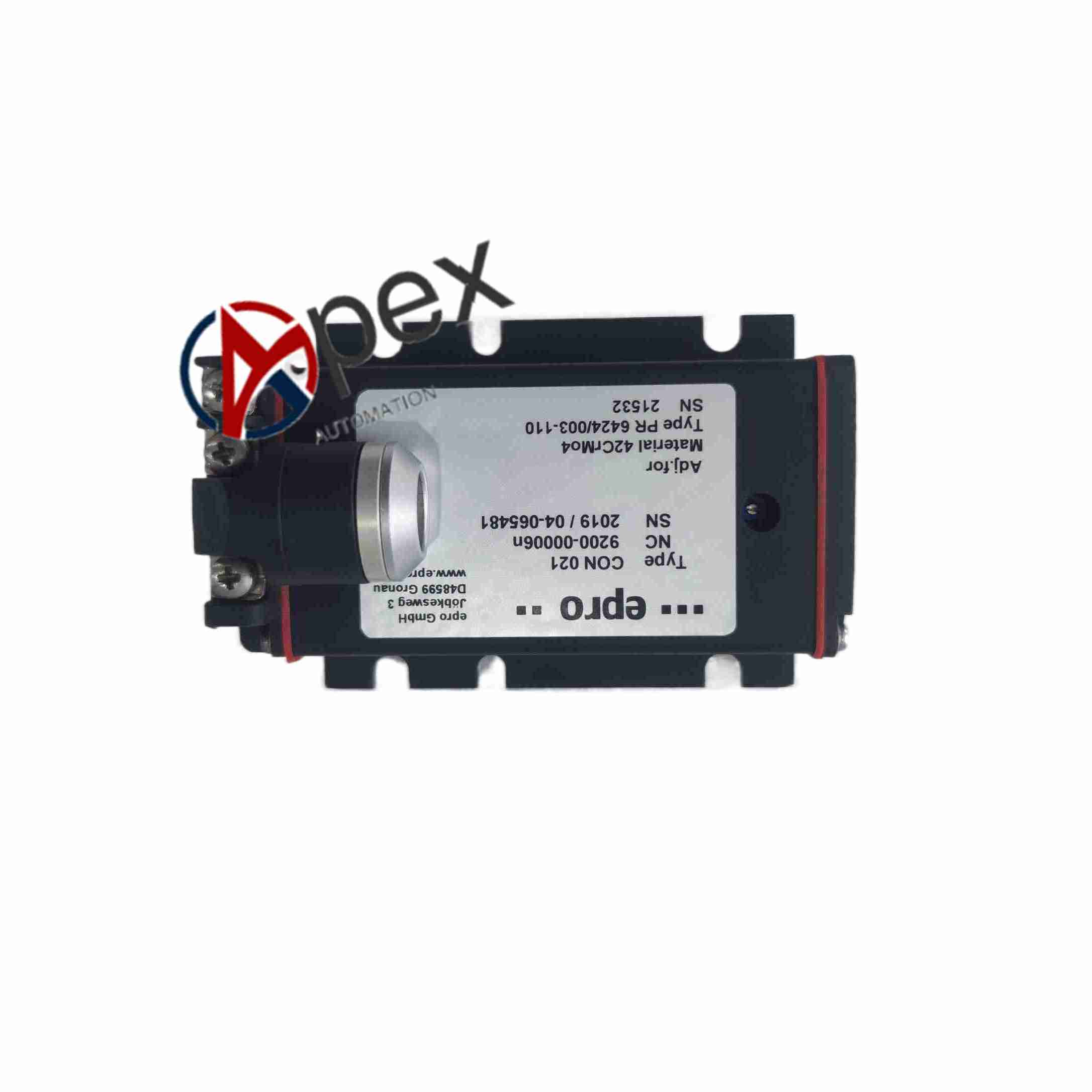

Structural Characteristics Stainless steel probe body, dedicated coaxial cable, DIN rail CON021 converter with terminal block and LED indicators.
Working Principle Probe coil induces eddy current on metal shaft. CON021 supplies excitation signal and converts gap variation into analog voltage for monitoring system.
Installation Requirements Install probe holder and adjust air gap. Connect probe cable to CON021 converter. Wire power and analog output signal.
Usage Notes Probe cable cannot be arbitrarily shortened or extended. Calibrate gap voltage before operation.
