Technical Specifications 11mm eddy current probe; CON021 converter; 0~4mm measuring range; analog voltage output; probe temperature -40~180°C.
Functional Features Non-contact displacement measurement. Larger linear range than 8mm probe. Cable fault detection via converter.
Application Scenarios Large steam turbine, heavy-duty compressor, generator shaft radial vibration and axial thrust position monitoring.
Performance Parameters 0~4mm linear range; High temperature resistance; Stable output for large shaft movement.

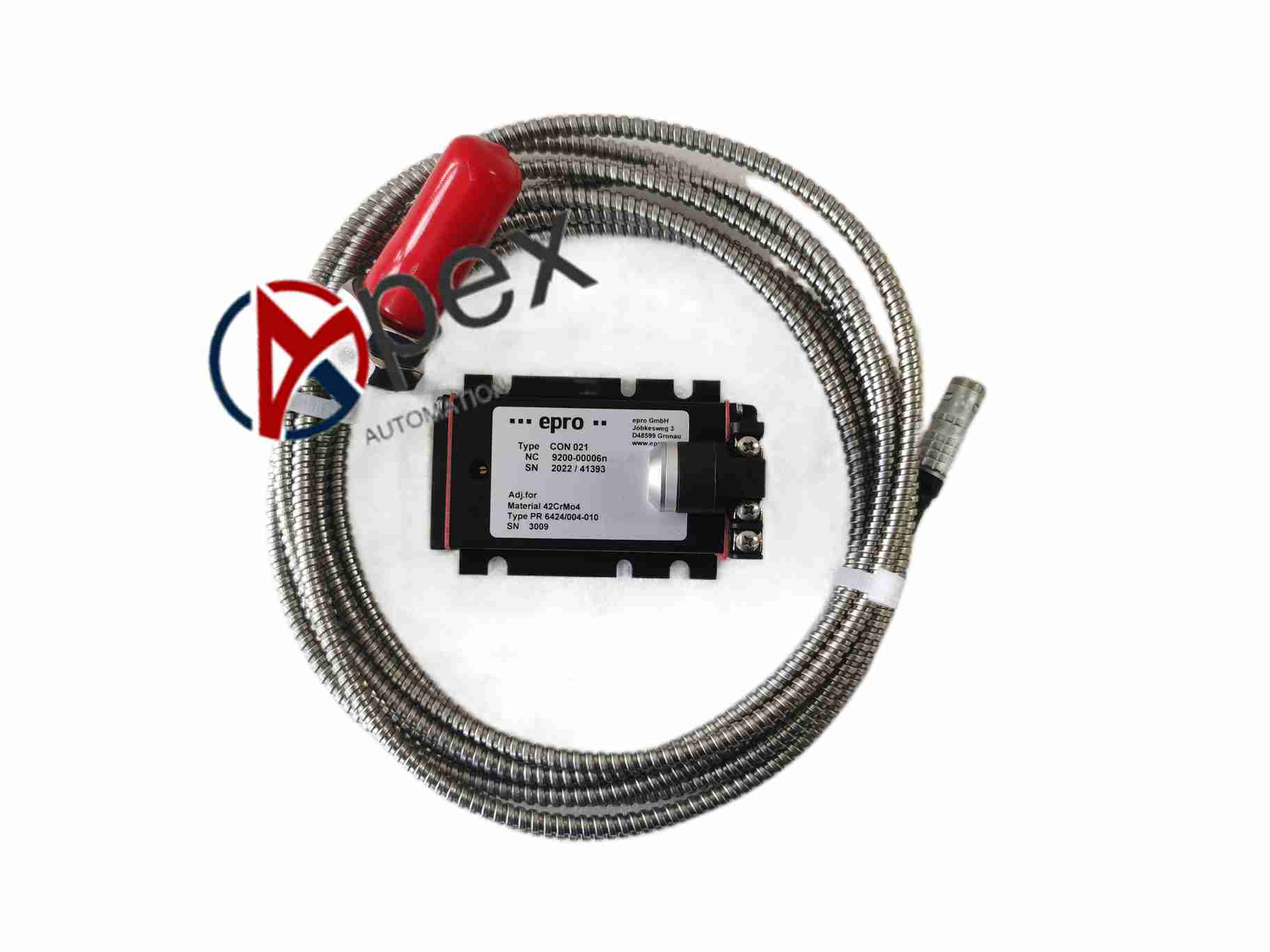

Structural Characteristics 11mm diameter metal probe, coaxial cable, DIN rail CON021 converter with terminals and status LED.
Working Principle Eddy current is induced on shaft surface. The impedance change of probe coil corresponding to gap change is processed by CON021 and converted to analog output voltage.
Installation Requirements Mount probe on bracket, adjust air gap to linear range midpoint. Connect cable to CON021 converter and wire analog output.
Usage Notes Use matched cable length. Verify linear range of this 11mm probe. Check for cable damage.
