Technical Specifications 8mm probe; matched with CON021; 0~2mm measuring range; analog voltage output; probe operating temperature -40~180°C.
Functional Features Eddy current displacement sensing. Converter signal conditioning. Cable break and short circuit fault detection.
Application Scenarios Gas turbine, steam turbine, centrifugal compressor, generator shaft vibration monitoring.
Performance Parameters High linearity; High frequency response; Built-in cable fault diagnosis.

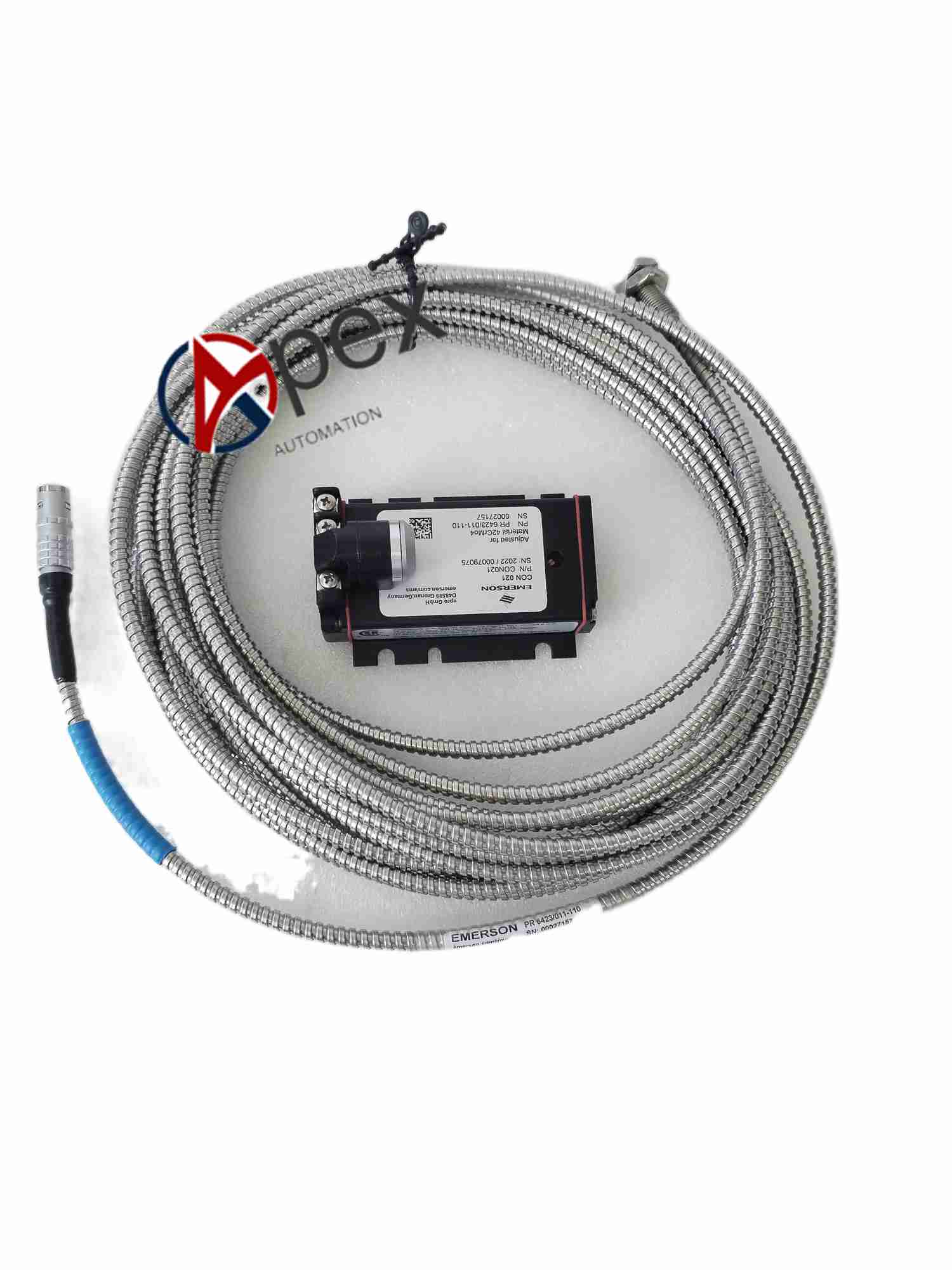

Structural Characteristics Stainless steel probe, fixed length coaxial cable, DIN rail mounted CON021 converter with terminal block and LED.
Working Principle Probe creates eddy current on rotating metal shaft. CON021 converter converts the gap variation into standard analog voltage signal for vibration monitoring module.
Installation Requirements Install probe into mounting bracket, adjust air gap. Connect probe cable to CON021. Wire power and analog output.
Usage Notes Do not cut or replace probe cable arbitrarily. Check gap voltage before machine startup.
