Technical Specifications 16 digital output channels, relay contact output, 24V DC / 120V AC load rating, DeltaV backplane bus interface.
Functional Features Isolated contact output, channel status feedback, short circuit protection, load switching control, fault diagnosis.
Application Scenarios Solenoid valve control, motor starter switching, indicator lamp drive, general industrial on-off control.
Performance Parameters Reliable contact switching, fast response time, high electrical isolation, long contact life.
Material Composition Flame retardant plastic housing, electromechanical relays, copper terminal blocks, gold-plated backplane connector.

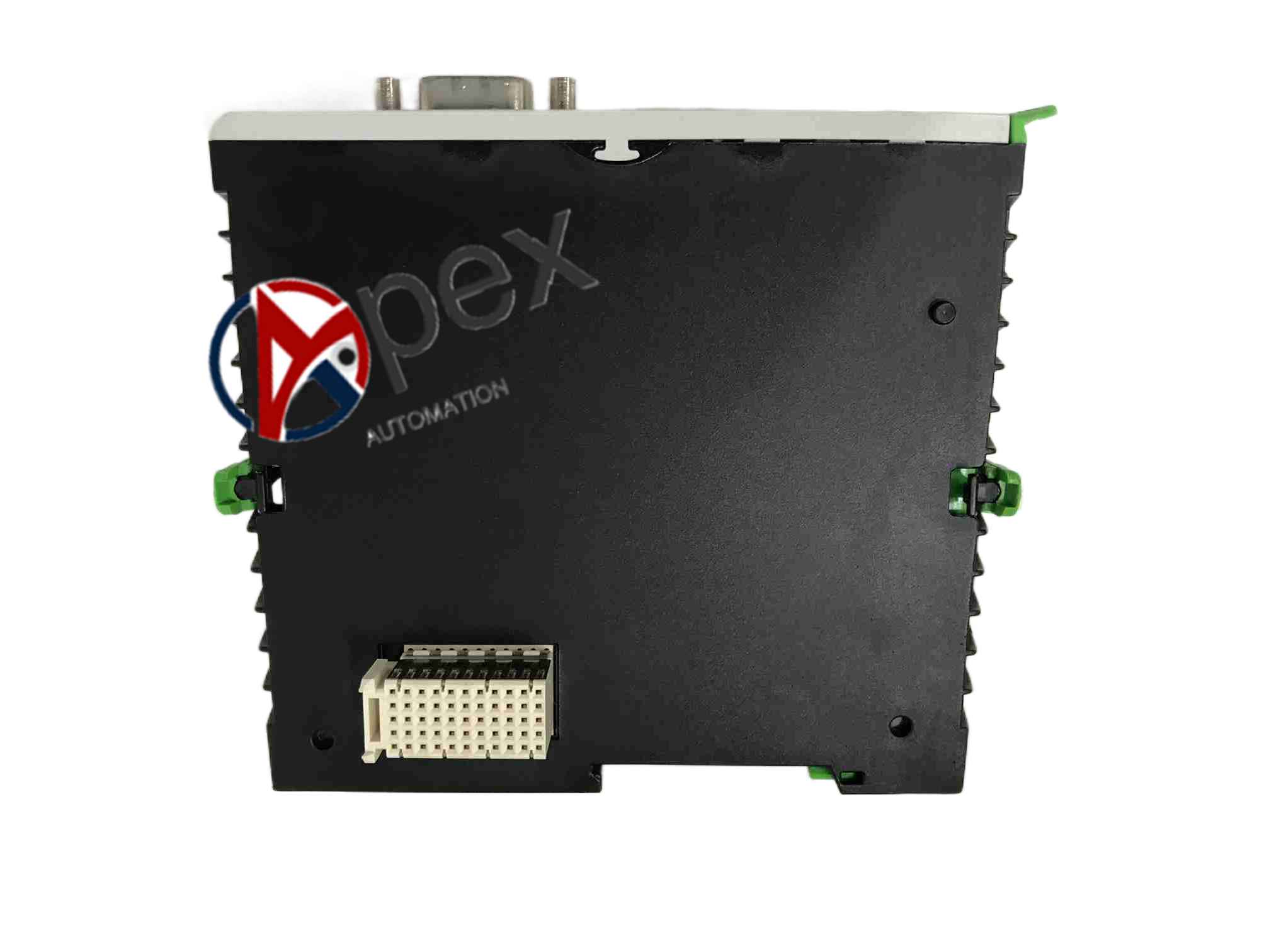

Structural Characteristics Rack plug-in module, front screw terminal block, rear backplane connector, channel status LEDs.
Working Principle Receives on-off commands from DeltaV controller, energizes internal relay coils to switch contact states, controlling power supply to field load devices.
Installation Requirements Insert into DeltaV I/O rack, connect field load wiring to terminal block, verify load voltage and current rating.
Usage Notes Do not exceed rated contact current per channel. Install external fuse for inductive loads. Check contact wear periodically.
