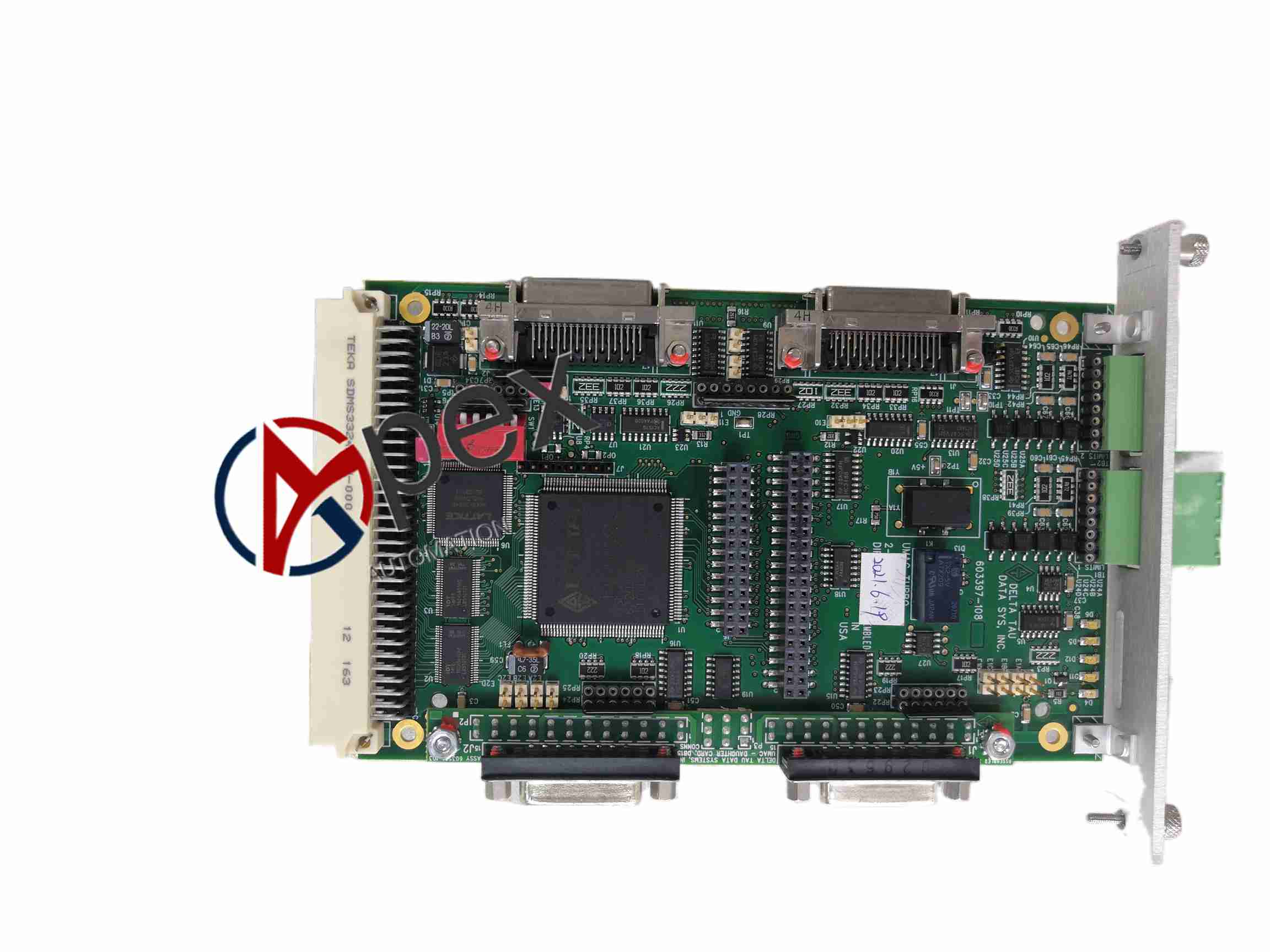

Delta Tau ACC-24E2 2CH 2-Channel Motion Interface Module

Product Brief Introduction The ACC-24E2 2CH is a 2-channel motion control interface module for Delta Tau motion controllers. It provides 2 independent channels of encoder input and servo output for dual-axis motion applications, with high-resolution signal processing for precision motion control.

Tag：

Technical Specifications

Channels: 2 independent motion channels. Encoder input: incremental, TTL/differential. Maximum input rate: 10MHz. Servo output: ±10V analog, 16-bit. Digital I/O: 8 in / 8 out. Power: ±15V DC. Power dissipation: 5W. Operating temperature: 0°C to +60°C.

Functional Features

Two independent motion channels. High-speed encoder input. 16-bit analog servo outputs. Integrated digital I/O. Position capture function. Programmable filters.

Application Scenarios

Dual-axis motion control for machine tools, gantry systems, robots and packaging equipment.

Performance Parameters

Encoder rate: 10MHz. DAC resolution: 16-bit. Position latch: <1µs. Update rate: 50µs. Operating temperature: 0°C to +60°C.

Material Composition

PCB: FR-4. Components: high-speed ICs. Connectors: gold-plated pins.

Structural Characteristics

Standard plug-in card, status LEDs, connectors, backplane interface.

Working Principle

It processes encoder feedback and generates servo control signals for 2 axes, communicating with the main controller over the system backplane.

Installation Requirements

Install in UMAC/PMAC slot. Connect encoders and drives. Configure via software.
