Technical Specifications 4 analog input channels, 4-20mA / 0-10V configurable. Resolution:16bit. Power supply:24V DC. Operating temperature:0~+60°C. Channel isolation.
Functional Features Configurable analog signal type. Over-range detection. Channel galvanic isolation. Self-diagnosis function. LED fault indicator.
Application Scenarios Industrial process control, pressure, temperature and flow measurement in factory automation system.
Performance Parameters Accuracy ±0.15%FS, 16bit resolution. Operating temperature:0~+60°C.

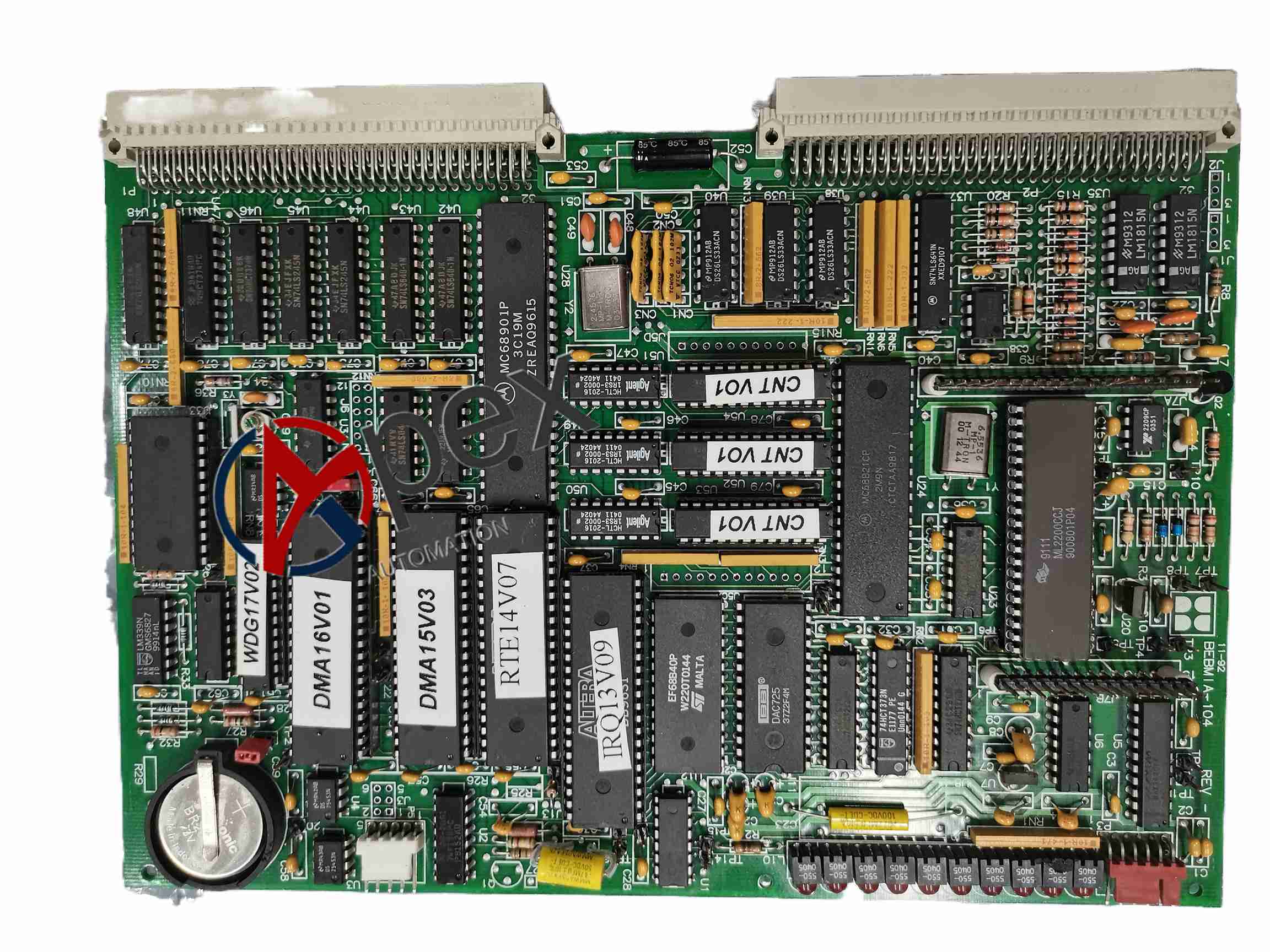

Structural Characteristics Rack plug-in PCB card, front LED indicators, field signal terminal block, backplane connector.
Working Principle Acquire analog voltage or current signal from field sensors, convert analog signal to digital data and send to controller via backplane bus.
Installation Requirements Install in matched control rack. Use shielded twisted pair for analog signal wiring.
Usage Notes Prevent surge voltage on signal line. Do not hot swap module with power applied.
