Technical Specifications Multi-channel digital output, 24V DC, X20 bus interface, short-circuit protection.
Functional Features Digital on-off signal output, channel status feedback, short-circuit and overload protection.
Application Scenarios Packaging machine, conveying equipment, general factory automation.
Performance Parameters Fast output response, built-in channel protection.
Material Composition Plastic housing, output circuit PCB, gold-plated bus connector, terminal blocks.

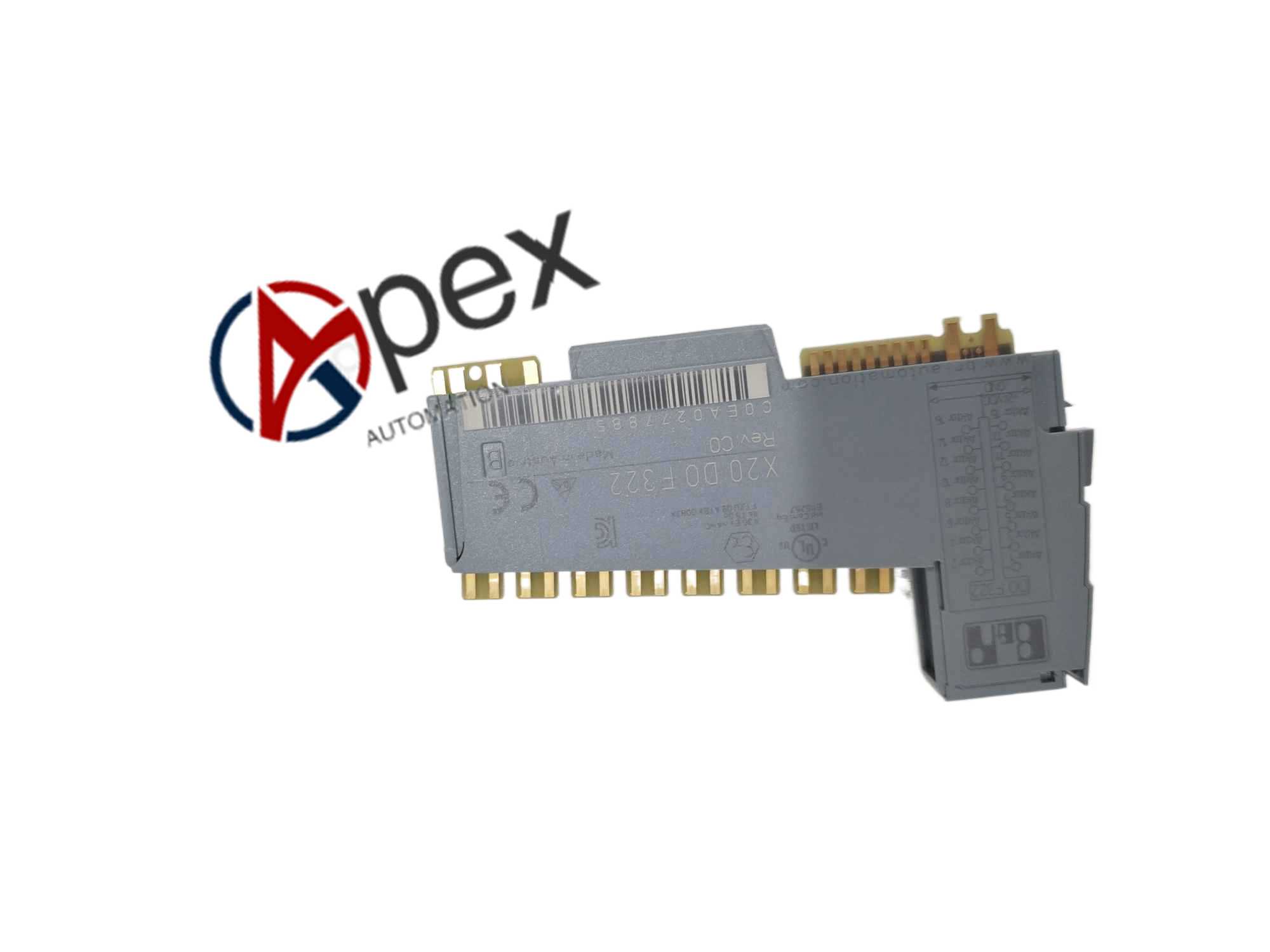

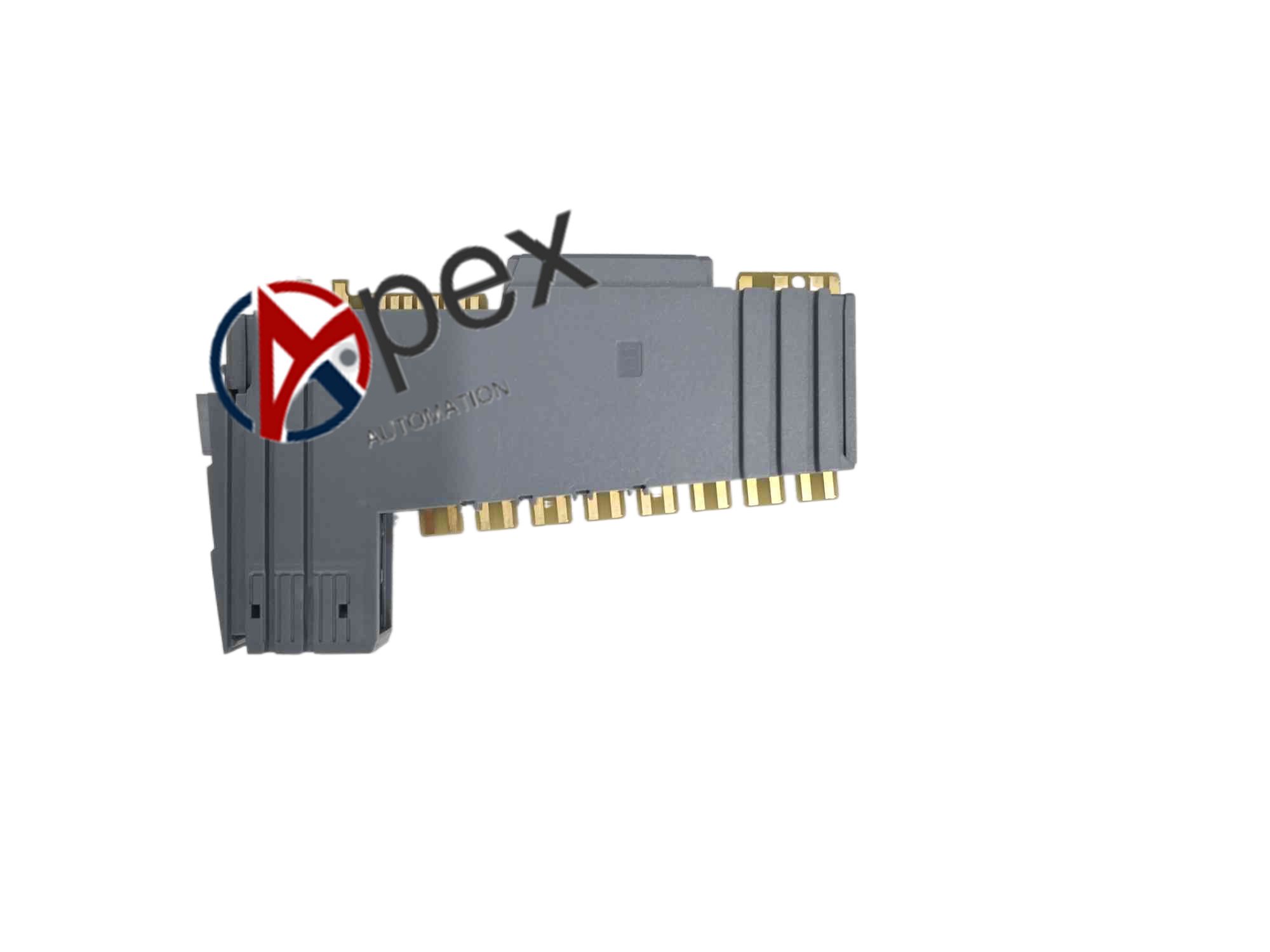

Structural Characteristics X20 modular structure, front wiring terminals, rear X20 bus connector, DIN rail mounting.
Working Principle Receive digital command from X20 CPU via internal bus, switch on/off of output channel to drive field actuators.
Installation Requirements Clip on DIN rail, connect X20 bus, wire field actuator to terminal block.
Usage Notes Do not exceed rated load per channel. Check short circuit protection function.
