Technical Specifications Digital motion control, power stage, encoder feedback interface, digital I/O and analog command input, 3-phase AC input.
Functional Features Current, speed and position closed-loop control, overload, overvoltage, overheat protection, fault indication.
Application Scenarios Plastic machinery, textile machines, automated conveyor and handling equipment.
Performance Parameters Stable operation under medium dynamic load, built-in fault diagnosis code for maintenance.

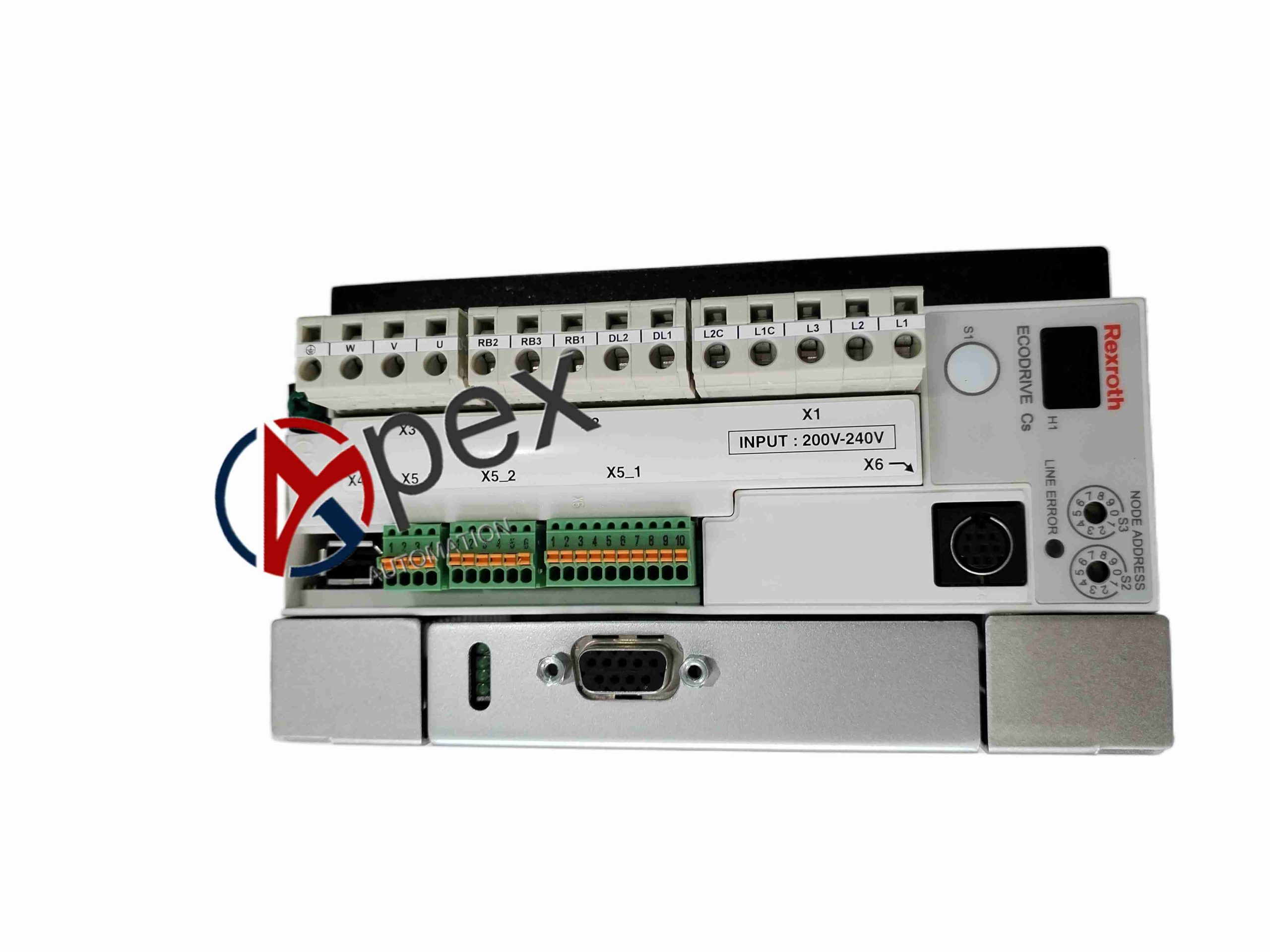

Structural Characteristics Cabinet installation servo drive, metal heat dissipation housing, power and feedback connectors.
Working Principle Receives motion instruction from upper controller, collects motor position feedback, adjusts output current to drive servo motor.
Installation Requirements Install inside control cabinet, ensure good ventilation, use shielded encoder cable.
Usage Notes High voltage hazard inside. Disconnect power and wait for capacitor discharge before maintenance.
