Technical Specifications Integrated power stage and digital control unit, encoder feedback interface, analog and digital command input, 3-phase power input.
Functional Features Three closed-loop control of current, speed and position, motor overcurrent and overvoltage protection, fault diagnosis.
Application Scenarios Machine tools, handling robots, automation machinery, packaging lines.
Performance Parameters High dynamic performance, low speed smooth operation, built-in fault code indication.

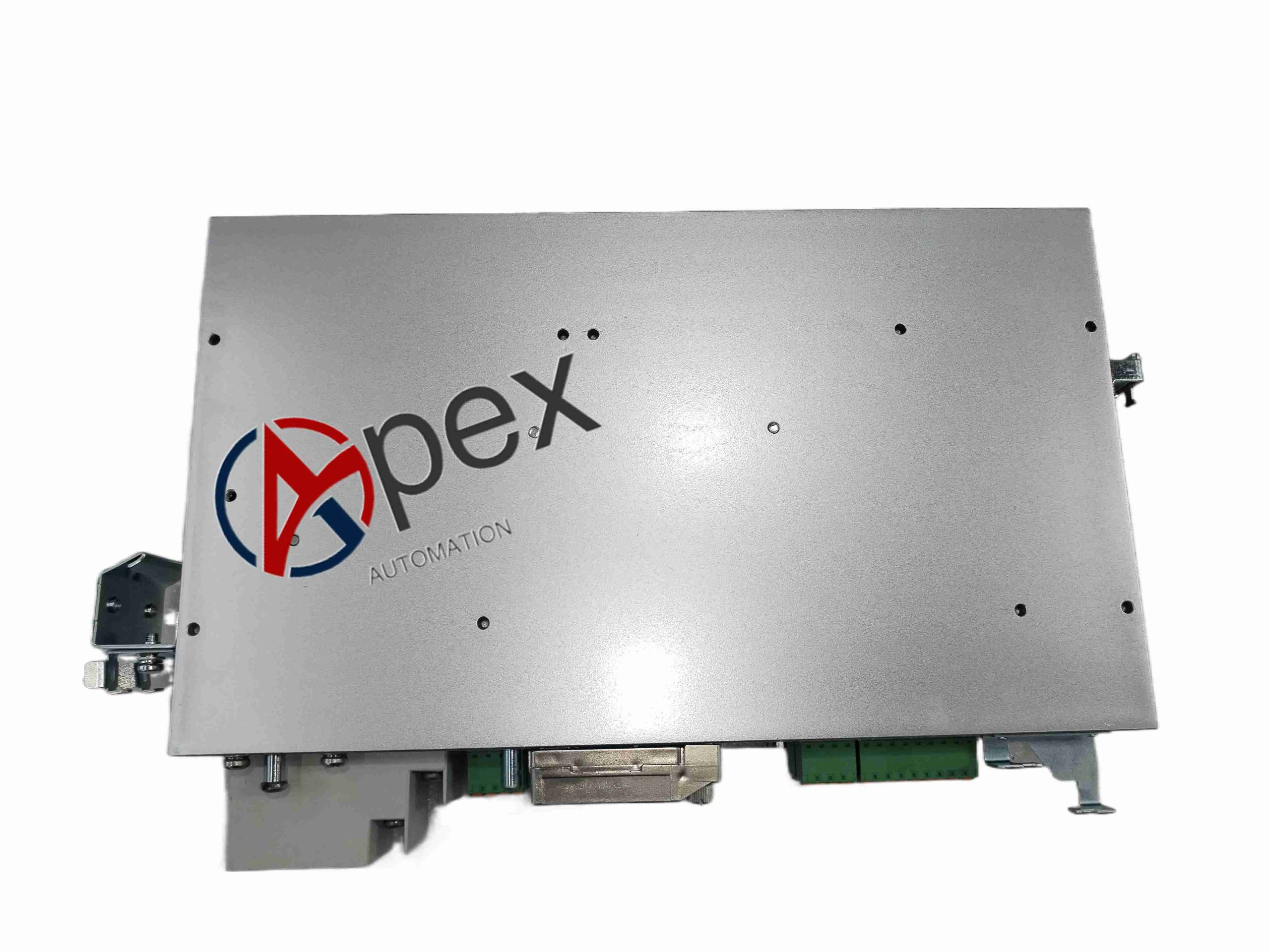

Structural Characteristics Compact cabinet-mounted servo drive, metal housing, power connector and feedback signal connector.
Working Principle Receives motion command from upper PLC, compares with motor encoder feedback, outputs adjustable three-phase current to drive servo motor.
Installation Requirements Install inside control cabinet, use shielded encoder cable, comply with EMC wiring requirements.
Usage Notes Dangerous high voltage remains after power off. Allow enough discharge time before opening the unit.
