Technical Specifications 25MHz main CPU, battery-backed SRAM storage, multi-tasking operation, serial communication ports, compatible with DDS drive rack. Operating temperature:0°C ~ +55°C.
Functional Features Multi-axis interpolation and coordinated motion control. Multi-task program execution. Fault diagnosis and error code display. Serial communication with host computer. Motion program storage and retention by battery backup.
Application Scenarios Machine tools, printing machinery, packaging equipment, and special industrial automation production lines requiring precise multi-axis motion synchronization.
Performance Parameters High-speed motion interpolation, stable multi-task scheduling, battery backup for data retention. Operating temperature:0~+55°C.

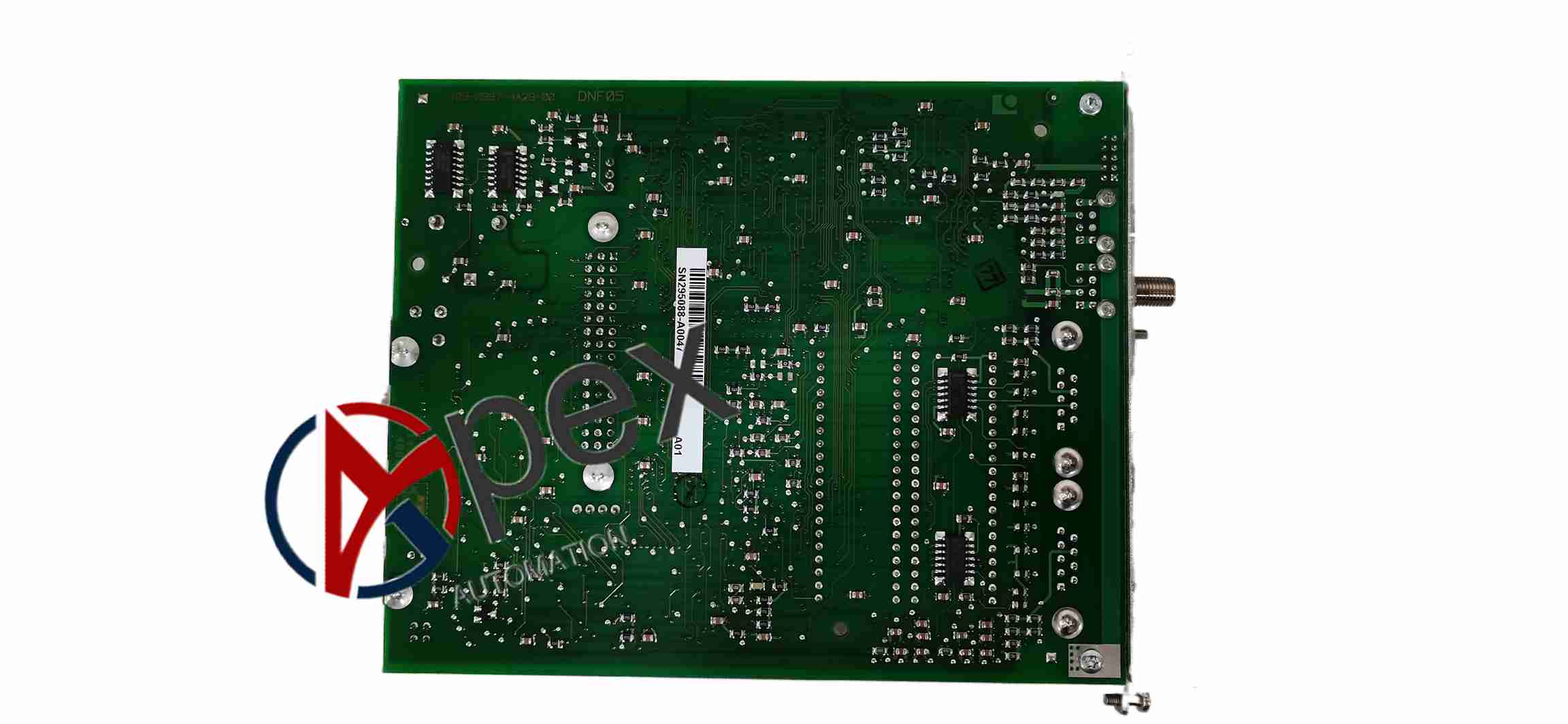

Structural Characteristics Rack plug-in circuit board, front panel LED status indicator, communication connectors, internal CPU and memory circuit.
Working Principle Receive motion command from host system, execute trajectory interpolation algorithm, send position and speed instruction to servo drives, collect axis feedback signals and complete closed-loop motion control.
Installation Requirements Insert into dedicated DDS rack slot. Connect serial communication cables and 24V DC logic power. Download motion control program via configuration software.
Usage Notes Do not plug or unplug the module under power. Check battery status regularly to prevent program loss.
