Technical Specifications Power supply: 24V DC. Input: eddy current probe signal. Measuring range: 0~100μm. Operating temperature: 0~+60°C.
Functional Features Shaft vibration and axial displacement measurement. Signal conditioning for proximity probes. Alarm and trip threshold setting. Self-diagnosis for probe and cable fault. LED status indication.
Application Scenarios Steam turbine, centrifugal compressor, large generator, high-speed rotating equipment online condition monitoring.
Performance Parameters Measurement accuracy ±1%FS. Response time <10ms. Operating temperature:0~+60°C.

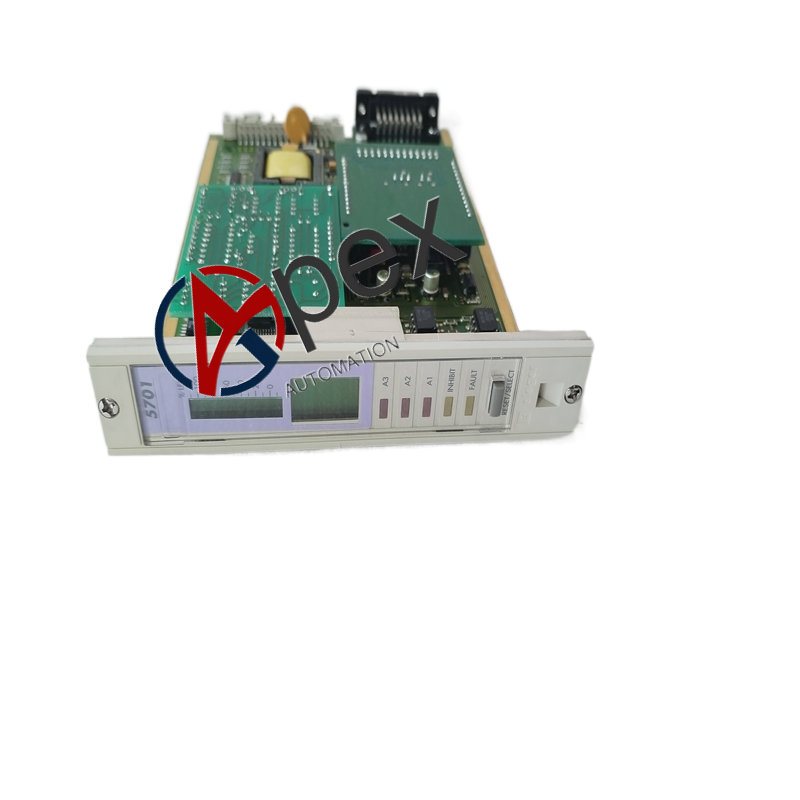

Structural Characteristics Rack plug-in module, front panel LED indicators, probe signal terminal block, backplane connector.
Working Principle Receive eddy current signal from proximity probe, condition and convert signal to digital value, compare measured value with preset alarm/trip limits and send data to monitoring system.
Installation Requirements Install in Bently Nevada monitoring rack. Use matched Bently proximity probe and extension cable. Complete system grounding.
Usage Notes Keep probe cable away from high power cables. Perform calibration after installation. Do not hot swap under running machine protection.
