Technical Specifications 24V DC power supply. Analog signal input for vibration sensors. Signal conditioning and amplification. Galvanic signal isolation. Operating temperature: 0°C ~ +60°C.
Functional Features Vibration signal conditioning. Amplitude measurement. Signal fault detection including sensor break and short circuit. Status LED indicators. Analog output for host system connection.
Application Scenarios Power plant steam turbine, oil & gas centrifugal compressor, refinery pump, large rotating equipment online condition monitoring.
Performance Parameters High signal measurement accuracy, built-in noise filtering. Operating temperature:0~+60°C.

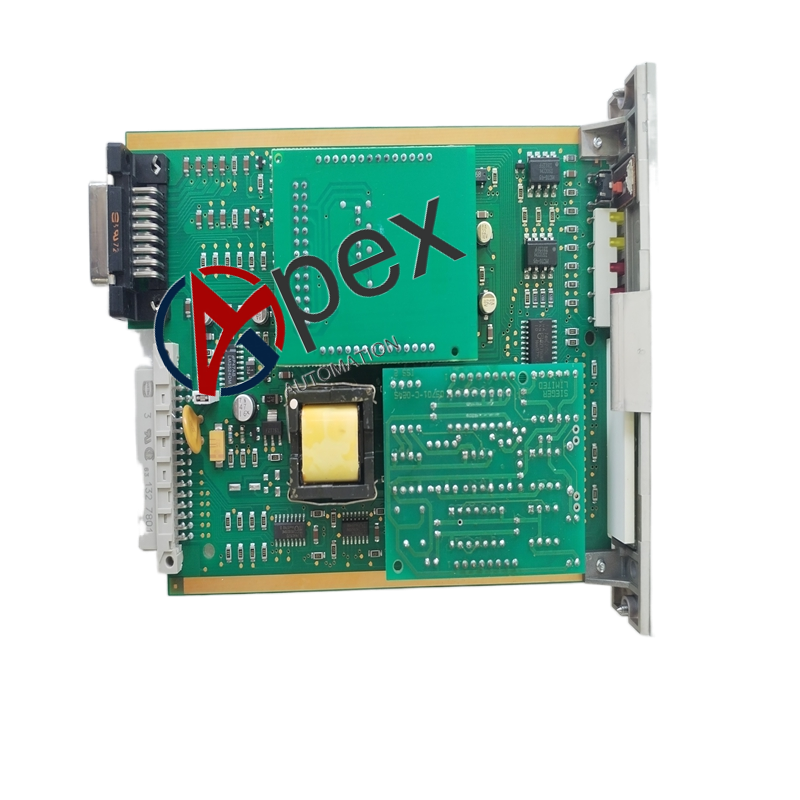

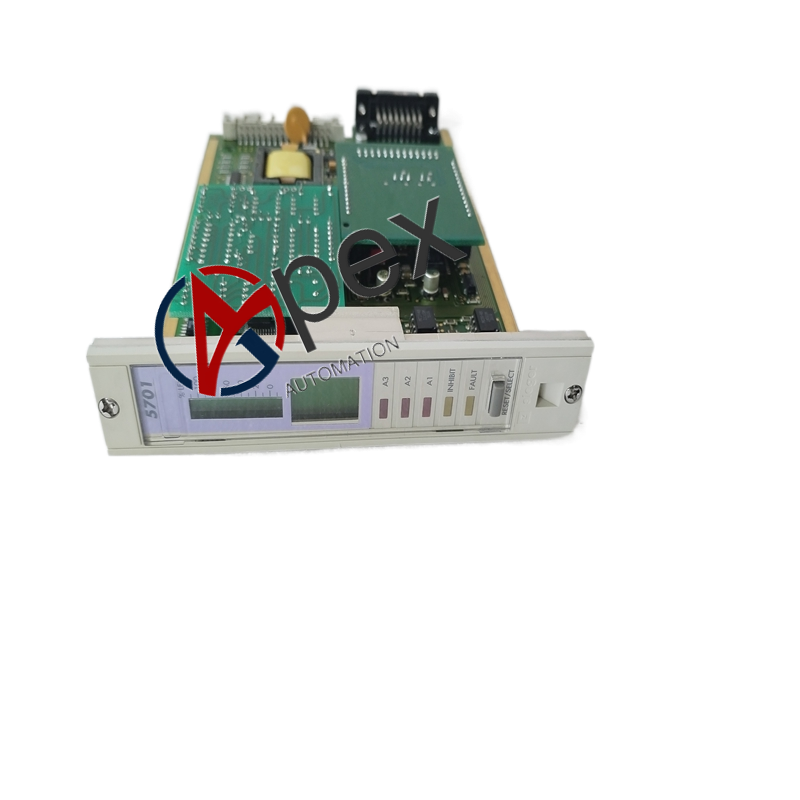

Structural Characteristics Rack mount module, front terminal block for sensor wiring, backplane connector, onboard signal conditioning circuit.
Working Principle Receive raw signal from proximity probes or vibration transducers, amplify and filter the signal, convert into standard analog value, then transmit measurement data to monitoring host for machinery protection and alarm.
Installation Requirements Install into Bently Nevada monitoring rack. Use shielded dedicated sensor cable. Set measurement range via configuration software.
Usage Notes Use original matched probes and extension cables. Check cable insulation regularly to avoid signal interference.
