Technical Specifications Ethernet and serial communication interfaces; supports Modbus TCP/IP and Modbus RTU protocols; 24V DC power supply; 10/100 Mbps Ethernet rate; operating temperature 0°C to +65°C; rack plug-in design.
Functional Features Multi-protocol communication; system data upload; remote configuration; fault diagnosis communication; redundant communication support.
Application Scenarios Machinery monitoring system integration, DCS and SCADA system interfacing, remote equipment monitoring, plant asset management system.
Performance Parameters Stable data transmission; fast communication response; high compatibility with mainstream control systems; continuous operation capability.
Material Composition Metal shielding housing, communication processor circuit board, gold-plated connectors, industrial-grade electronic components.

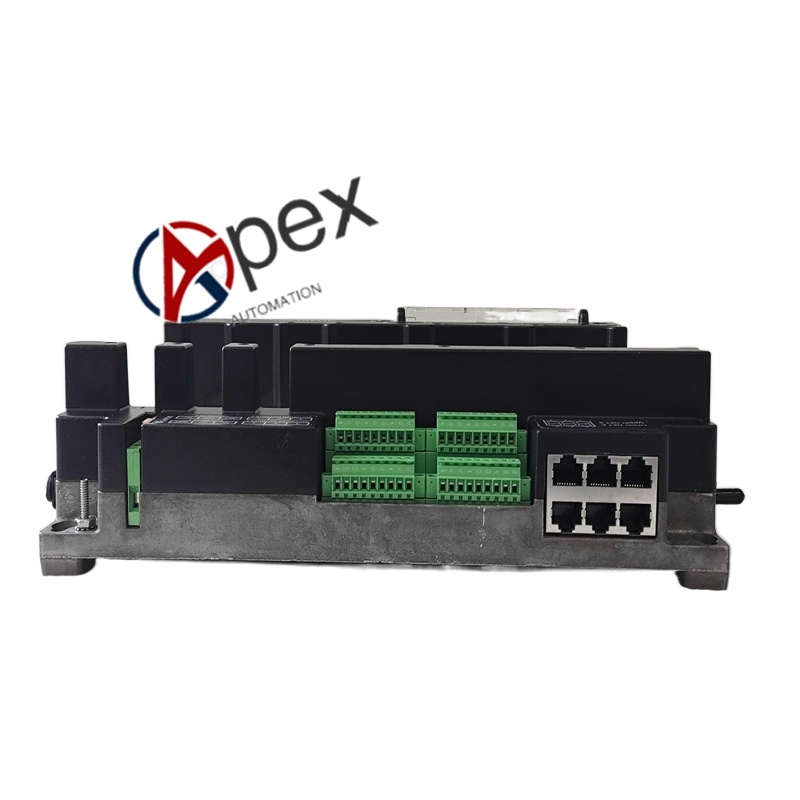

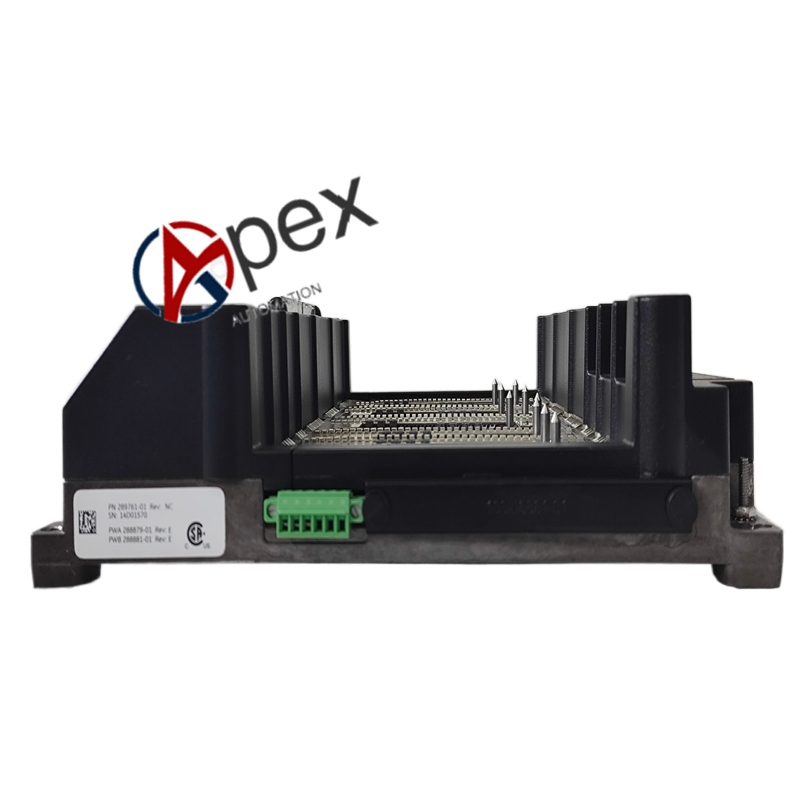

Structural Characteristics Standard rack plug-in card, front communication ports and status LEDs, rear backplane system interface.
Working Principle Collects measurement and status data from all functional modules via the system backplane, converts data into standard communication protocols, and transmits data to upper-level control and monitoring systems.
Installation Requirements Install in AMS 6500 system communication slot; connect Ethernet and serial communication cables; configure network parameters via system software; implement network security settings.
Usage Notes Follow industrial cybersecurity specifications for network configuration; perform regular communication integrity checks; backup communication parameters after modification.
