Technical Specifications 2 independent seismic sensor input channels; compatible with electro-dynamic seismic sensors; 0-100 mm/s RMS adjustable measuring range; 3U 1-slot plug-in form factor; API 670 compliant hot-swappable design; operating temperature -20°C to +65°C.
Functional Features Dual-channel seismic vibration measurement; adjustable measurement range; RMS and peak value calculation; sensor fault self-diagnosis; hot swap support.
Application Scenarios Turbine housing vibration monitoring, generator structural vibration measurement, large rotating machinery enclosure seismic monitoring, power plant equipment condition monitoring.
Performance Parameters High measurement linearity; low frequency response capability; stable measurement under harsh conditions; hot swap without system interruption.
Material Composition Metal shielding chassis, precision analog front-end circuit, digital signal processor, gold-plated backplane connector.

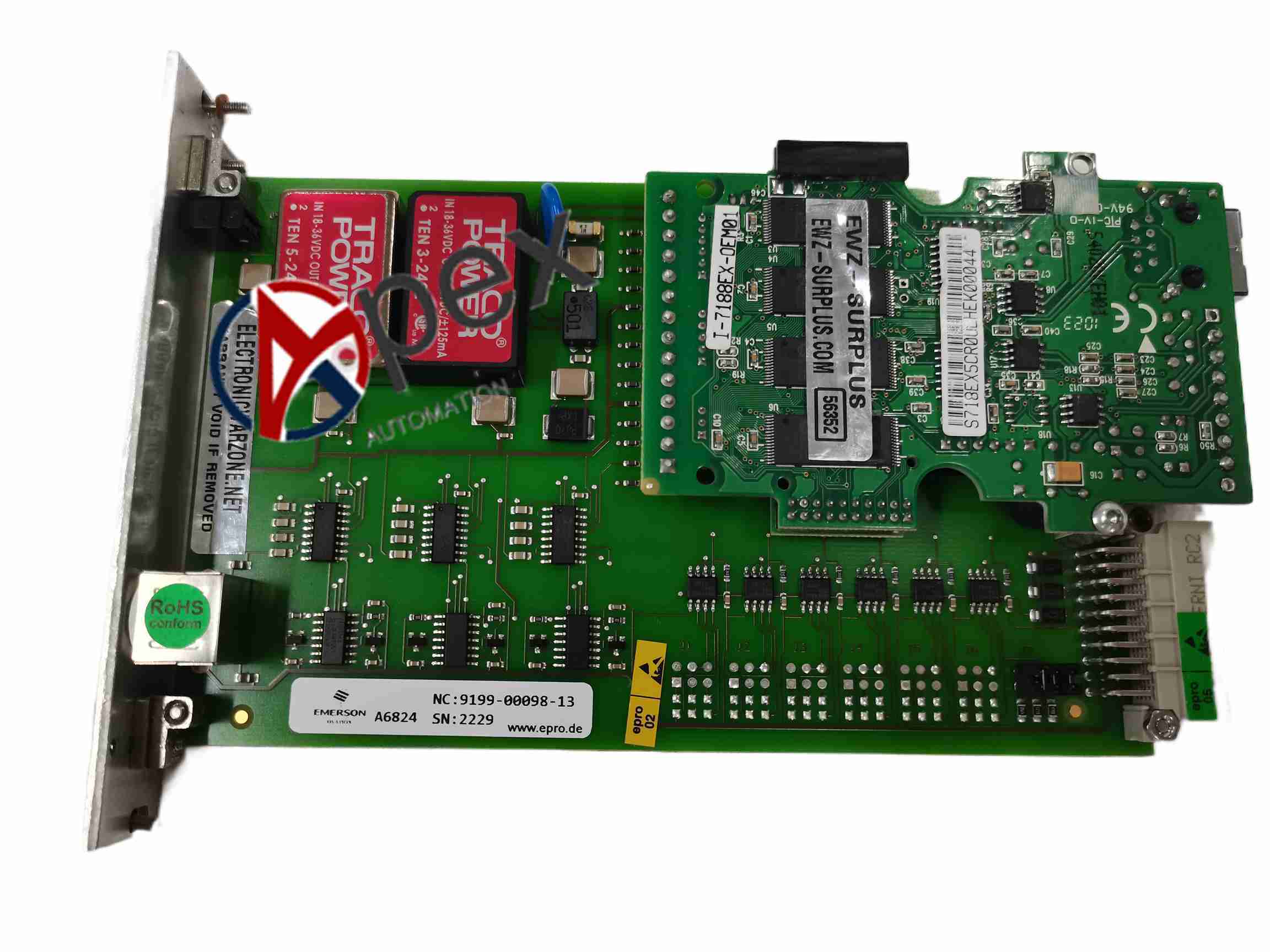

Structural Characteristics 3U rack plug-in card structure, front panel status indicators, rear backplane bus interface, sensor input terminals.
Working Principle Acquires low-frequency seismic vibration signals from enclosure-mounted sensors, processes and calculates vibration parameters, transmits measurement data to the system controller via backplane bus for machinery health analysis.
Installation Requirements Insert into CSI 6500 system rack slot; connect seismic sensor cables; configure measurement parameters via system software; verify hot swap function before operation.
Usage Notes Follow API 670 installation standards; calibrate sensor matching during commissioning; avoid strong electromagnetic interference near module.
