Technical Specifications 1 independent vibration measurement channel; compatible with eddy-current, piezoelectric velocity and acceleration sensors; 4-20mA analog output; RS-485 communication interface; operating temperature range -40°C to +85°C; 24V DC power supply.
Functional Features Vibration signal conditioning; RMS and peak value calculation; threshold alarm output; sensor fault detection; 4-20mA process output.
Application Scenarios Pump, fan, motor and compressor condition monitoring, small rotating machinery protection, industrial equipment predictive maintenance.
Performance Parameters High measurement accuracy; stable signal processing; fast alarm response; reliable operation in harsh industrial environments.
Material Composition Metal shielding housing, precision signal processing circuit board, industrial grade electronic components, gold-plated connection terminals.

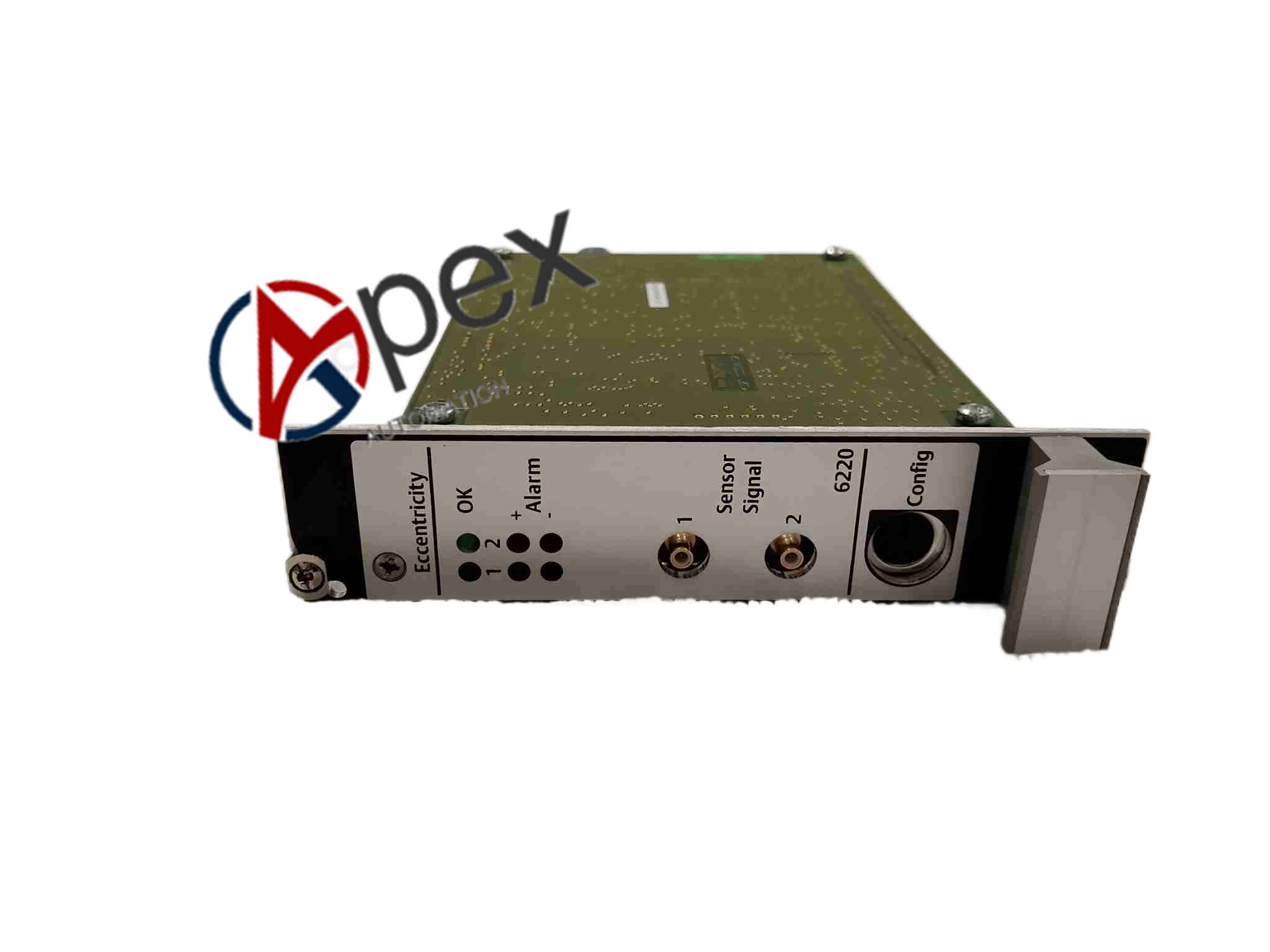

Structural Characteristics Compact rack plug-in module, front status and alarm LEDs, rear sensor and communication terminals, standard rack mounting.
Working Principle Receives raw vibration signals from field sensors, performs signal conditioning and parameter calculation, compares measured values against preset thresholds, and outputs alarm and analog signals for system monitoring and protection.
Installation Requirements Install in designated MMS 6000 system rack slot; connect shielded sensor cable; configure alarm thresholds via configuration software; implement system grounding.
Usage Notes Calibrate measurement channel during commissioning; keep sensor cables away from high-power equipment; perform periodic sensor integrity checks.
